Manufacturer: Ameri Seiki
Model: S-36L
Year: 2018
Swing: 30.7
Chuck: 18
Bar Capacity: 4.6
Centers: 49.2
Stock # 2403B
Price: $89,500 USD
1 / 10
Click to zoom in
1 / 10
For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Louisville, KY
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$89,500 USD
Finance for as low as $1,815/mth
Description
Description:

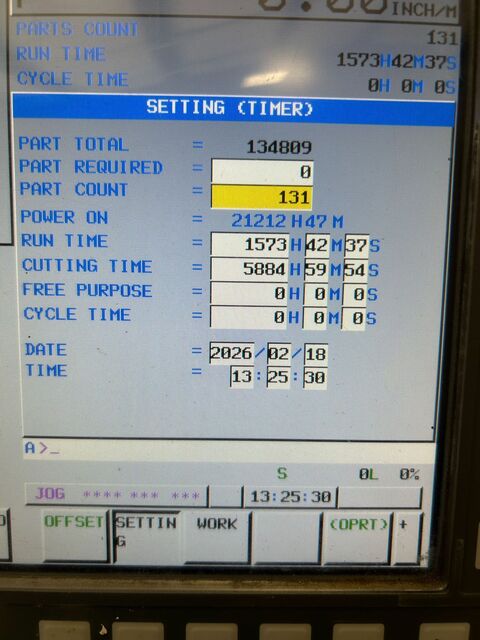

New 2018 with less than 6000 hours.
Spec Sheet:

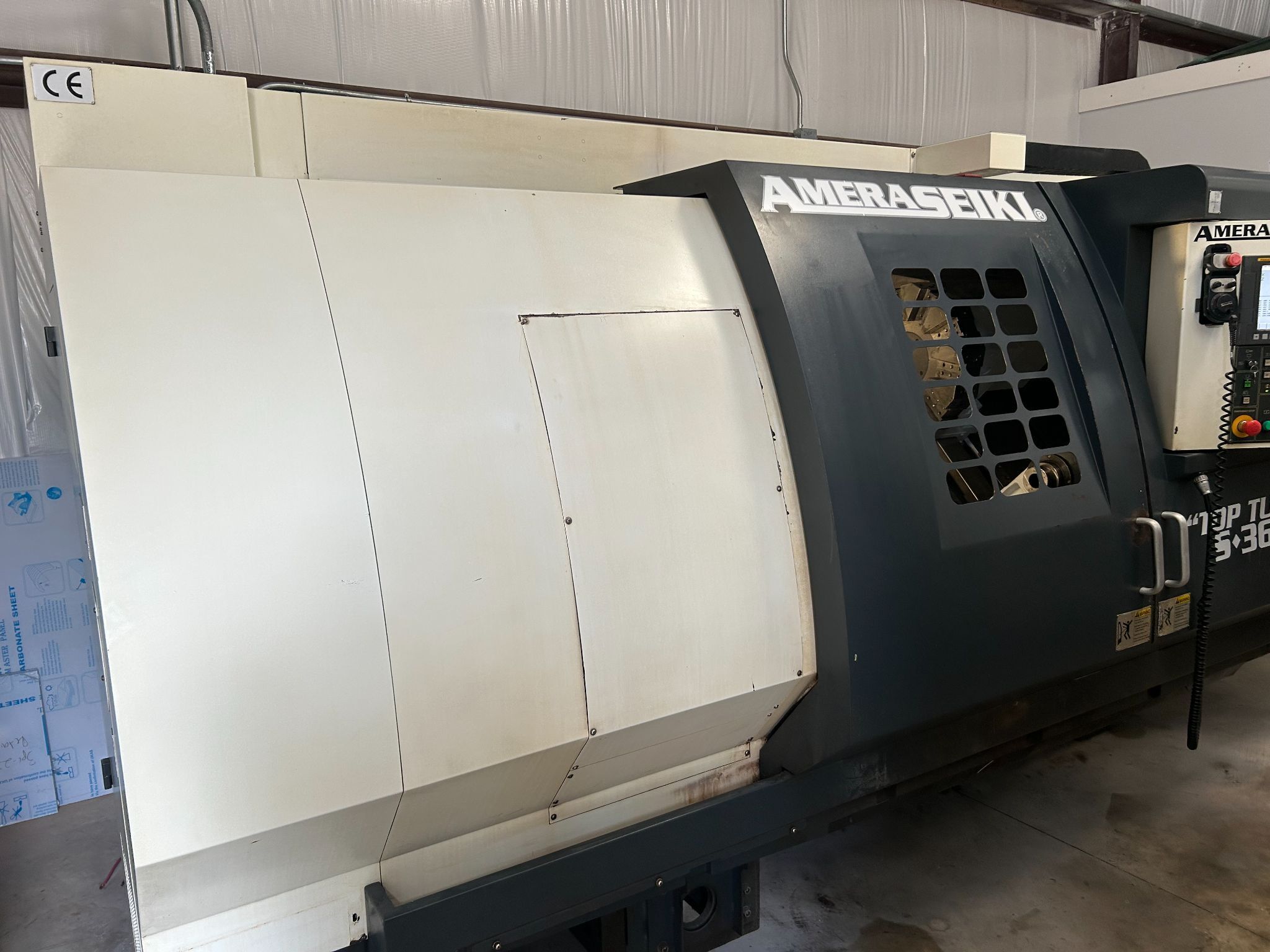

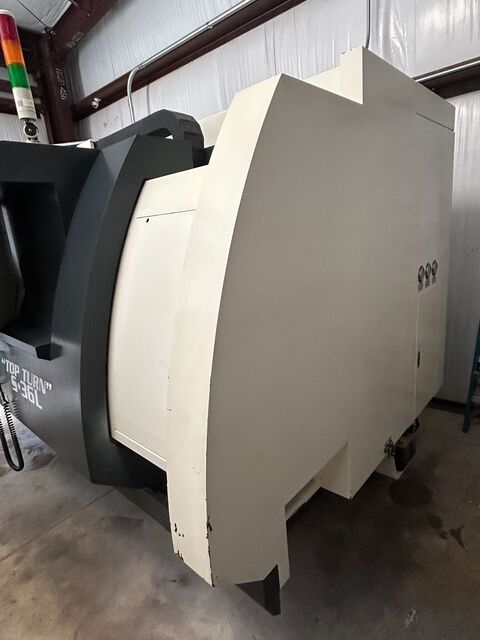

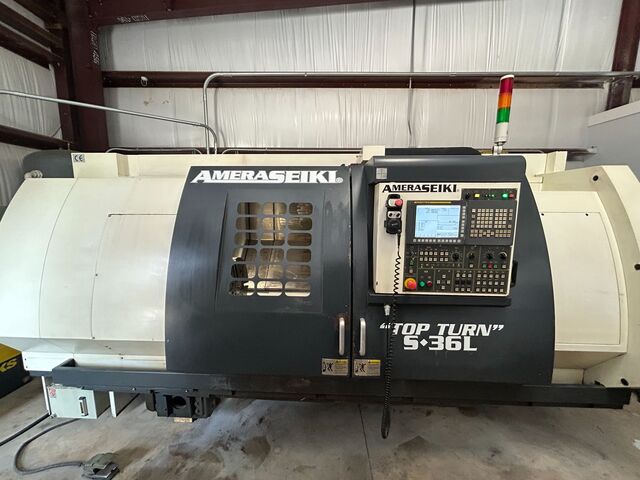

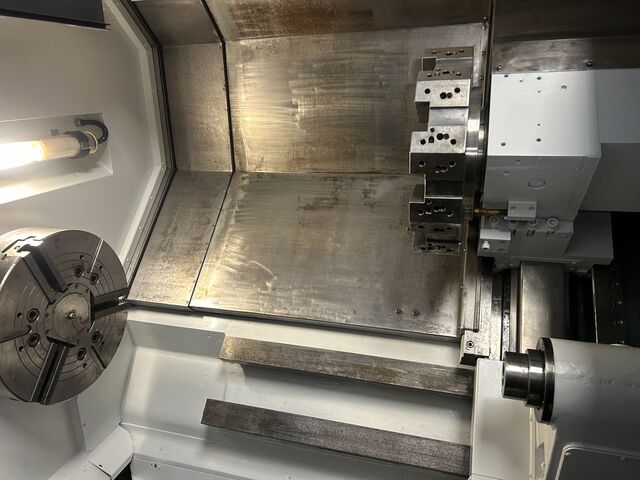

2018 Ameri Seiki "Top Turn" S-36L CNC Lathe w/Fanuc 0i-TF Control
Capacity
Swing Over Bed mm (in): 780 (30.7)
Max Turning Diameter mm (in): 500 (19.6)
Max Turning Length mm (in): 1200 (47.2)
Distance Between Centers mm (in): 1250 (49.2)
Chuck Diameter: 18
Spindle
Spindle Speed rpm: 1200
Main Spindle Motor kw (hp): 22/26 (30/35)
Spindle Nose: A2-11
Spindle Bore mm (in): 165 (6)
Bar Capacity mm (in): 117 (4.6)

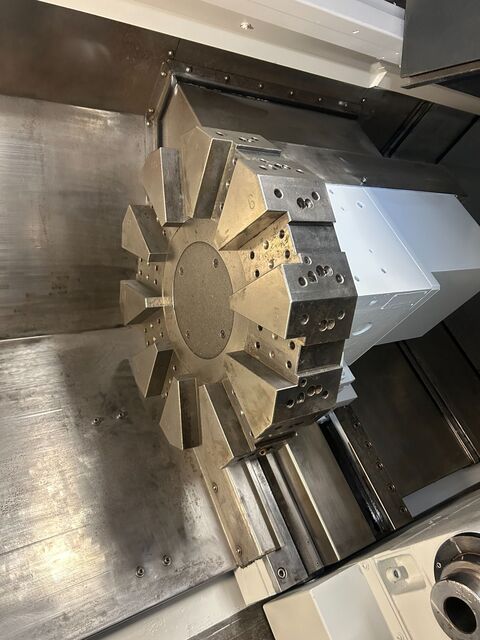

Turret
Type: Servo
Number of Tools #: 10
Tool Height (Square Tool) mm (in): 32 (1.25)
X-Axis
Type Box Way
Travel mm (in) 275(+30) (12)
Rapid Traverse m/min (ipm): 24 (945)
Ball Screw Diameter mm (in): 40 (1.57) P10
Z-Axis
Type: Box Way
Travel mm (in): 1350 (53.1)
Rapid Traverse m/min (ipm): 20 (787)
Ball Screw Diameter mm (in): 50 (2) P10
Hydraulic System
Tank Capacity liter (gal): 60 (15.9g)
Hydraulic Pump motor kw (hp): 2.3 (3)
Coolant System
Tank Capacity liter (gal): 250 (66g)
Coolant Pressure psi: 44

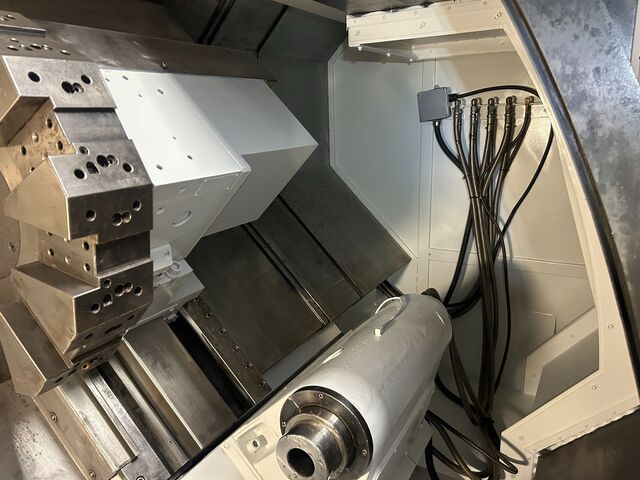

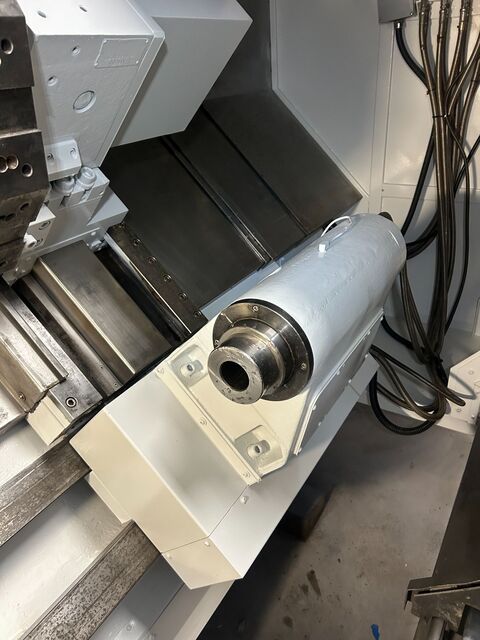

Tailstock
Tailstock Body Movement mm (in): Hydraulic
Quill Diameter mm (in): 110 (4.33")
Quill Travel mm (in) 100 (3.9")
Quill Taper MT #5
Positioning Accuracy: X: 0.025mm/300mm, Z: 0.06mm/300mm
Repeatability Accuracy: X: 0.015mm, Z: 0.025mm
C Axis Positioning: Accuracy 63 arc sec
New 2018 with less than 6000 hours.
Spec Sheet:
2018 Ameri Seiki "Top Turn" S-36L CNC Lathe w/Fanuc 0i-TF Control
Capacity
Swing Over Bed mm (in): 780 (30.7)
Max Turning Diameter mm (in): 500 (19.6)
Max Turning Length mm (in): 1200 (47.2)
Distance Between Centers mm (in): 1250 (49.2)
Chuck Diameter: 18
Spindle
Spindle Speed rpm: 1200
Main Spindle Motor kw (hp): 22/26 (30/35)
Spindle Nose: A2-11
Spindle Bore mm (in): 165 (6)
Bar Capacity mm (in): 117 (4.6)
Turret
Type: Servo
Number of Tools #: 10
Tool Height (Square Tool) mm (in): 32 (1.25)
X-Axis
Type Box Way
Travel mm (in) 275(+30) (12)
Rapid Traverse m/min (ipm): 24 (945)
Ball Screw Diameter mm (in): 40 (1.57) P10
Z-Axis
Type: Box Way
Travel mm (in): 1350 (53.1)
Rapid Traverse m/min (ipm): 20 (787)
Ball Screw Diameter mm (in): 50 (2) P10
Hydraulic System
Tank Capacity liter (gal): 60 (15.9g)
Hydraulic Pump motor kw (hp): 2.3 (3)
Coolant System
Tank Capacity liter (gal): 250 (66g)
Coolant Pressure psi: 44
Tailstock
Tailstock Body Movement mm (in): Hydraulic
Quill Diameter mm (in): 110 (4.33")
Quill Travel mm (in) 100 (3.9")
Quill Taper MT #5
Positioning Accuracy: X: 0.025mm/300mm, Z: 0.06mm/300mm
Repeatability Accuracy: X: 0.015mm, Z: 0.025mm
C Axis Positioning: Accuracy 63 arc sec
Inquire Further with Machinery Central!
