For Sale by National Machinery Exchange
Surplus Record Dealer Since 1939
Location: Newark, NJ
Contact Sales / Andreia
Phone Number: 973...> Show Phone Number 973-358-7208
Let the seller know you found their listing on Surplus Record!
Description

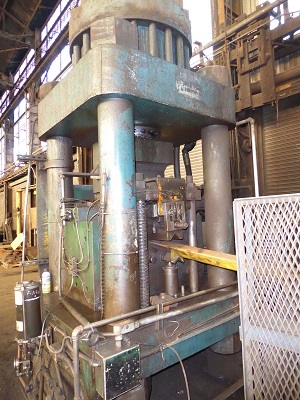

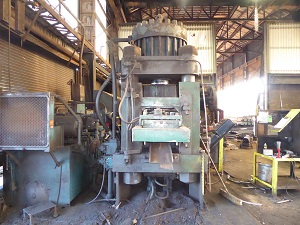

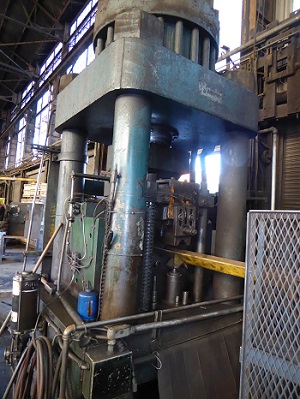

1000 TON AMD MDL #1000-3030 BAR SHEAR W/ ENTRY TABLE
MANUFACTURER - ADVANCED MACHINE DESIGN COMPANY
MODEL - 1000-3030
MACHINE NUMBER - 7412
TONNAGE - 1000
ROUND CAPACITY - 7 1/8" (1020 STEEL)
SQUARE CAPACITY - 6 1/4" (1020 STEEL)
ROUND CAPACITY - 5 5/8" (8620 STEEL)
SQUARE CAPACITY - 5" (8620 STEEL)
ROUND CAPACITY - 5" (4140 STEEL)
SQUARE CAPACITY - 4 3/8" (4140 STEEL)
INSIDE BAR TO INSIDE BAR: 30"
INCLUDES:
DESCRAMBLER

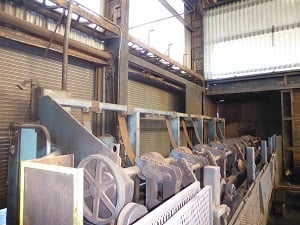

FEED TABLE - 20' MAX LOAD LENGTH
OPERATOR STATION
BACK GAUGE
HYDRAULIC UNIT
VIDEO:
https://youtu.be/LTEdeAMwMr0
OVERALL DIMENSIONS (APPROXIMATE)
Bar Shear: 7'3" L X 8'6" W X 11'4" H
Feed Line: 32'9" L X 8'3" W X 8'2" H
Hydraulic Unit: 9'8" L X 5'3" W X 7'2" H
Get Your Price from National Machinery Exchange!
