Description

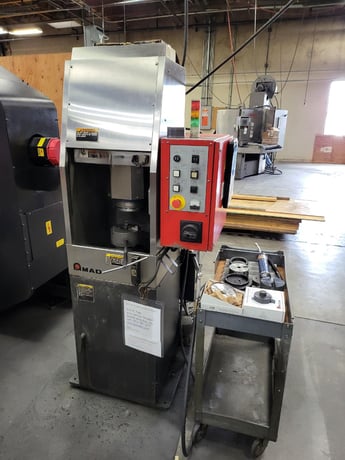

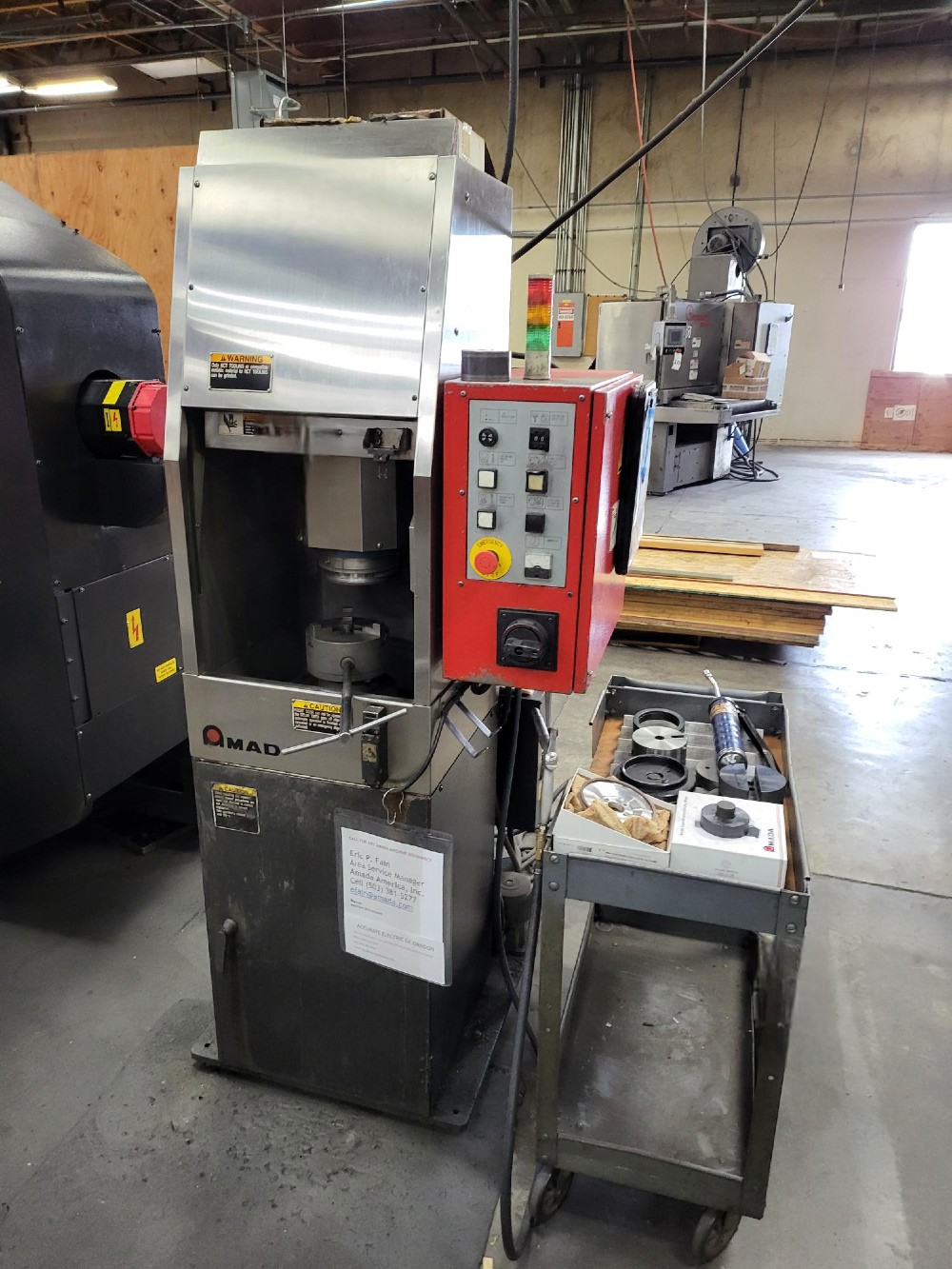

2007 & 2018 Amada TOGU III Tool Grinders
Grinding is no longer the same old grind with the Togu III. Simply chuck a tool, choose your grind amount and hit the start button. The day of high-precision, automated grinding has arrived.
- High-precision automated grinding designed specifically for turret punch press tooling.
- Servo-controlled wet rotary grinding provides unsurpassed surface finish significantly increasing tool life.
- Easy operation-experienced grinding operators unnecessary.
- Small footprint allows strategic shop placement.
- Comes in various sizes of jigs and sleeves.
Specifications:
Grinding Wheel: CBN ⌀ 5.31
Max. Diameter Tool Size: ⌀ 6.30
Max. Grinding: 0.039″
Main Axis Motor: 2 HP 2 P
Main Axis Rotation Speed: 3000 RPM (60Hz)
Main Axis Travel: 9.45″
Main Axis Feed Motor: DC Servo 0.05 HP
Main Axis Feed Speed-High: 23.6 IPM
Main Axis Feed Speed-Middle: 2.36 IPM
Main Axis Feed Speed-Low: 0.002 IPM
Table Motor: 0.134 HP 4P
Table Rotation Speed: 72 RPM(60Hz)
Cooling Water Pump Motor: 0.08 HP 2P
Cooling Water pump Motor Flow: 0.9 CFM (60HZ)
Power Supply: AC 220 V 3Phase 2.5kVA
Air Supply: 60 CFM
Dimensions LxWxH (approx.): 32.7″ x 25.6″ x 73.3″
Machine Weight: 1058 LB
