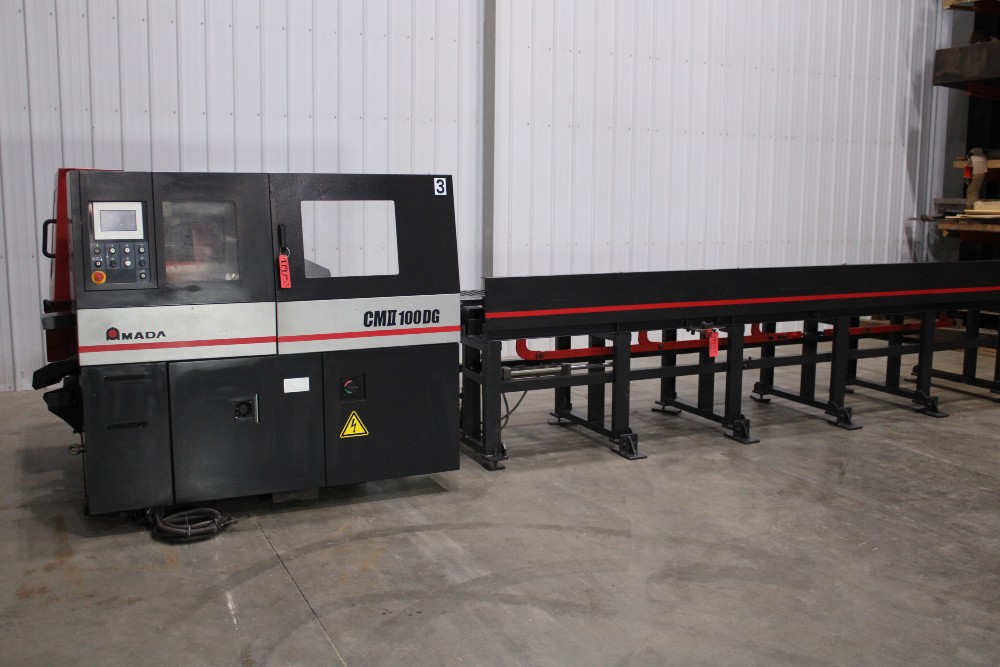

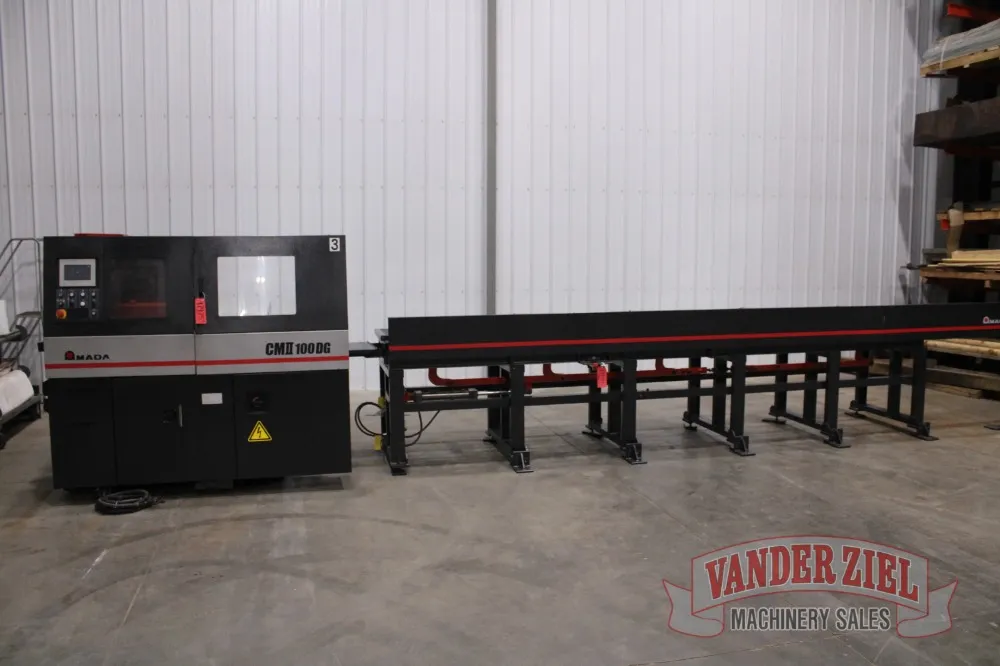

14.2" Amada #CMII-100DG, cold saw, 1.57" arbor

Estimated monthly payment valid upon approved credit.

Request Formal Quote

CUTTING CAPACITY
• Round: 0.79" – 4.00" (20 – 101.6 mm)
• Square/Rectangle: 0.79" × 0.79" – 3.15" × 3.15" (20 × 20 – 80 × 80 mm)
• Maximum Bundle Loading: 10 bars, up to 19.7 ft (6000 mm) long, 4.0" (101.6 mm) diameter, 8,511 lbs (3,860 kg)*

SAW BLADE
• Blade Diameter: 14.2" (360 mm)
• Arbor: 1.57" (40 mm)
• Blade Thickness: 0.102" (0.098") / 2.6 mm (2.5 mm)
• Available Tooth Counts: 60, 80, or 100
• Blade Speed: 50–180 RPM (Inverter) or 50–250 RPM (Inverter Option)

MATERIAL FEED
• Feed Mechanism: Shuttle Vise
• Drive System: AC Servo Motor with Ball Screw
• Feed Stroke: 28.3" (719 mm)
• Cut Length: 0.394" – 393.7" (10 – 9999.99 mm), Multiple Indexing
• End Trim Length: 0.394" – 3.9" (10 – 99 mm)
• Minimum Remnant: 1.97" (50 mm) + Part Length

MOTORS
• Saw Blade Motor: 20 HP (15 kW)
• Saw Head Feed: 2.6 HP Servo (2.0 kW)
• Hydraulic Pump: 3 HP (2.2 kW)
• Cut-to-Length Feed: 1.3 HP Servo (1.0 kW)

ELECTRICAL
• Standard Voltage: AC 220V ±10%, 3-Phase, 50/60 Hz
• Alternate Voltage: AC 220V ±10%, 3-Phase, 60 Hz
• Other Voltages: Transformer Required
• Power Requirement: 30 kVA or 38 kVA

PNEUMATIC & HYDRAULIC
• Air Pressure: 72.5 psi (0.5 MPa)
• Air Consumption: 64.6 gal/min (245 L/min)
• Hydraulic Tank Capacity: 8.0 gal (30 L)
• Oil Mist Tank Capacity: 0.47 gal (1.8 L)

MACHINE DIMENSIONS
• Machine Dimensions (W × L × H): 65.0" × 82.3" × 64.2" (1650 × 2100 × 1630 mm)
• Table Height: 35.4" (900 mm)
• Machine Weight: 5,513 lbs (2,500 kg)
• Incline Loading Table: 17.6 ft × 53.9" × 44.3" (5350 × 1370 × 1125 mm)

Preliminary Specification subject to verification
