Alphair, Ventilation Fan & Air Tunnel w/ 1000 HP Motor & Control Module, 375000 cfm

SKU: 105477
Condition: Used
Additional Description:
Package includes:

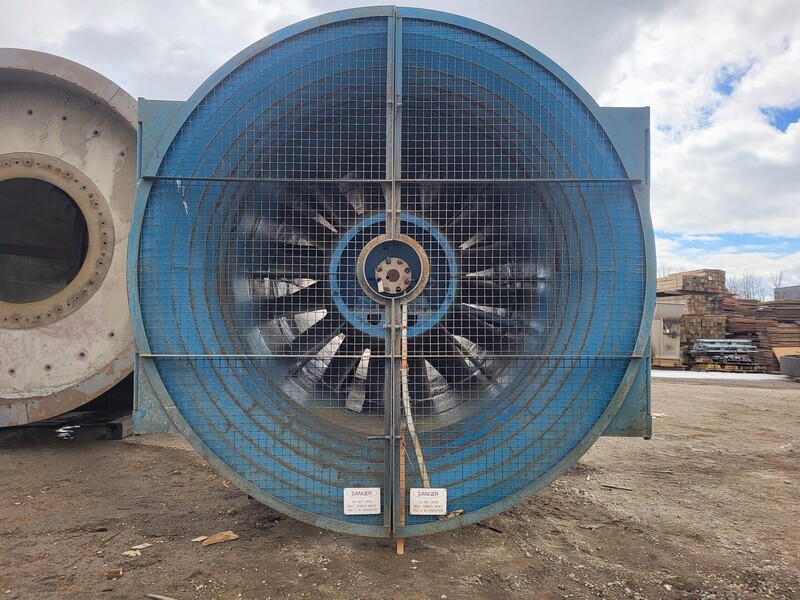

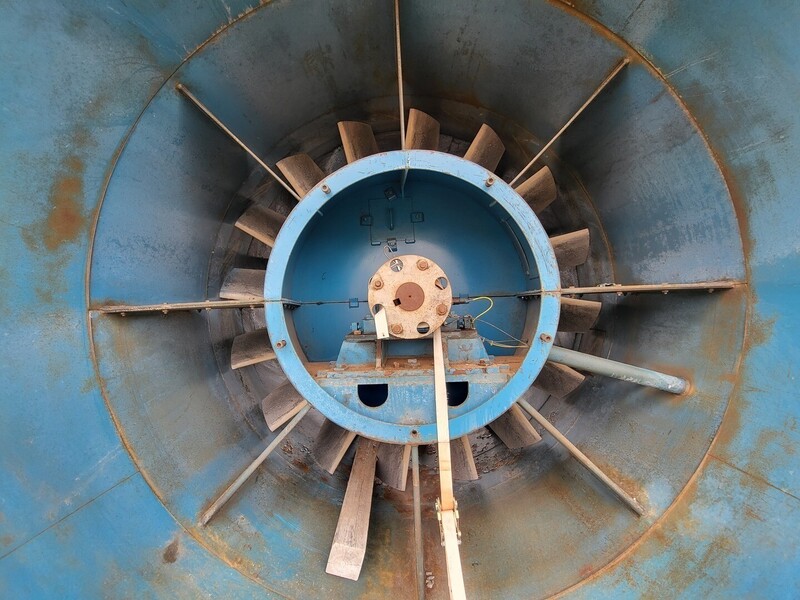

- 1 x ALPHAIR Axial Ventilation Fan

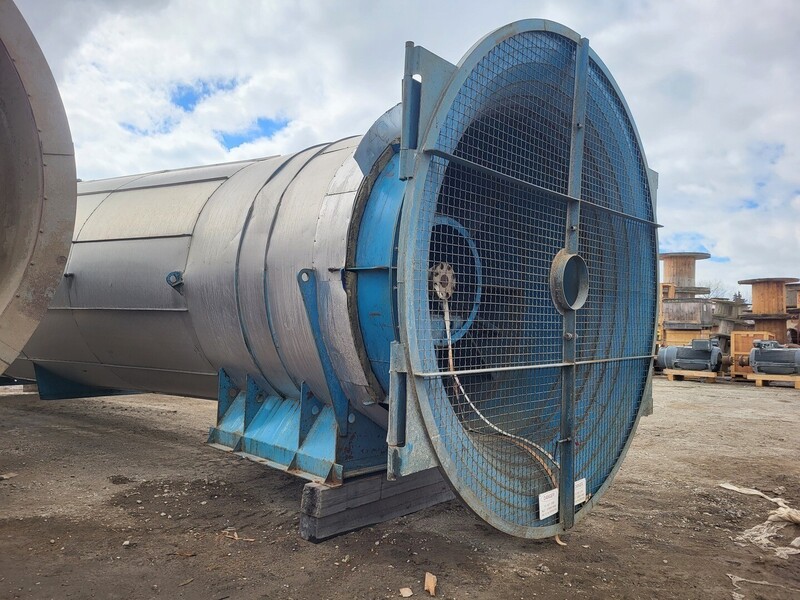

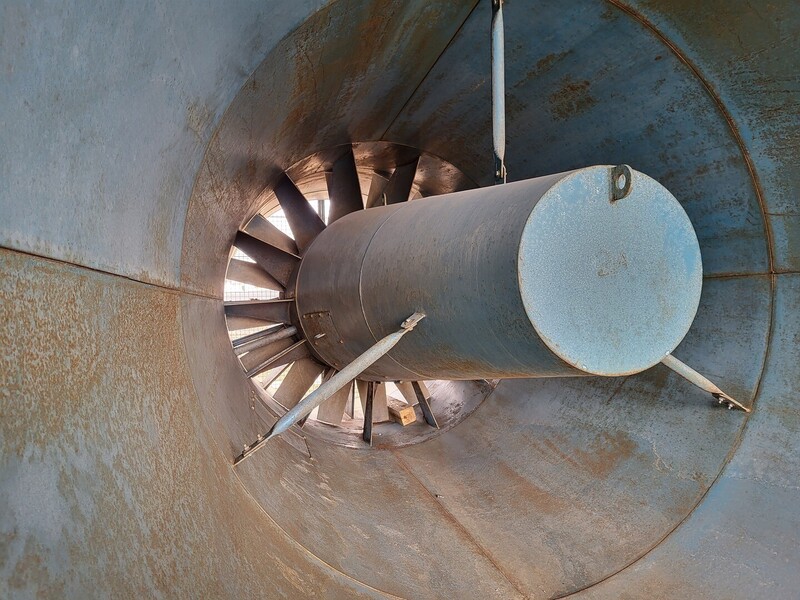

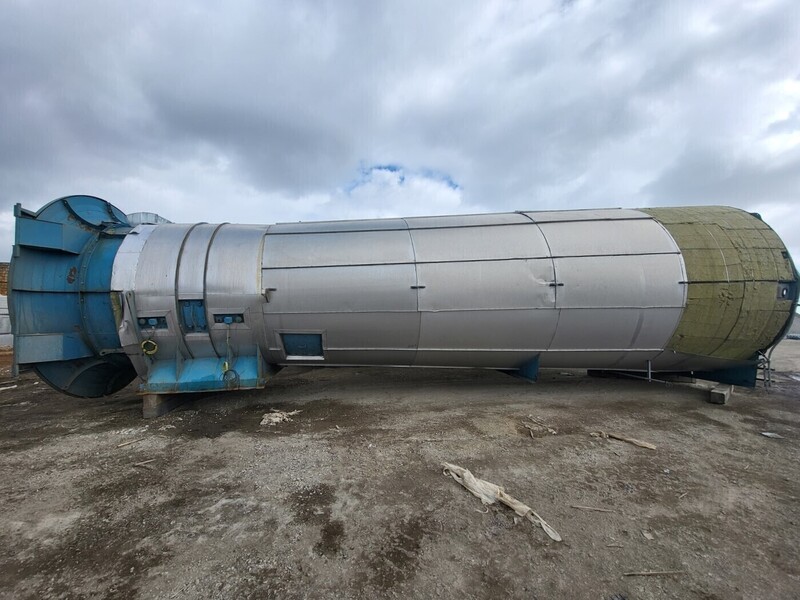

- 1 x ALPHAIR Axial Ventilation Air Tunnel
- 1 x ALPHAIR Axial Ventilation Elbow Connector
- 1 x ALPHAIR Axial Ventilation Elbow
- 1 x TECO-WESTINGHOUSE 1000hp, 4000V Premium Efficiency 3-Phase Severe Duty Motor
- 1 x Electrical/Control Module w/ 1000hp VFD
Fan Performance:
- Max. Air Flow: 375,000cfm
- Min. Air Flow: 276,000cfm
- Static Pressure: 12.73 in. wg.
- Fan RPM: 880rpm
- Inlet Density: 0.075lbs/ft cu.
- Blade Tip Angle: 34deg.
Motor Specifications:
- Make: TECO-WESTINGHOUSE
- Desc.: Premium Efficiency 3-Phase Severe Duty Motor
- Type: AEJH-8A001
- Poles: 8
- Output: 1000hp
- Volts: 4000v
- Rating: Cont.
- Amps: 130a
- RPM: 890rpm
- IP: 55
Control Module Components:
- ALLEN-BRADLEY PowerFlex 7000, 1000hp VFD
- Controls for Heater/Burner Modules (Modules Sold Separately)
- Motor and Fan Controls
- Building Heating Units
- Control Transformers
- Heat Trace Control Panel and Power Supply for Insulated Fuel Lines (In FAR #1 Control Module Only)
