125 GPM, Allweiler Emulsion Technology (EMTEC) high-pressure 3-screw pump, new, never used, up to 125 GPM, up to 1450 psig, Quantity (9 available) on-hand.

See PDF Brochure herein.

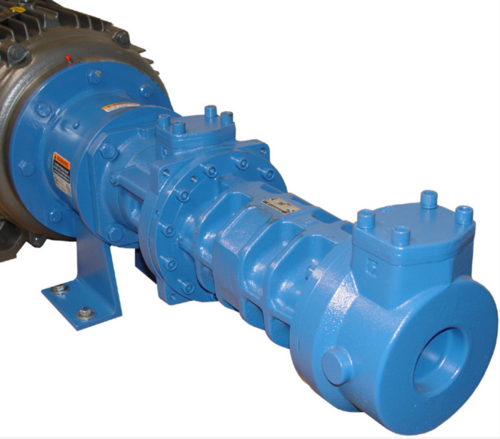

The picture included in this posting is for illustration purposes only.

Emtec pumps are specifically designed to withstand the harsh environment of high pressure machine tool coolant service. Special hardening techniques produce a surface hardness similar to ceramic in the housing bores while maintaining elasticity that eliminates the danger of bore surface fracture. The hardening process of the rotor set includes PVD* treatment that results
in a surface hardness of 1200HV.

The Emtec pump is fully hydrodynamically balanced which eliminates thrust loads due to differential pressure. The power rotor’s balance piston is extra long which improves the pump’s volumetric efficiency. Flow that crosses the balance piston serves to cool and lubricate the silicon carbide mechanical shaft seal faces.

In applications where the “DQ” version is utilized, the shaft seal is eliminated to further reduce cost. Flow that passes across the balance piston is vented from the pump and into the reservoir. In this design, a labyrinth ring on the fluid side of the ball bearing prevents coolant “splash” from washing out the bearing grease.

Please call us for a formal quote. We can sell as "pump only" or with coupling, baseplate, motor as you wish. Performance testing is available. Our standard conditions of sale and materials and workmanship warranty apply.

Thank You for the Opportunity
