For Sale by Yoder Machinery Sales
Surplus Record Dealer Since 1960
Location: Holland, OH
Contact Sales
Phone Number: 866...> Show Phone Number 866-692-8933
Let the seller know you found their listing on Surplus Record!
Description
SERIAL ............................. 72082886

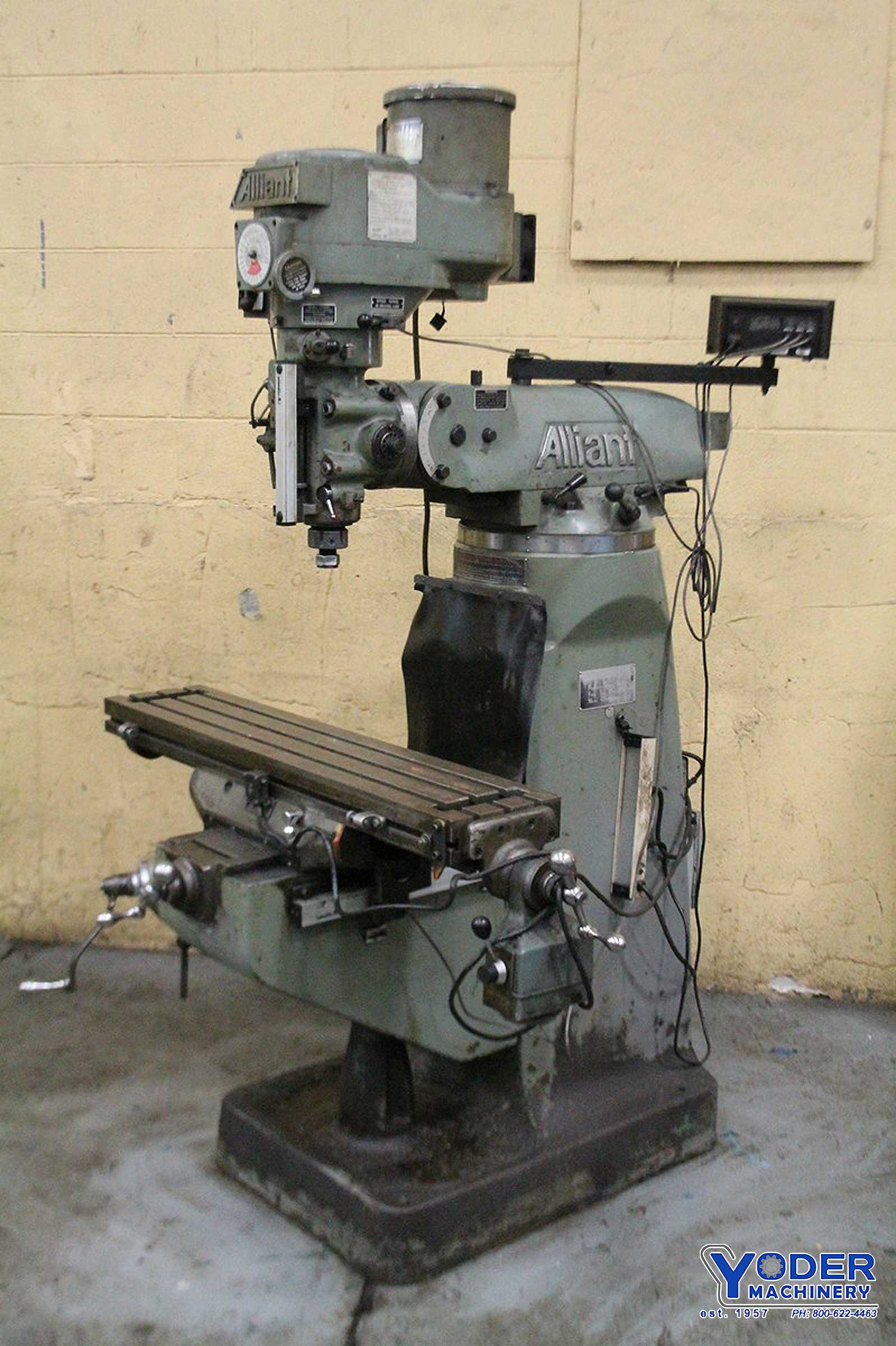

MODEL .............................. 1-1/2 TMV

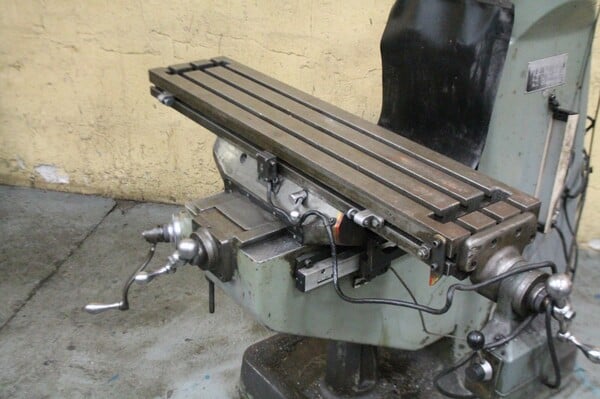

AREA OF TABLE ...................... 42" X 9"
SPINDLE SPEEDS ..................... (VARIABLE) 60 TO 4500 RPM
LONGITUDINAL TRAVEL ................ 30"
CROSS TRAVEL ....................... 12"
VERTICAL KNEE TRAVEL ............... 16"
QUILL TRAVEL ....................... 5"
RAM TRAVEL ......................... 12"
TAPER SPINDLE ERICKERSON ........... QUICK 30
RAM SWIVELS ........................ 360 DEGREES
HEAD SWIVELS, LEFT TO RIGHT ........ 90 DEGREES EITHER WAY
HEAD TILTS FRONT TO BACK ........... 45 DEGREES EITHER WAY
CHROME KNEE WAYS ................... YES
LONGITUDINAL POWER FEED ............ YES

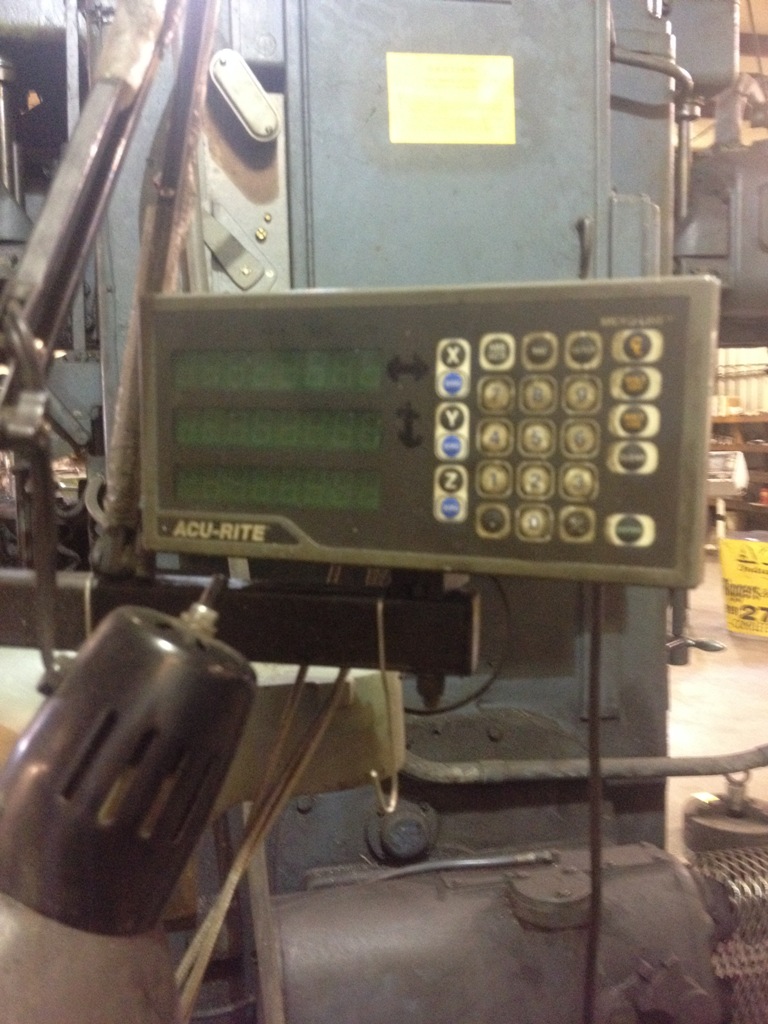

DIGITAL READOUT ACU RITE ........... 3 AXIS
SPINDLE MOTOR ...................... 2 HORSEPOWER
MODEL .............................. 1-1/2 TMV
AREA OF TABLE ...................... 42" X 9"
SPINDLE SPEEDS ..................... (VARIABLE) 60 TO 4500 RPM
LONGITUDINAL TRAVEL ................ 30"
CROSS TRAVEL ....................... 12"
VERTICAL KNEE TRAVEL ............... 16"
QUILL TRAVEL ....................... 5"
RAM TRAVEL ......................... 12"
TAPER SPINDLE ERICKERSON ........... QUICK 30
RAM SWIVELS ........................ 360 DEGREES
HEAD SWIVELS, LEFT TO RIGHT ........ 90 DEGREES EITHER WAY
HEAD TILTS FRONT TO BACK ........... 45 DEGREES EITHER WAY
CHROME KNEE WAYS ................... YES
LONGITUDINAL POWER FEED ............ YES
DIGITAL READOUT ACU RITE ........... 3 AXIS
SPINDLE MOTOR ...................... 2 HORSEPOWER
Get Your Price from Yoder Machinery Sales!
