Allen-Bradley Variable Frequency Drive 20G1AND156AN0NNNNN 480V, 3-Phase

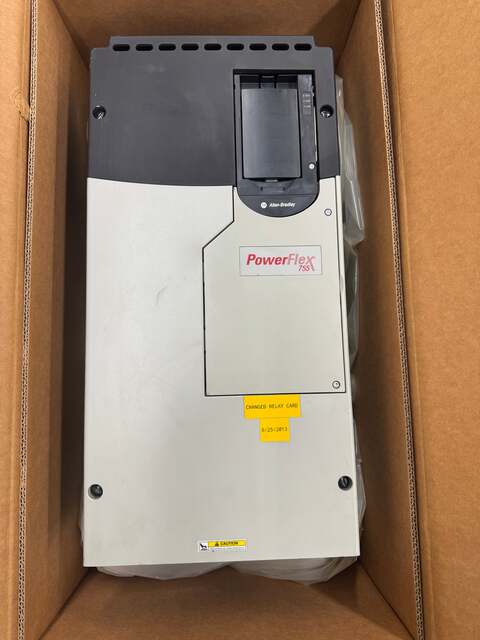

The Allen-Bradley PowerFlex 755 is a high-performance air-cooled AC variable frequency drive from Rockwell Automation, engineered for demanding industrial motor control applications including pumps, fans, conveyors, and process equipment. This unit carries catalog number 20G1AND156AN0NNNNN, Series A, and is rated for 125 HP Normal Duty and 100 HP Heavy Duty output at 480V Class. Continuous output current is 156 amps, with 60-second overload capacity of 171.6 amps and 3-second overload capacity of 234 amps. Input is 3-phase, 47 to 63 Hz, with an AC voltage range of 432 to 528V. Output frequency range spans 0 to 590 Hz.

The drive features an open-type IP00 enclosure, AC input with precharge, no DC terminals, and embedded EtherNet/IP communication for seamless integration with Rockwell Automation Logix control platforms. Control modes include Volts/Hertz, Sensorless Vector Control, and Closed-Loop Velocity Control. No HIM (Human Interface Module) is installed on this unit. Frame 6 construction. Original firmware 13.003. Serial number 25970338. Manufactured 2013/04/23 at Rockwell Automation, Milwaukee, Wisconsin, USA.

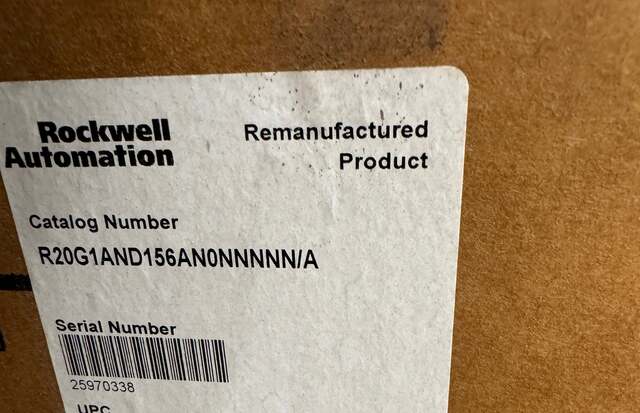

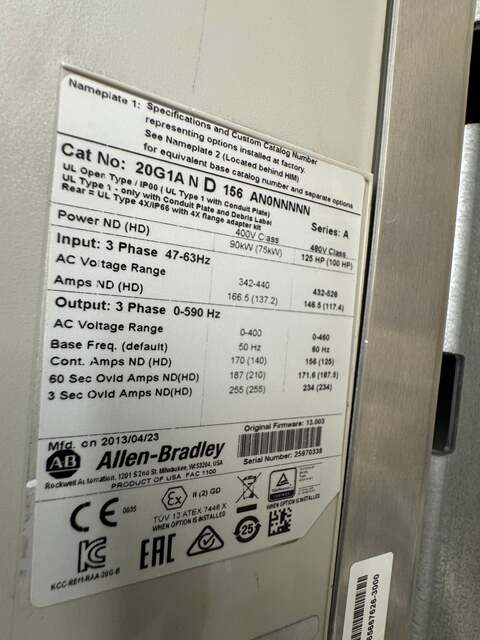

Certifications visible on nameplate include CE, EAC, ATEX TUV 13 ATEX 7448X, and KCC. The box label identifies this unit as a Rockwell Automation Remanufactured Product under catalog number R20G1AND156AN0NNNNN/A.

Stock # 0426-02176
