Allen-Bradley Toggle Switch 800T-T4T8AAXX

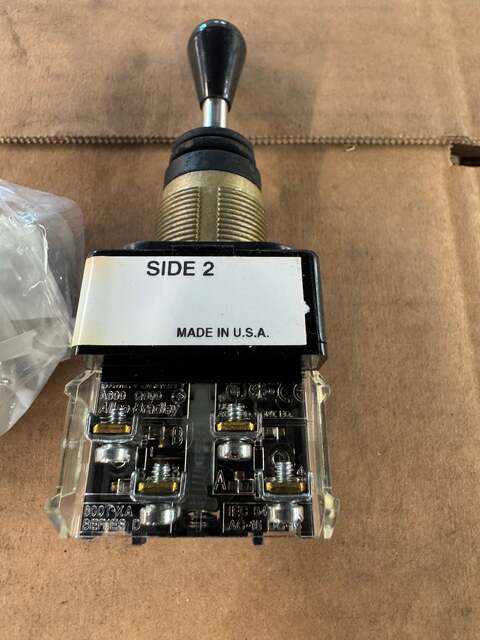

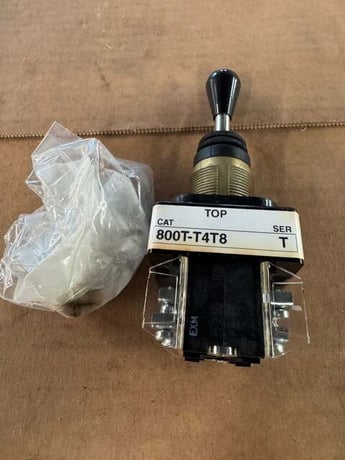

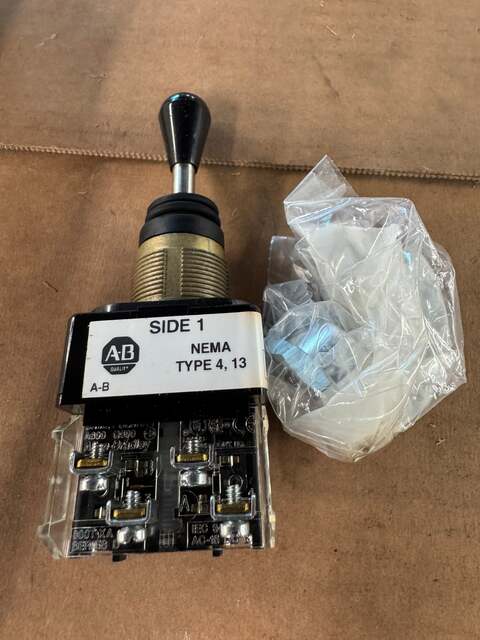

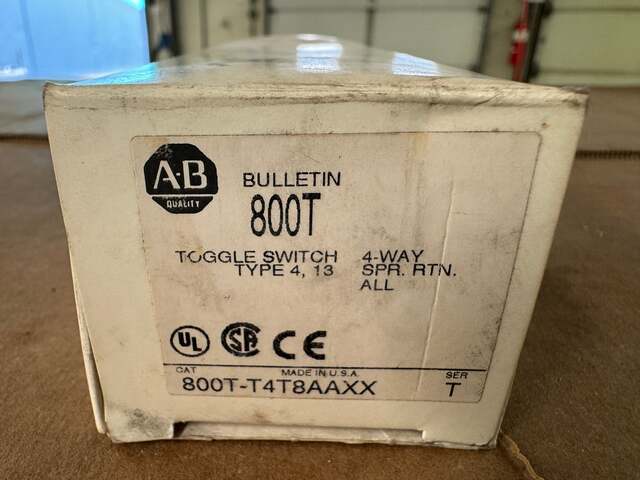

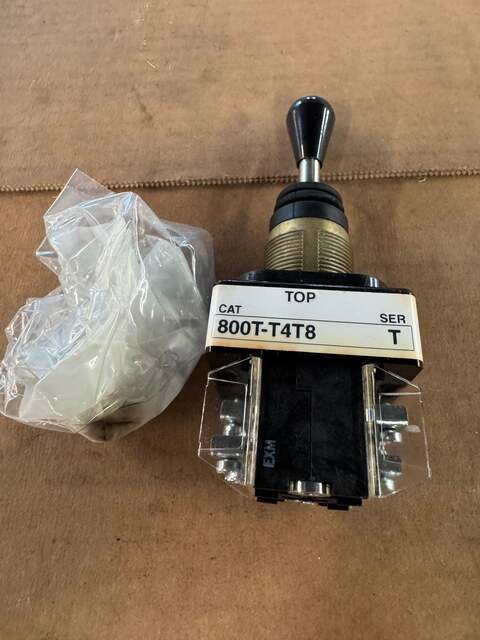

The Allen-Bradley 800T-T4T8AAXX is a 30.5 mm four-way toggle switch from the Bulletin 800T pilot device series, manufactured in the USA. Catalog number 800T-T4T8AAXX, Series T, this unit features a four-position spring-return-to-center operator that actuates in four directions: up, left, right, and down. The contact block is a 2 NO / 2 NC configuration, rated for 10 amps at 600V AC and IEC AC-15 / DC-13 service. The enclosure meets NEMA Type 4 and 13 ratings, providing protection against dust, oil, and water ingress. The 30mm threaded brass bushing is compatible with standard 30mm panel cutouts. The contact block assembly is marked 800T-XA, Series D, and carries UL, CSA, and CE certifications. Wire range is 18 to 14 AWG. The unit is presented with the original Allen-Bradley product box, which shows shelf wear; the switch itself appears unused. A bagged hardware accessory pack is included. Allen-Bradley Bulletin 800T components are widely specified in machine tool panels, crane controls, and industrial operator stations where robust four-way momentary switching is required.

Stock # 0526-02456
