Allen-Bradley Reversing Motor Starter 505-DOD

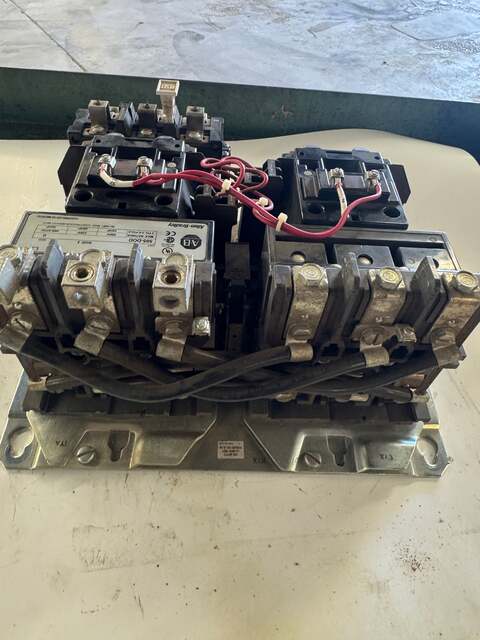

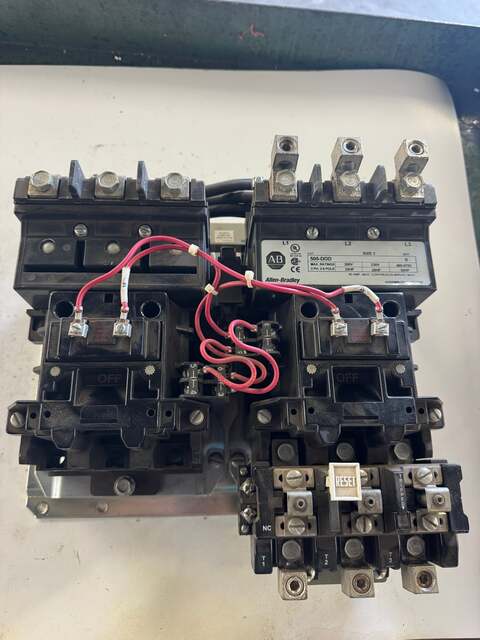

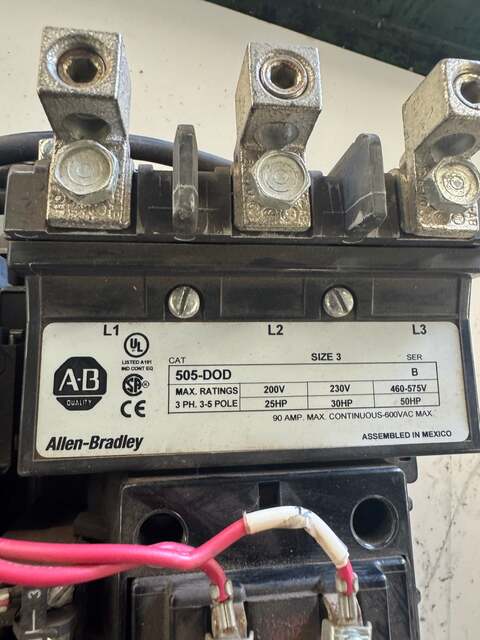

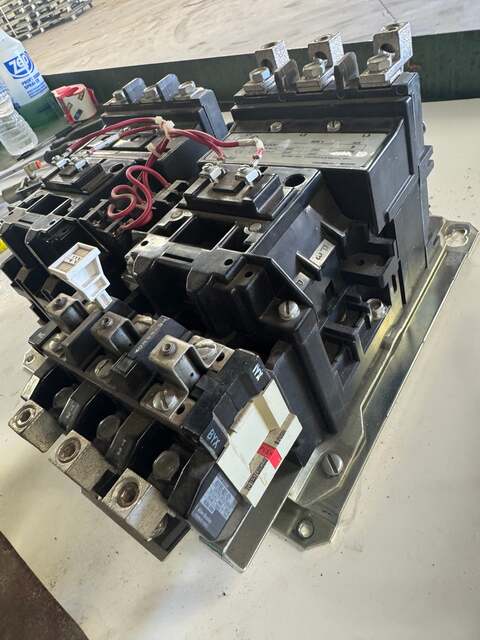

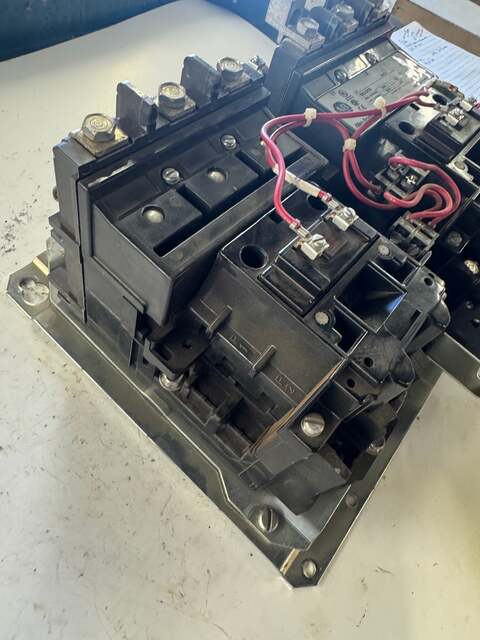

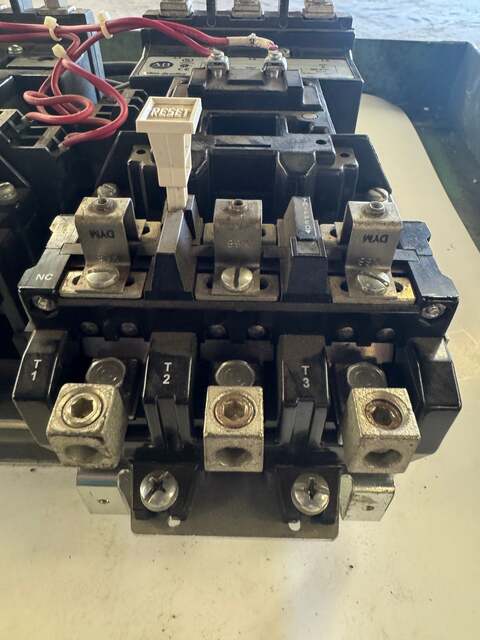

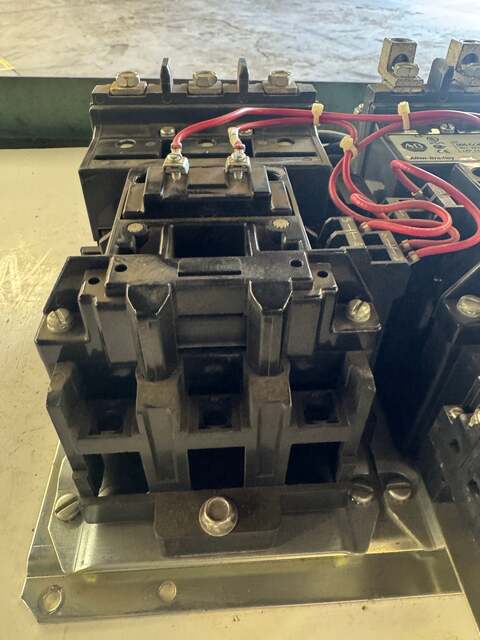

The Allen-Bradley 505-DOD is a Size 3 reversing motor starter rated for three-phase, 3 to 5 pole applications. Nameplate data confirms maximum continuous current of 90 amps at 600V AC, with horsepower ratings of 25 HP at 200V, 30 HP at 230V, and 50 HP at 460 to 575V. The catalog number 505-DOD designates a reversing configuration, consisting of two mechanically and electrically interlocked contactors wired for forward and reverse motor control. Series B designation is visible on the nameplate. The coil label visible on the unit indicates 115 to 125V / 110 to 120V at 60 Hz operation. The assembly is assembled in Mexico per nameplate. UL listed and CE marked. This unit shows signs of prior installation and use. No overload relay is confirmed present in the photos. The 505 series reversing starters are commonly used in industrial motor control applications including conveyors, hoists, pumps, and machine tool drives requiring directional control of three-phase AC motors.

Stock # 0426-02022
