Allen-Bradley Motor Starter 509-DOD 200V

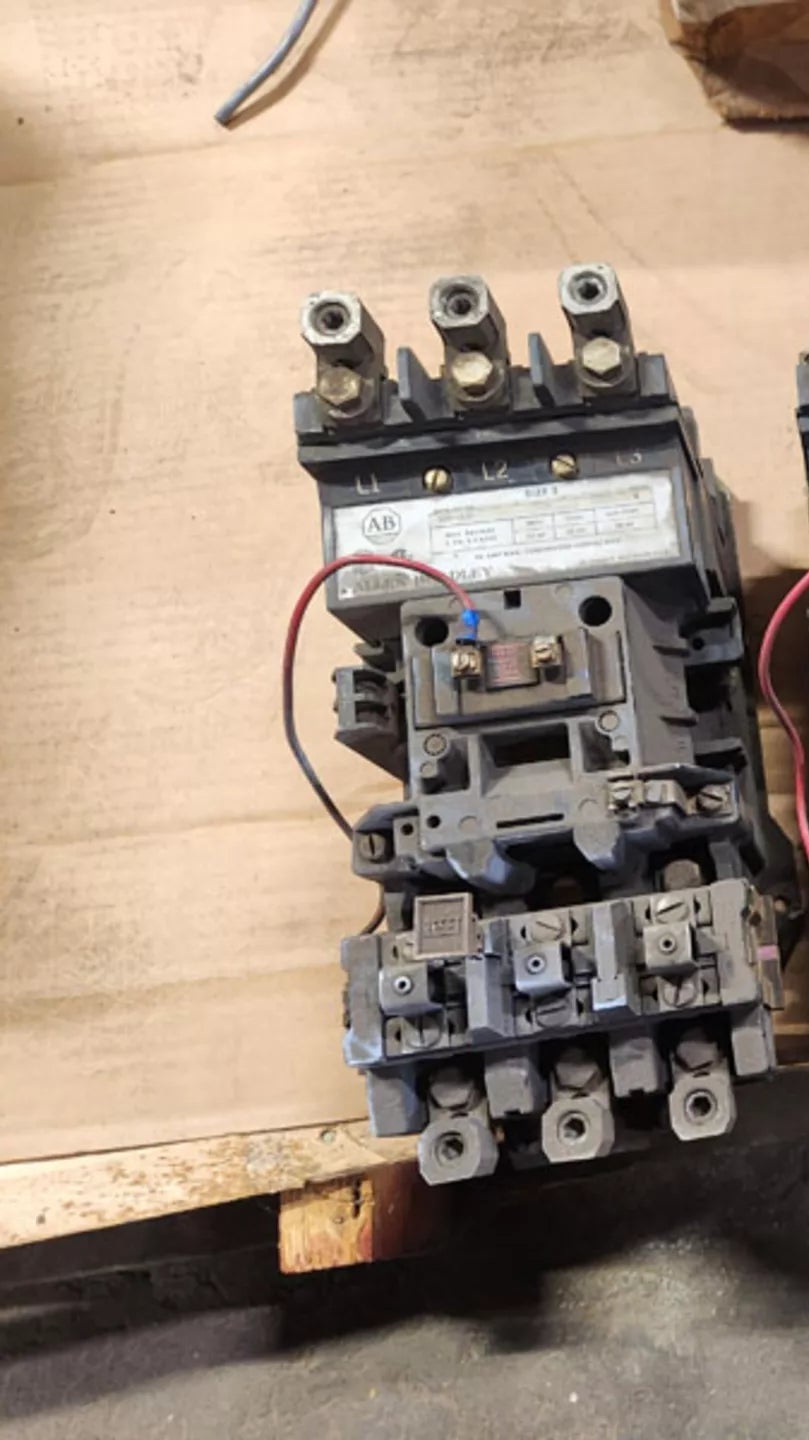

Used in industrial motor control applications, the Allen-Bradley 509-DOD is a full-voltage non-reversing NEMA motor starter rated for 3-phase, 3-pole service at 200V. The catalog number 509-DOD corresponds to a Size 4 NEMA starter configuration, suitable for motors up to 25 HP at 200V. This unit includes an overload relay assembly with a warning label indicating heater elements must be installed prior to operation. A supplementary circuit breaker is mounted to the top of the assembly. The contactor section features heavy-duty line and load terminals with large-gauge lug connections sized for the current ratings associated with this frame size. A small auxiliary contact block is visible on the lower portion of the assembly. The unit shows signs of prior installation and use. No heater elements are confirmed present. Coil voltage is not confirmed from visible photos and should be verified prior to installation. The 509-DOD is a widely used starter in legacy machine tool, pump, compressor, and HVAC control panels requiring NEMA-rated motor switching at 200V, 3-phase.

Stock # 0426-02026

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
