Allen-Bradley Motor Starter 505-AOD

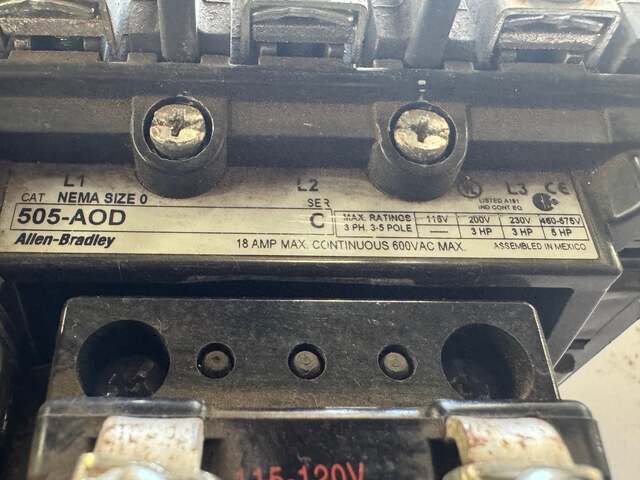

The Allen-Bradley 505-AOD is a NEMA Size 0 full-voltage non-reversing motor starter rated for 3-phase, 3-pole operation. The nameplate confirms a maximum continuous rating of 18 amps at 600V AC, with motor horsepower ratings of 3 HP at 200V, 3 HP at 230V, and 5 HP at 460-575V. The coil assembly installed on this unit is marked 115-120V at 60 Hz and 110V at 50 Hz, with coil designation CB236 visible on the coil housing. Series C is confirmed on the nameplate. The unit was assembled in Mexico per nameplate data. Part number 505-AOD is the OEM catalog number used consistently in Allen-Bradley documentation and US market listings for this starter configuration. The 505 series is a long-production NEMA full-voltage starter line commonly used in machine tool, pump, conveyor, and general industrial motor control applications. The item shows signs of prior installation and use. No testing or functional verification is implied or warranted.

Stock # 0426-02023
