Allen-Bradley Managed Ethernet Switch 1783-BMS10CL 12 To 48V DC

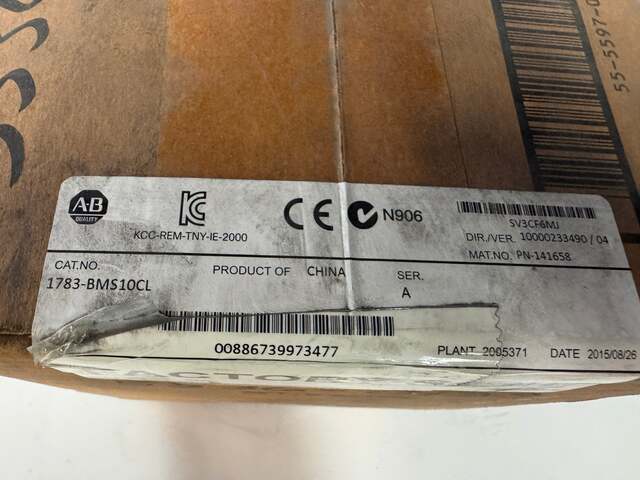

The Allen-Bradley 1783-BMS10CL is a 10-port managed industrial Ethernet switch from the Stratix 5700 series, catalog number confirmed on the factory label. The unit carries Series A designation with firmware version DIR./VER. 10000233490/04 and material number PN-141658, all visible on the OEM label. Eight copper RJ45 ports support 10/100 Mbps Fast Ethernet, while two combo ports support copper or SFP fiber modules at 10/100/1000 Mbps. The switch runs Lite firmware and is designed for use in industrial EtherNet/IP networks, commonly integrated with Rockwell Automation ControlLogix, CompactLogix, and similar PLC architectures.

Power input is 12 to 48 Volts DC per manufacturer published specifications. The switch carries an IP30 environmental rating and is DIN-rail mountable. Operating temperature range is rated for negative 40 to 140 degrees Fahrenheit per published data. The unit carries CE, KC (KCC-REM-TNY-IE-2000), and C-Tick N906 regulatory marks as shown on the label. Production date is confirmed as August 26, 2015. UPC 00886739973477 is visible on the label.

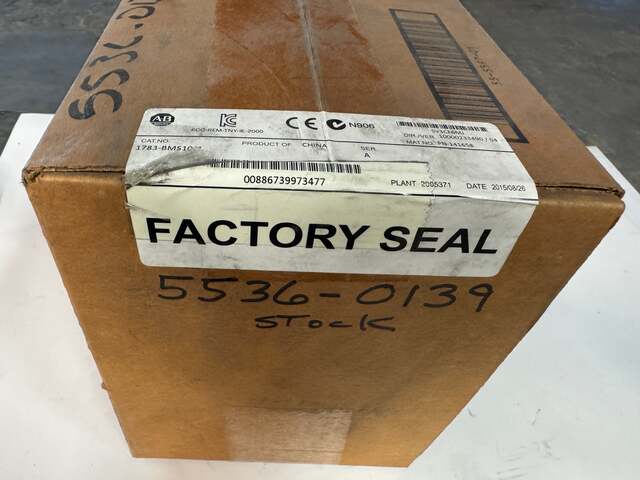

This item is presented in factory-sealed original OEM carton. The box is sealed and shows the item in its original factory condition. Rockwell Automation discontinued the 1783-BMS10CL as of September 2024, with the 1783-CMS10B listed as the engineering replacement. Surplus factory-sealed units represent the remaining available stock for ongoing system support and expansion.

Stock # 0526-02216
