Allen-Bradley Auxiliary Power Supply Module 20-750-APS 24 VDC

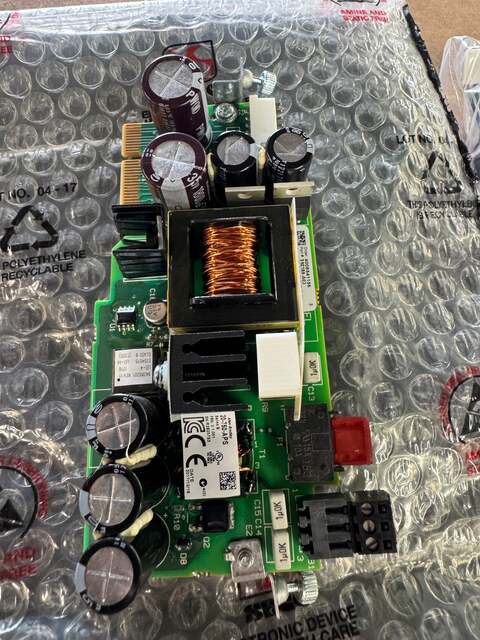

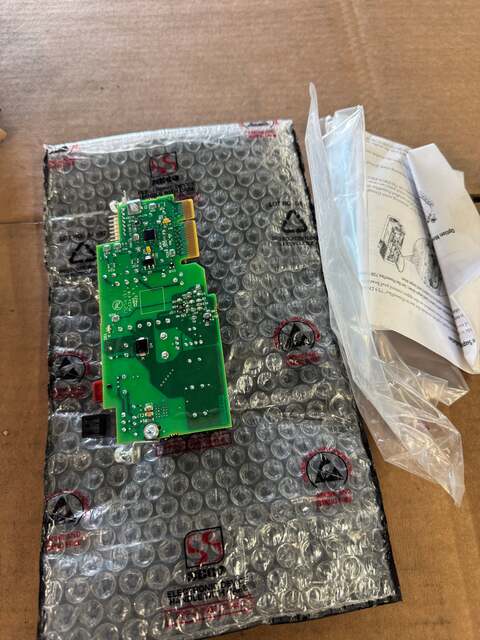

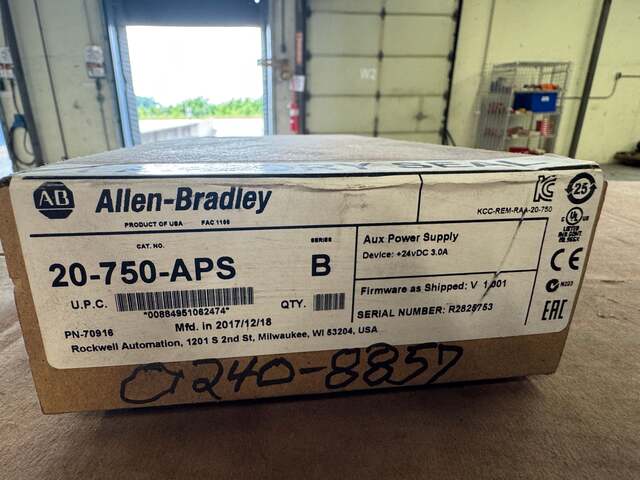

The Allen-Bradley 20-750-APS is a Series B auxiliary power supply module designed for use with PowerFlex 750 series variable frequency drives. This option module provides regulated 24V DC output at 3.0 amps to power drive control circuits and accessories. It is intended for installation in PowerFlex 753 drives across all frame sizes and in PowerFlex 755 frame 1 drives, with installation in option Port 8 recommended by the manufacturer. The module accepts a wide AC input range and includes built in protection circuitry, status indicator LEDs, and terminal markings designated AP+, AP-, and Sh for field wiring. Catalog number 20 750 APS carries Series B designation, firmware version V 1.001 as shipped, and serial number R2825753. The module was manufactured by Rockwell Automation in Milwaukee, WI on 2017/12/18 and carries UL, cUL, CE, KC, and EAC certifications under file E154515. PCB markings include part number 312189 A03 and revision 9428520L REV.11. The unit is packaged in original Allen-Bradley factory sealed retail box with installation instructions included. Typical applications include drive auxiliary power for control logic, encoder feedback, communication modules, and option cards within PowerFlex 753 and 755 drive systems used in industrial automation, material handling, pump and fan, and CNC machinery installations.

Stock # 0526-02380
