Allen Bradley, 4000 amp transformer & VFD bank, 6 x 700 HP, new surplus, 2019

$345,805 USD

Request Formal Quote

SKU: 137884
Year: 2019
Condition: Surplus New
General Specifications:
Oil vs Dry: 147
Additional Description:
Rated Input: 600VAC, 4000A, 3f
Max short circuit amps: 65kAIC
DC bus rating: 835VDC, 5000A
DC link rating: 2500A
Braking capacity peak: 1600A x 2 @75% DUTY CYCLE
VFD Rating: 0-600VAC, 3f 7 x 600HP
Max. ambient temp: 40deg C
Cooling method: FORCED AIR
Majority of components manufactured in 2019.
All cabinets can be connected together for one large multi-purpose bank.

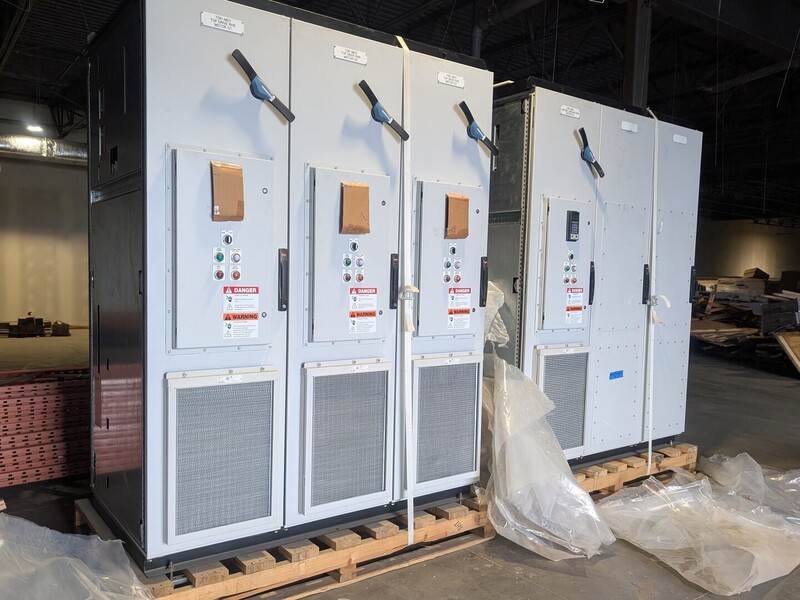

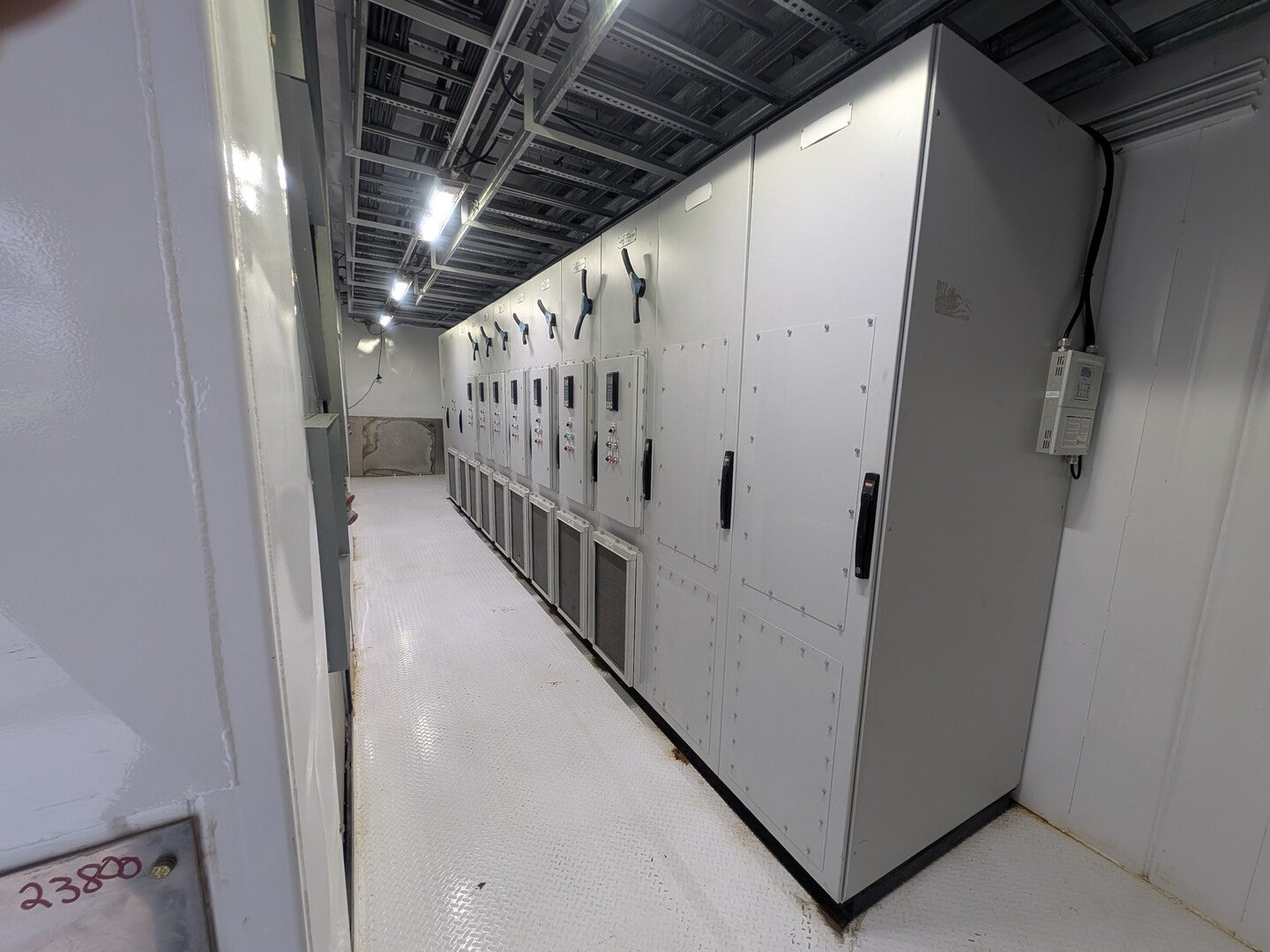

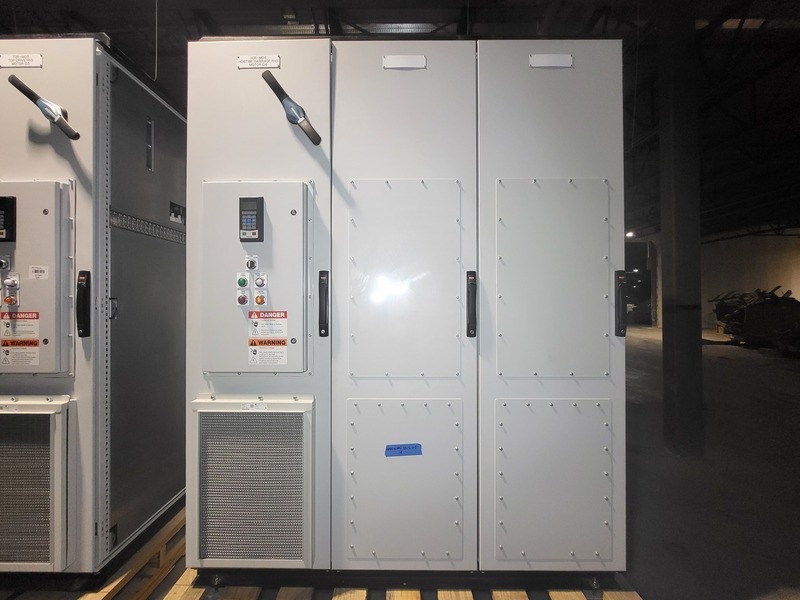

AB VFD Cabinets X 7 + 2X EMPTY SPARE Cabinets

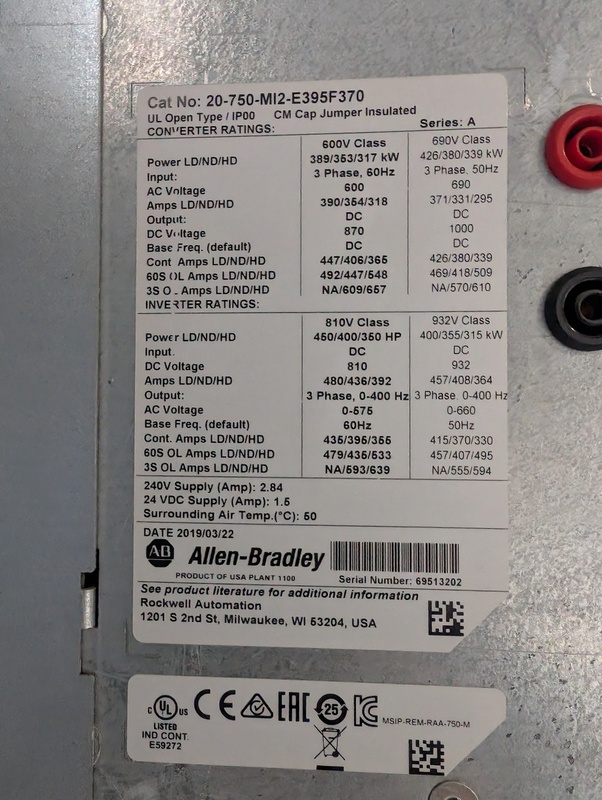

Each cabinet is comprised of two open type AB Powerflex 750 20-750-M12-E395F370 drives controlled by a PowerFlex 755T 20-760-MCPOD1-F8M Drive Board.
The cabinet utilizes a SOCOMEC Fuserbloc externally controlled fused switch/ disconnect.
Each cabinet has approximately 250 lbs of tinned busbar connecting the VFDs to the overall bank.
Each cabinet also features the following AB accessories;
2 x Allen-Bradley 20-750-MDCBUS-COND DC Bus Conditioners
2 x Allen-Bradley 20-750-MREC1-F8M Stab Receptacles

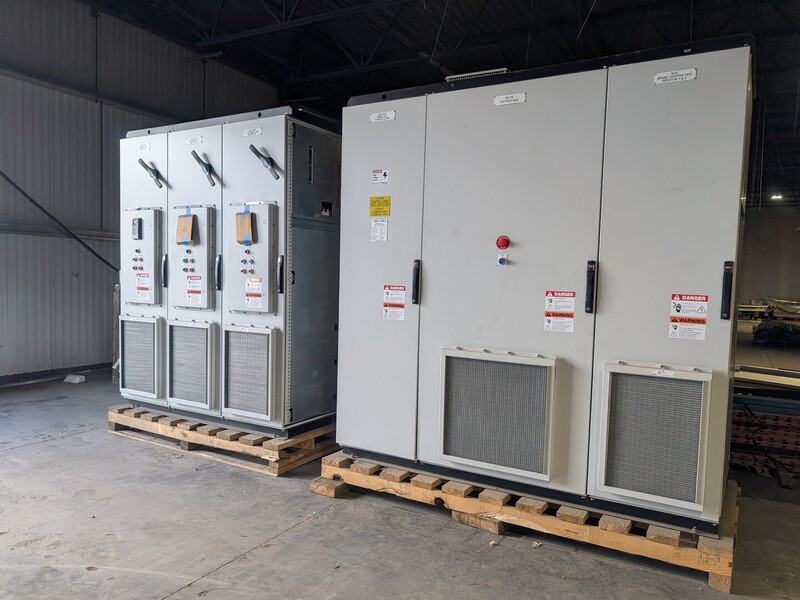

Transformer/ Inductor Cabinets
APS Rectifier
Magnetics Design 4000 AMP 3PH 60 Hz 600 Volts Dry Type Inductor
2 x Eaton 6702ED587-4 Definite Purpose DC 750V DC 3000A 3NO/1NC - Contactors
PLC Panel (as pictured)
2 x Bonitron M3452 1600 Amp Braking Transistors, Model # M3452-L1600CT10-R7E
Units require additional parts to fully connect the bank together, i.e. fiber optic cabling, hard wiring, fasteners, etc. Unit should have preventative maintenance performed before being put into service.
Capacitor reforming for each individual VFD unit should be done. This work should be completed by a certified tech.
Comes with 3 sets of bus couplers + hardware inside of the empty cabinets.
