Allen-Bradley 20AD034A0AYNANC0 Variable Frequency Drive 480V AC 3-Phase 01542

Product Specifications

• Manufacturer: Allen-Bradley
• MPN / Model: 20AD034A0AYNANC0
• Product Type: AC Drive (Variable Frequency Drive)
• Product Line: PowerFlex 70
• Series: A
• Normal Duty Power: 18.5 kW (400V Class), 25 HP (480V Class)
• Heavy Duty Power: 15 kW (400V Class), 20 HP (480V Class)
• Input: 3 Phase, 47 to 63 Hz
• Input AC Voltage Range: 342 to 440 (400V Class), 432 to 528 (480V Class)
• Input Amps: 35 (400V Class), 31.2 (480V Class)
• Output: 3 Phase, 0 to 400 Hz
• Output AC Voltage Range: 0 to 400 (400V Class), 0 to 460 (480V Class)
• Base Frequency (Default): 50 Hz (400V Class), 60 Hz (480V Class)
• Continuous Amps: 37 (400V Class), 34 (480V Class)
• 3 Sec / 60 Sec Overload Amps: 54 / 40.5 (400V Class), 54 / 40.6 (480V Class)
• Enclosure and Ambient: UL Type 1 / IP20, 50C (122F) Ambient Limit
• Operator Interface: Keypad with LCD display installed
• Serial Number: 14981162
• Original Firmware No.: 5.001
• Manufacture Date: December 29, 2010
• Country of Origin: Mexico (1150)
• Certifications: cULus Listed Industrial Control Equipment (966X), CE, TUV (EN 50178), EMC, N223
• Condition: Surplus - Untested

Product Description

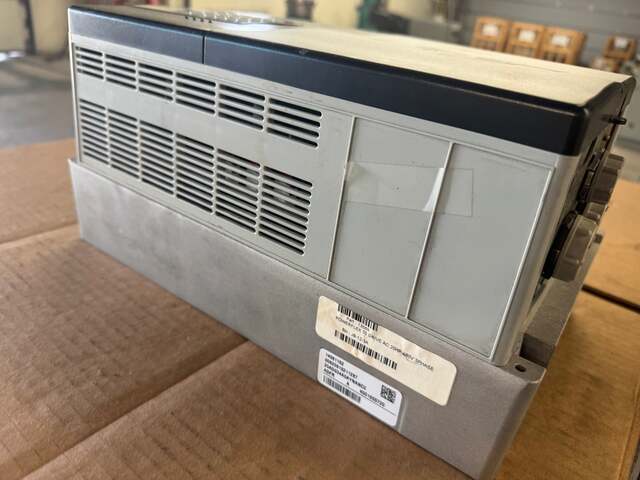

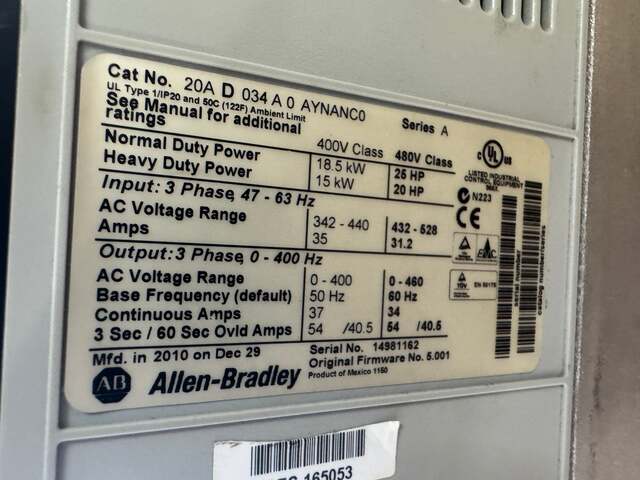

This is an Allen-Bradley 20AD034A0AYNANC0 AC drive. The nameplate reads Cat No. 20A D 034 A 0 AYNANC0, Series A, UL Type 1/IP20 and 50C (122F) Ambient Limit, with the note See Manual for additional ratings. It lists normal duty power of 18.5 kW at 400V Class and 25 HP at 480V Class, and heavy duty power of 15 kW and 20 HP. Input is 3 phase, 47 to 63 Hz, with an AC voltage range of 342 to 440 (400V Class) and 432 to 528 (480V Class), at 35 and 31.2 amps. Output is 3 phase, 0 to 400 Hz, with an AC voltage range of 0 to 400 and 0 to 460, base frequency of 50 Hz and 60 Hz, continuous amps of 37 and 34, and 3 sec / 60 sec overload amps of 54 / 40.5 at 400V Class and 54 / 40.6 at 480V Class. It also reads Mfd. in 2010 on Dec 29, Serial No. 14981162, Original Firmware No. 5.001, and Product of Mexico 1150. The marks shown are cULus Listed Industrial Control Equipment 966X, N223, CE, TUV EN 50178, and EMC. A second label on the heatsink base reads 14981162 and 20AD034A0AYNANC0.

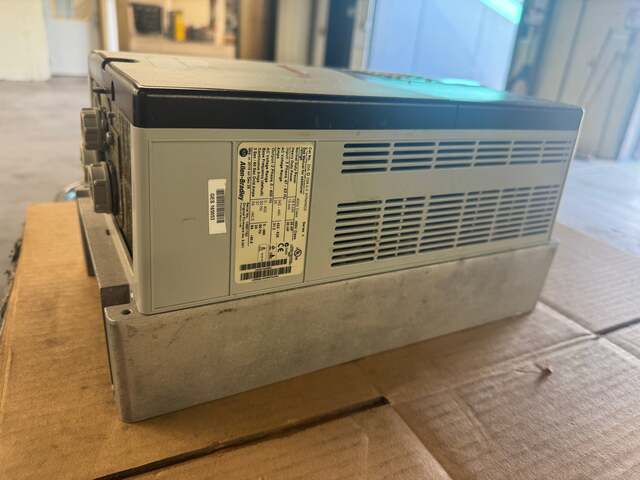

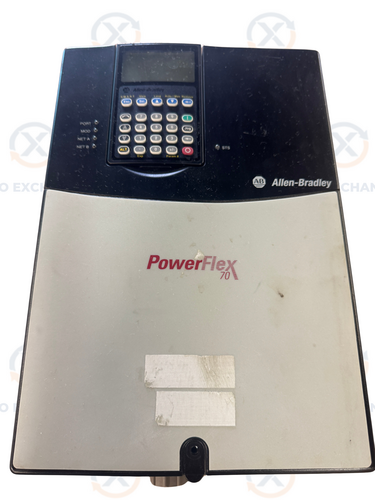

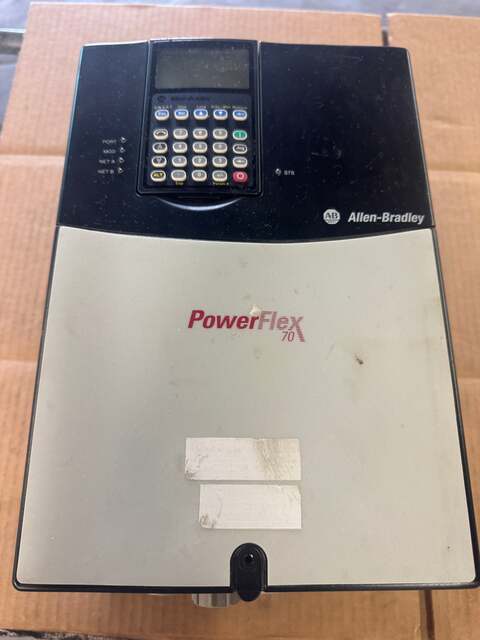

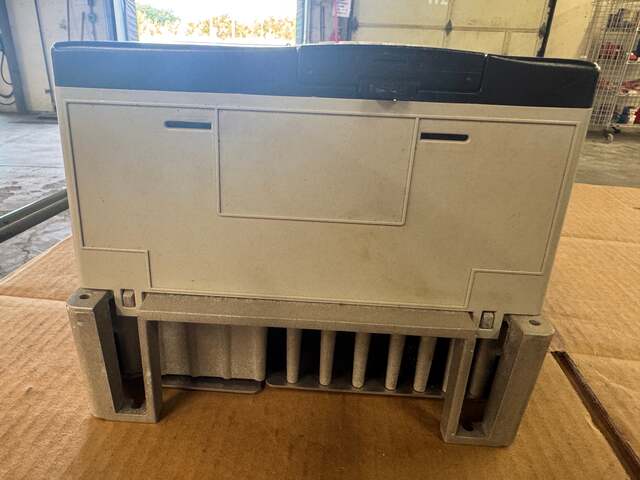

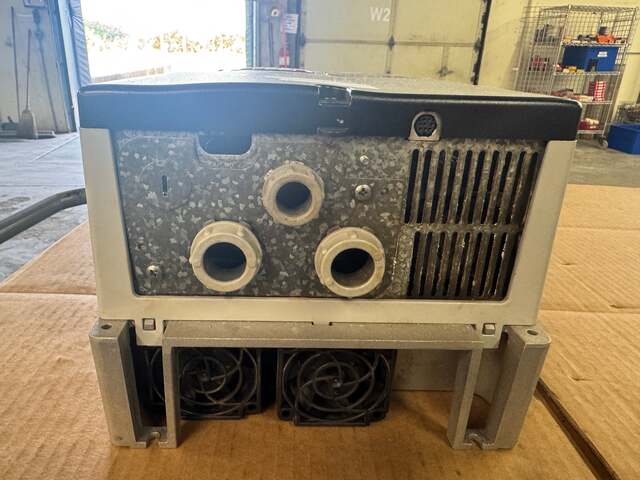

The front cover is marked PowerFlex 70 and Allen-Bradley. A keypad with an LCD display is installed on the front, with PORT, MOD, NET A, NET B, and STS indicators. Two pieces of tan tape are stuck on the light grey front cover, and a piece of clear tape is on the side. The bottom shows three conduit fittings and two fans, and the vents show dirt and staining. The housing shows dust, spots, and scuffs.

Sold as surplus, untested. This unit has not been powered on or tested by MRO Exchange, and the drive, display, and fans have not been verified.
