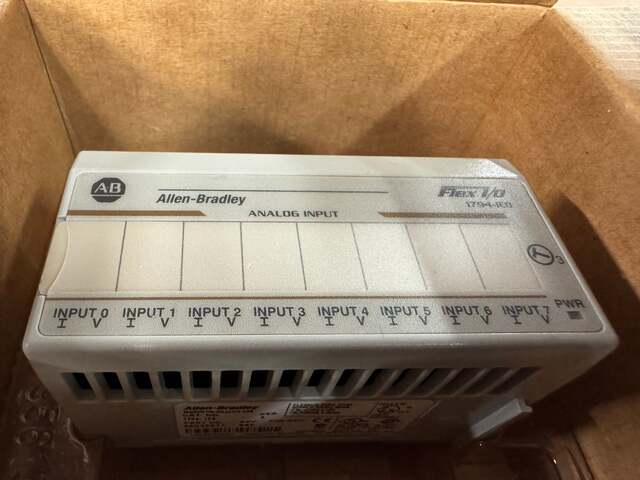

Allen-Bradley #1794-IE8, FLEX I/O 8 Channel Analog Input Module, Series B, 24 VDC, Class I Div. 2

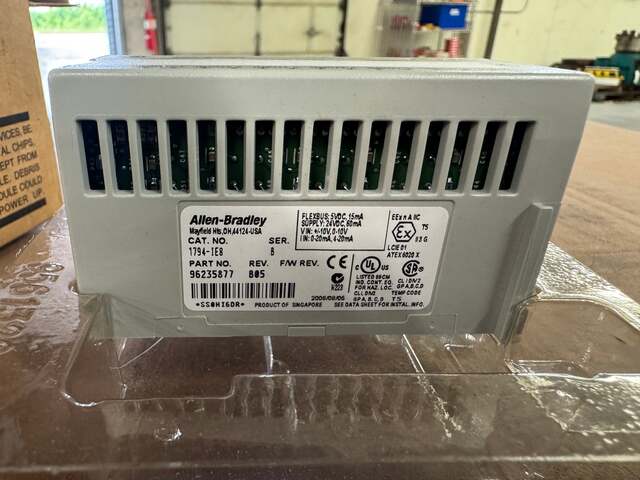

The Allen-Bradley 1794-IE8 is an 8 channel single ended analog input module from the FLEX I/O family, part number 96235877, Series B, Firmware Revision B05. This module accepts both voltage and current input signals, with voltage inputs configurable for +/-10V or 0 to 10V ranges and current inputs configurable for 0 to 20 mA or 4 to 20 mA ranges. Power requirements include 5 VDC at 15 mA drawn from the FLEXBUS backplane and 24 VDC at 60 mA from the external supply. The unit is rated for hazardous location service under Class I Division 2 Groups A, B, C, D with Temperature Code T5, and carries ATEX certification (ATEX 6020 X, EEx nA IIC, II 3 G) along with cULus and CSA approvals. The module mounts to a 1794 series FLEX I/O terminal base unit and integrates with ControlLogix, CompactLogix, and other Rockwell Automation platforms over various FLEX I/O adapter modules including ControlNet, DeviceNet, EtherNet/IP, and Profibus. Typical applications include process monitoring, temperature and pressure transducer interfacing, flow measurement, and general analog signal acquisition in distributed I/O architectures across packaging, water treatment, oil and gas, food and beverage, and discrete manufacturing environments. Date code 2008/08/06. Country of origin Singapore. The MPN is 1794-IE8 and the OEM part number on the nameplate is 96235877.

Stock # 0526-02378

Please Note: This unit is surplus inventory, sold as-is from MRO Exchange surplus stock. Allen-Bradley is a trademark of Rockwell Automation, Inc. MRO Exchange is an independent reseller and is not an authorized distributor of Rockwell Automation. Product may differ from units available through authorized distributors in date code, country of origin, packaging, accessories, or firmware revision. The warranty from the manufacturer does not apply.
