Alberti #T90-2.5, Right Angle Head, CAT50, ER25 Collet Output, Radial Orientation, Coolant Through

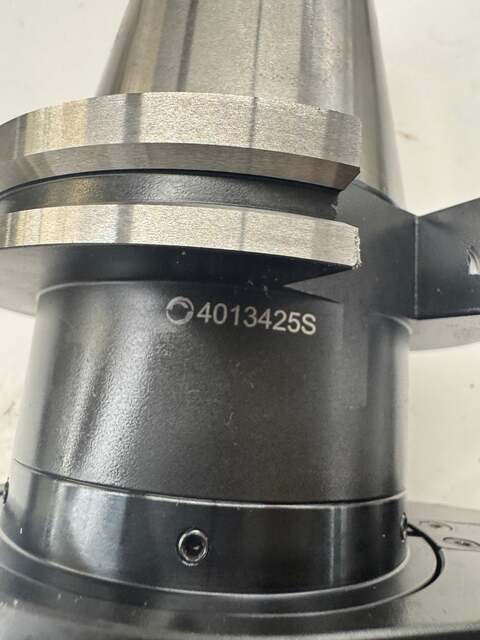

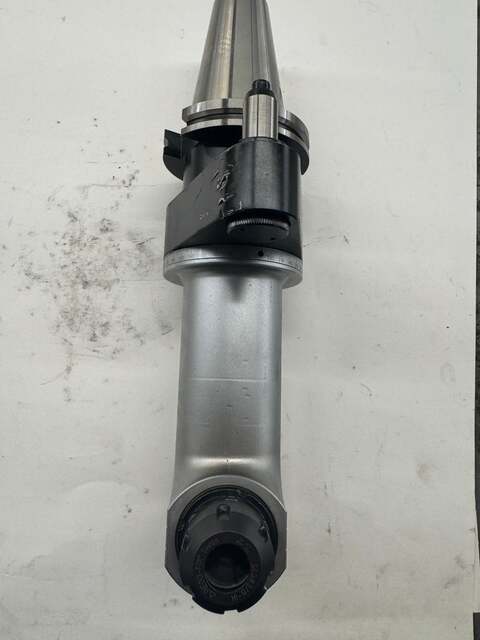

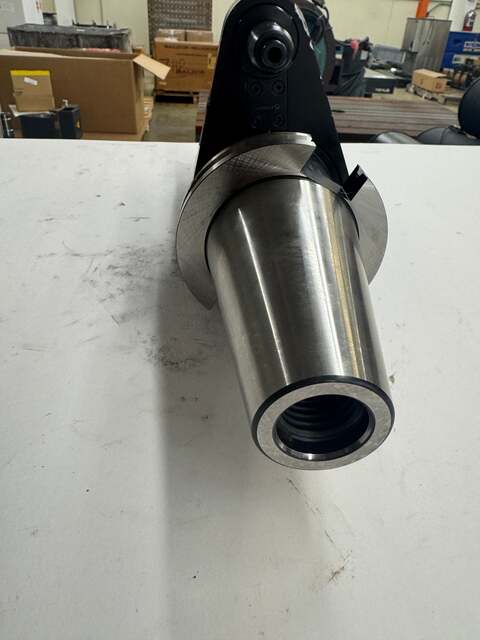

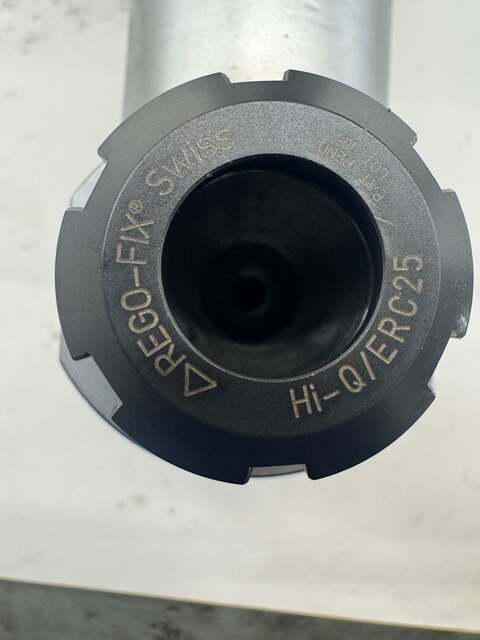

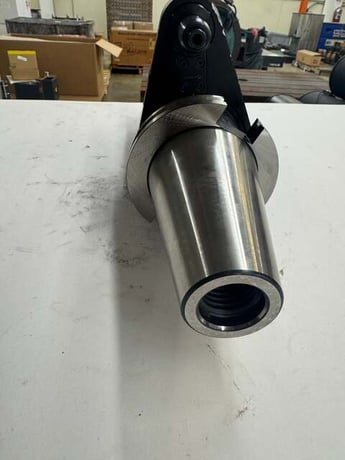

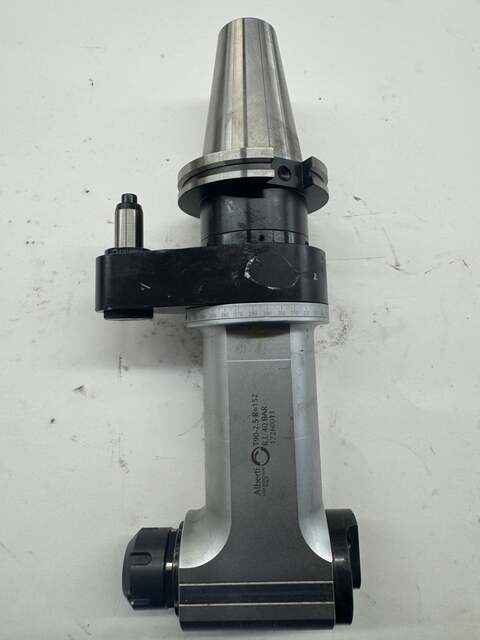

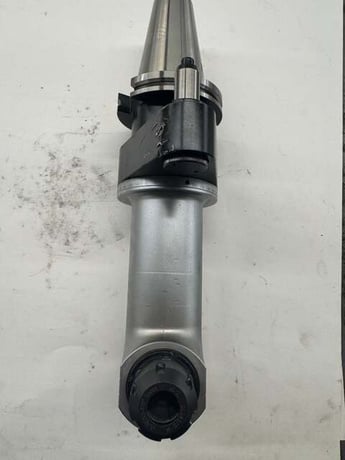

Used in CNC machining centers where compound angles or obstructed features require tool access beyond standard vertical spindle reach, the Alberti T90-2.5 is a 90-degree right angle head with a CAT40 taper input and ER25 collet output. The nameplate reads T90-2.5 with a coolant pressure rating of R.I. 40 BAR. The collet nut is marked Rego-Fix Swiss Hi-Q/ERC25, consistent with Alberti's integration of high-precision ER25 clamping hardware on this platform. Serial number 4013425S is visible on the body. The rotating scale graduated around the body allows indexed angular positioning of the output spindle. An anti-rotation block is present on the upper housing for positive ATC engagement and repeatable positioning during automatic tool changes. The T90-2.5 is part of Alberti's Neo Line modular right angle head series, manufactured in Saronno, Italy. New retail price for this model exceeds $6,000. The gear ratio on the T90-2.5 platform is 1:2.5, multiplying spindle speed at the output relative to the machine spindle input. Compatible with standard CAT40 machining centers equipped with an anti-rotation pin or dog. This unit carries serial number 4013425S and includes the Rego-Fix Hi-Q ERC25 collet nut as visible in the photos.

Stock # 0426-02121
