Ajax Tocco Magnethermic 71965A50 Mosfet Dual DC Power Supply Untested Surplus

Product Specifications

• Manufacturer: Ajax Tocco Magnethermic
• MPN / Model: 71965A50
• Product Type: Mosfet Dual DC Power Supply for RF Gate Drive Boards
• Board Assembly Number: G-02-10169-C1
• Output Voltages: +15V, -15V, +5V, +30V
• Onboard Transformer: Signal Transformer IF-6-12, Primary 115/230V 50/60Hz, Secondary 6V/12V 6VA
• Serial Number: N051525A7

Product Description

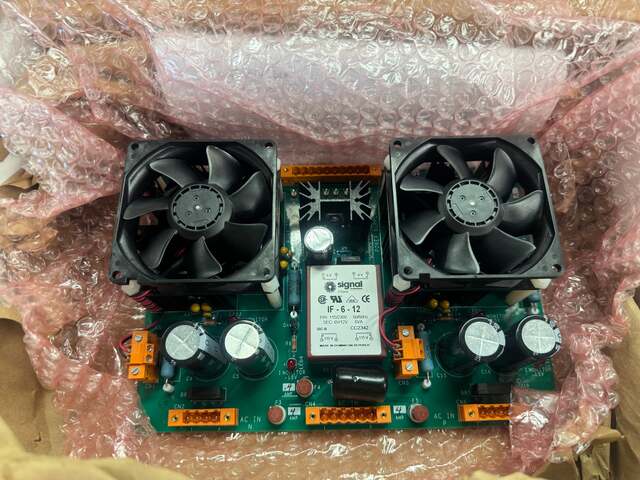

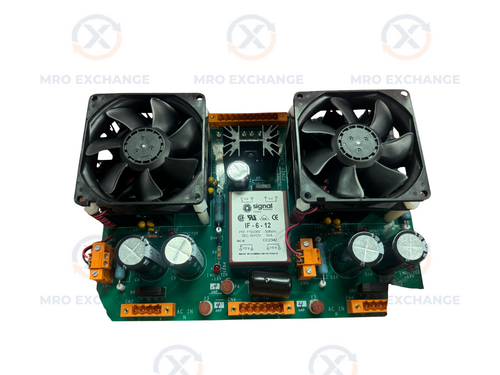

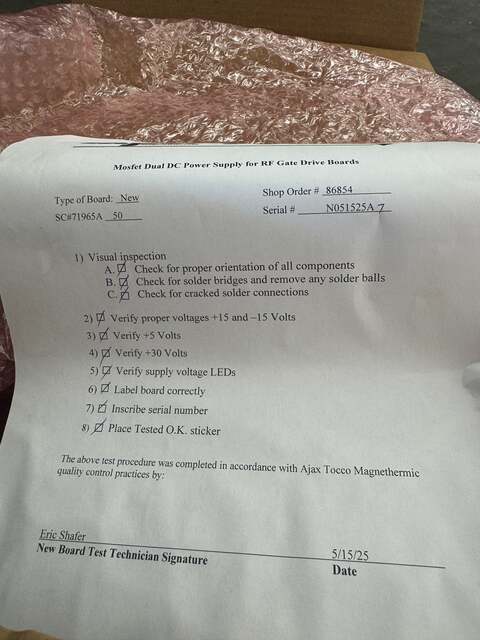

This Ajax Tocco Magnethermic Mosfet Dual DC Power Supply is identified by part number 71965A50, with board assembly number G-02-10169-C1 and serial number N051525A7. It is the dual DC power supply used to feed RF gate drive boards in Ajax Tocco induction heating systems. The board carries dual onboard cooling fans, multiple filter capacitors, supply voltage monitor LEDs, fused AC inputs, and a Signal Transformer IF-6-12 rated for 115/230V primary and 6V/12V secondary at 6VA. Confirmed output rails include +15V, -15V, +5V, and +30V, with separate AC IN N and AC IN P input terminals. Buyers sourcing a replacement or spare for an Ajax Tocco induction power supply can match this unit using the 71965A50 part number, the G-02-10169-C1 assembly number, or the serial number printed on the board paperwork.
