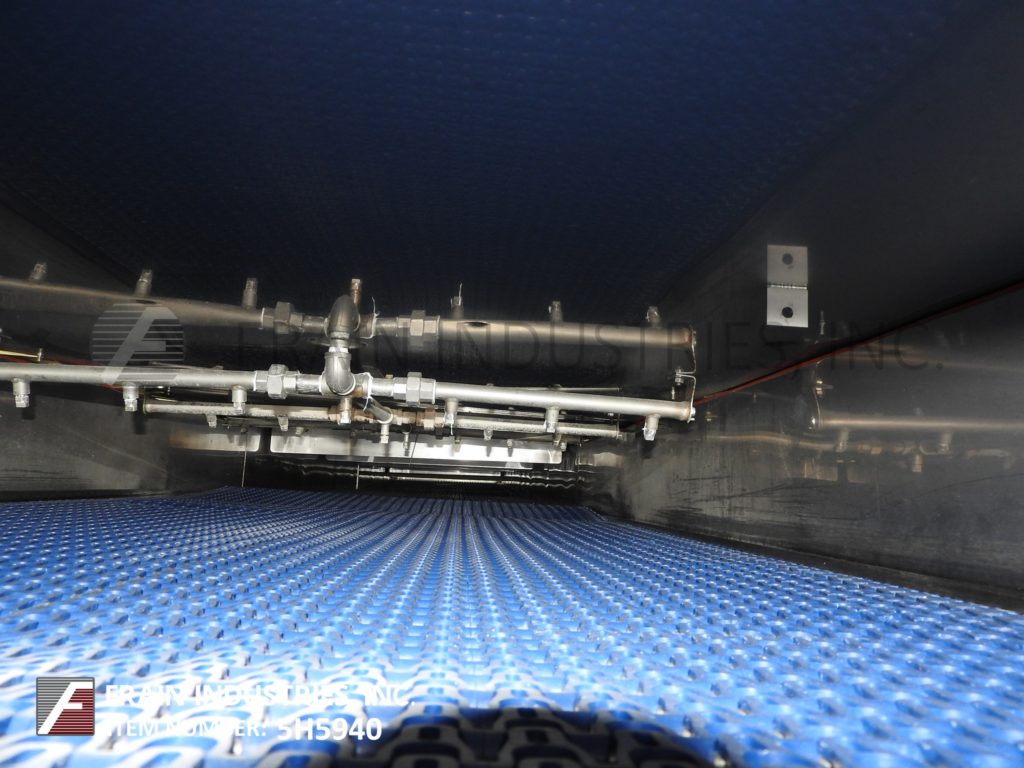

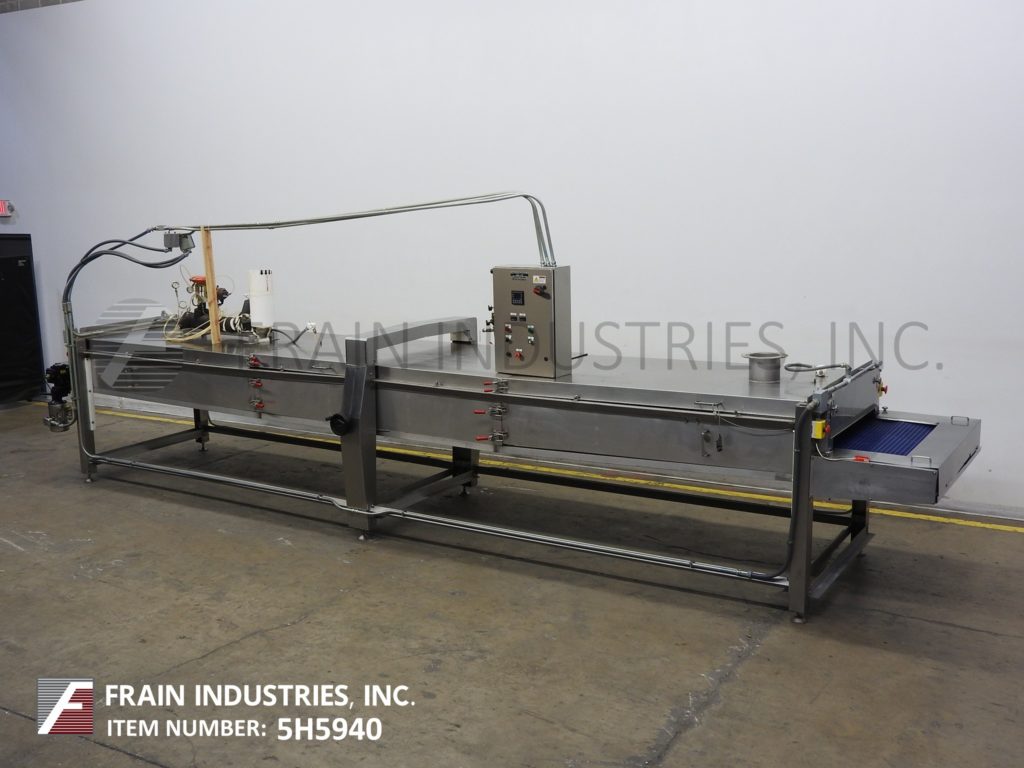

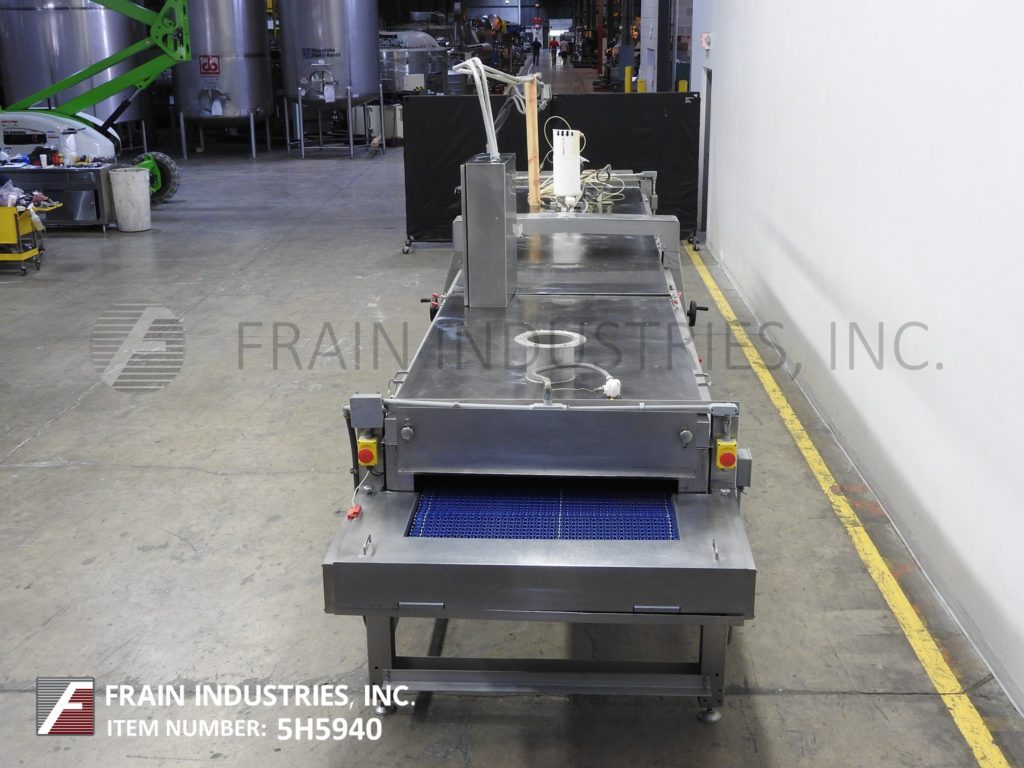

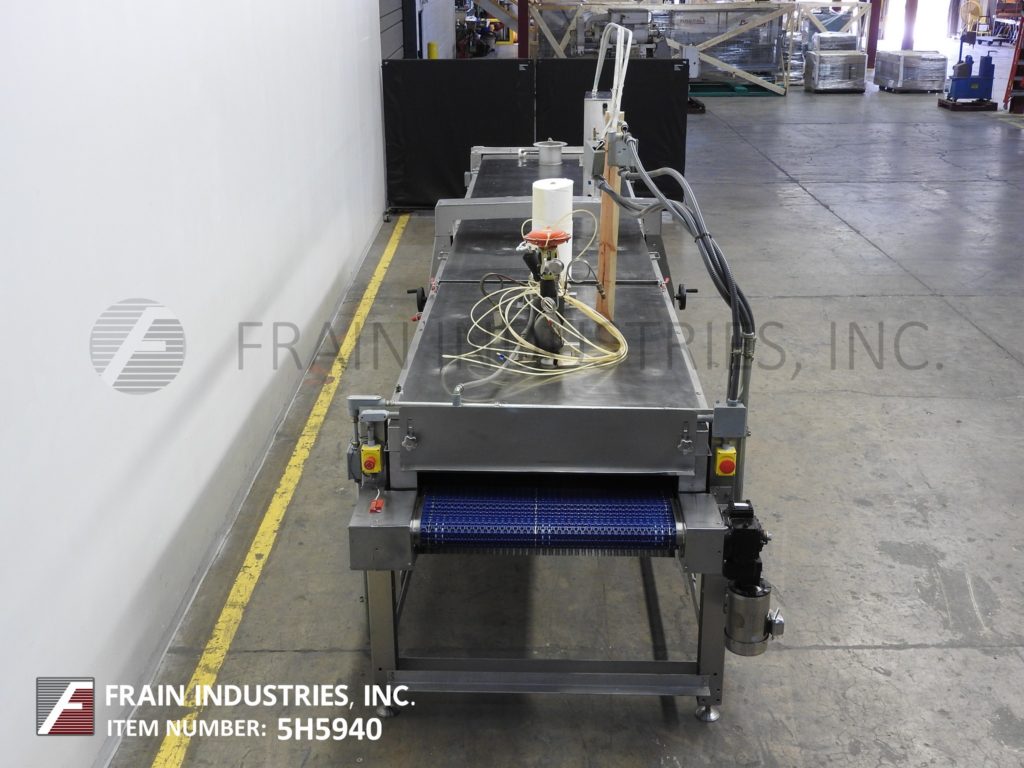

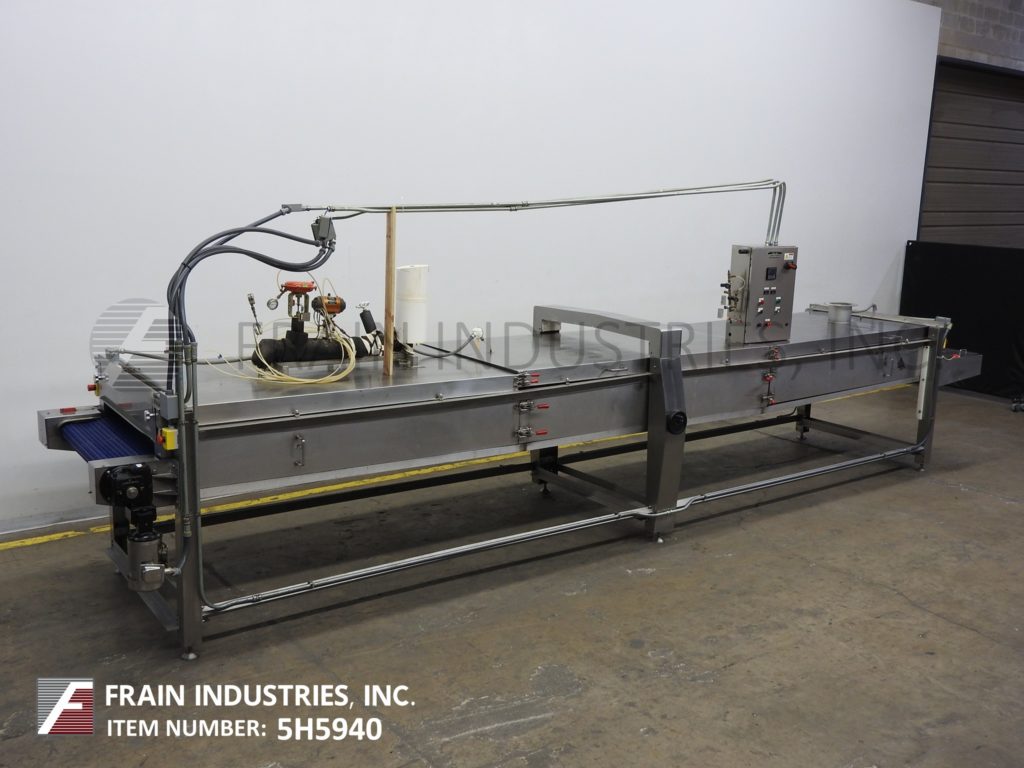

Air Products, Model Freshline Quick Start, stainless steel, Liquid Nitrogen freeze tunnel. Equipped with 278" long (3 section) tunnel chamber, 40" wide x 4" high aperture with adjustable height shield, flip-up access doors, side hand cranks for lowering the bottom section of tunnel and 8" OD exhaust duct. Link belt conveyor 38" wide x 315" long. Quick Freeze system with liquid nitrogen spray nozzles for direct contact with product. Controller with operator interface, digital readout for freezer and exhaust temperature, product retention time and conveyor speed controls. E-stops on each end of the tunnel. Mounted on height adjustable legs. Rates dependent on materials, application, and machine configuration.
OAD: 331" L x 66" W x 63" H
