For Sale by Victory Machinery Exchange
Surplus Record Dealer Since 1957
Location: Lake Forest, IL
Contact Neal Hoffenberg
Phone Number: 847...> Show Phone Number 847-918-9797
Let the seller know you found their listing on Surplus Record!

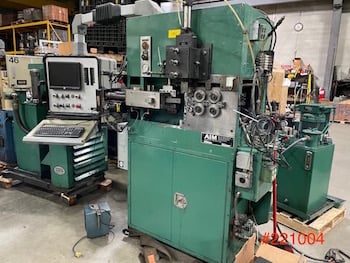

Description
Catalog Specs:
Catalog Specs:Wire Feed Speed: 75”/secMaximum Wire Size: .080”Minimum Wire Size: .026”Feed Length: UnlimitedCoil Diameter Range: 3x Wire Diameter to 1.75”Power: 240 volt 3 PhaseMachine Dimensions: Length: 48” Width: 29” Height: 80”Gross Weight: 3,600 lbs.
Equipped With:
Equipped with:Feed Rolls (.026”, .047”, .072”), Wire Guides, Tool Holders5 Axis ServoVertical Forming Arbor3 Probe Cylinders2 Plane StraightenerLion Spring GageTooling
Location: Lake Forest
Catalog Specs:Wire Feed Speed: 75”/secMaximum Wire Size: .080”Minimum Wire Size: .026”Feed Length: UnlimitedCoil Diameter Range: 3x Wire Diameter to 1.75”Power: 240 volt 3 PhaseMachine Dimensions: Length: 48” Width: 29” Height: 80”Gross Weight: 3,600 lbs.
Equipped With:
Equipped with:Feed Rolls (.026”, .047”, .072”), Wire Guides, Tool Holders5 Axis ServoVertical Forming Arbor3 Probe Cylinders2 Plane StraightenerLion Spring GageTooling
Location: Lake Forest
Get Your Price from Victory Machinery Exchange!
