Description

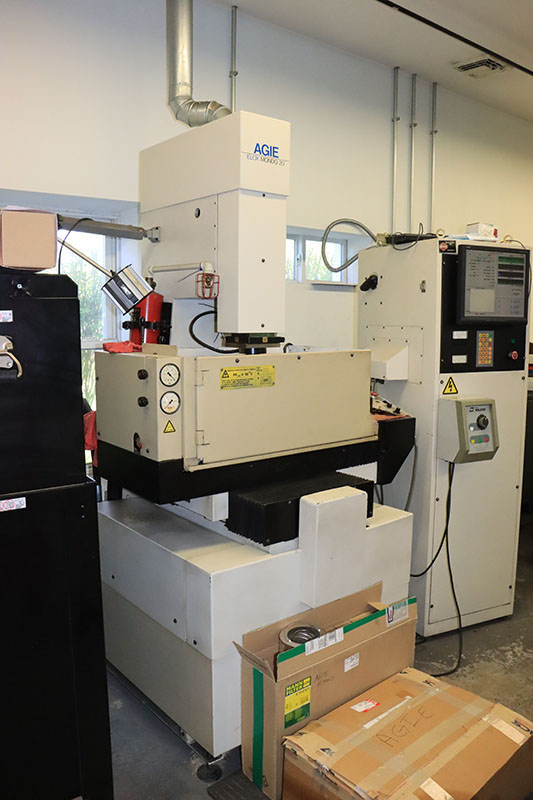

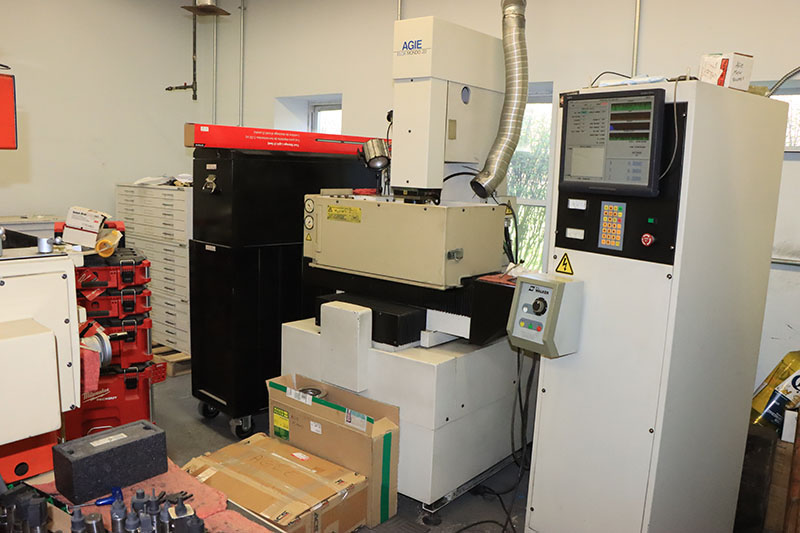

AGIE MONDO 20 CNC RAM TYPE EDM
** MADE IN USA MACHINE **
S/N: 000001… NEW: 1995
TRAVELS:
X AXIS ......................... 11.8"
Y AXIS ......................... 9.8"
Z AXIS ......................... 9.8"
WORKTANK INNER DIMENSINS ....... 25" x 17" x 10.6"
WORK TABLE ..................... 15.7 x 11.8"
THROAT CLEARANCE ............... 14.3"
MAX. WORKPIECE WEIGHT .......... 440 LBS.
PLATEN TO TABLE CLEARANCE ...... 10.6" TO 20.4"
MAX. ELECTRODE WEIGHT .......... 55 LBS.
MINIMUM COMMAND UNIT ........... 0.00004"
DIELECTRIC FLUID RES. .......... 66 GALLONS
APPROX. DIMS (MACHINE) ......... 72" x 72" x 94"H
APPROX. DIMS. (AFII) ...........″6" x 46" x 85"H
APPROX. MACHINE WEIGHT .........″,000 LBS.
AGIE…"FUTURA II" CNC CONTROL
& POWER SUPPLY (40 AMP)
3-AXIS CNC (X, Y, Z)
CRT DISPLAY REPLACED WITH COLOR FLAT PANEL DISPLAY
OS OPERATING SYSTEM
RS232C INTERFACE… FLOPPY DISC DRIVE
PENDANT CONTROL
WIRED PRESENTLY FOR 230 VOLTS,
12 KVA, 15 FLA
EQUIPPED WITH:

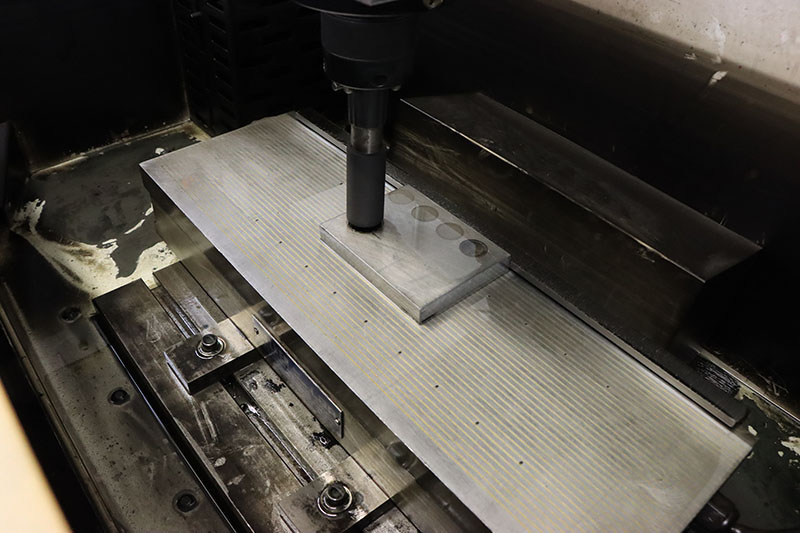

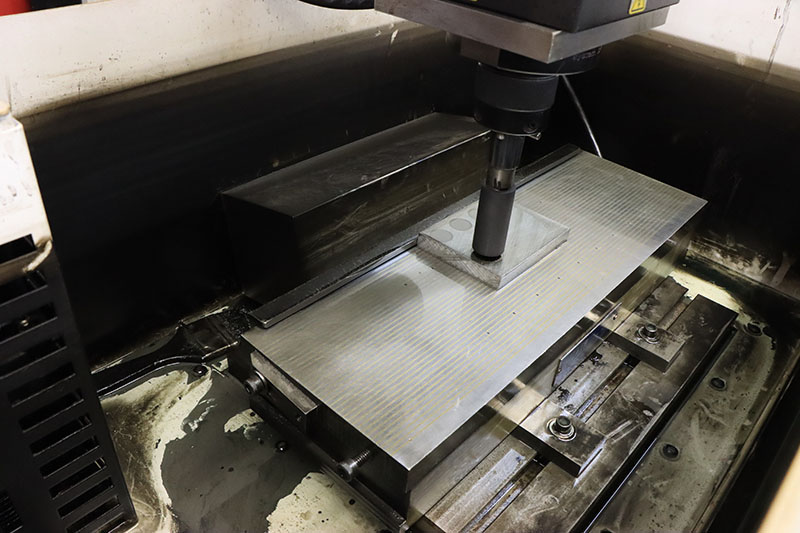

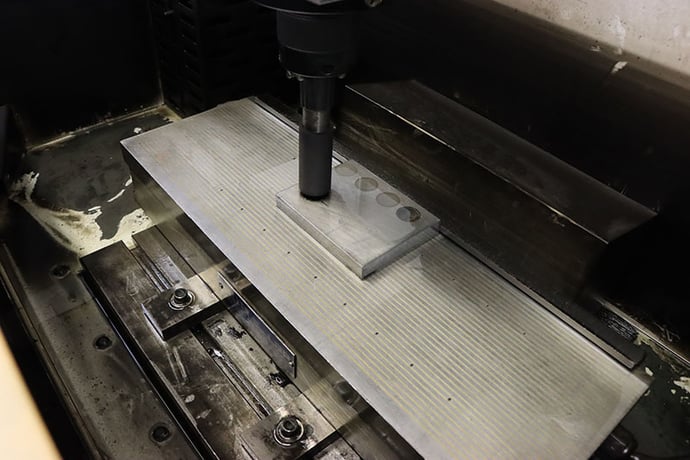

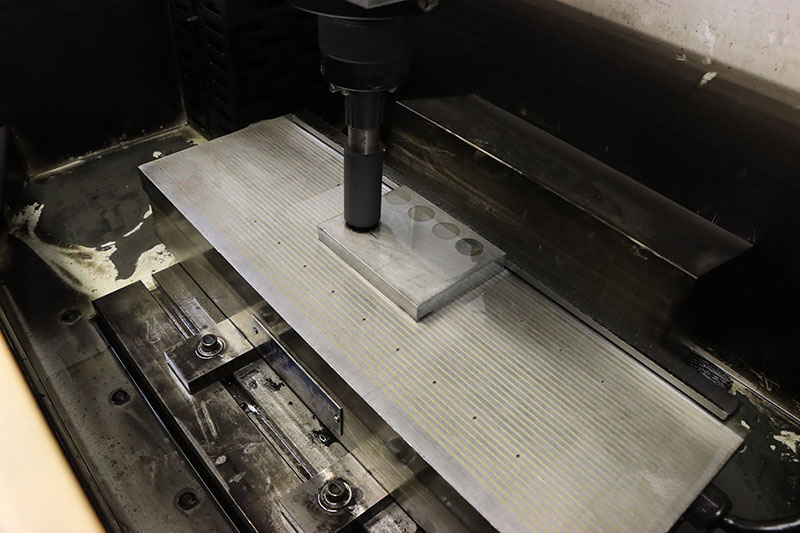

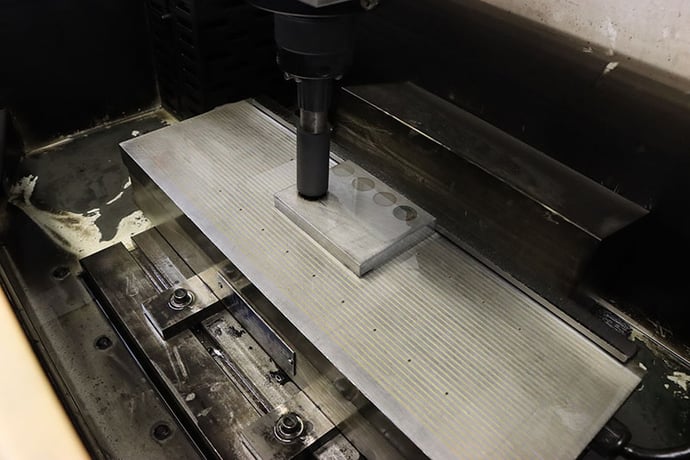

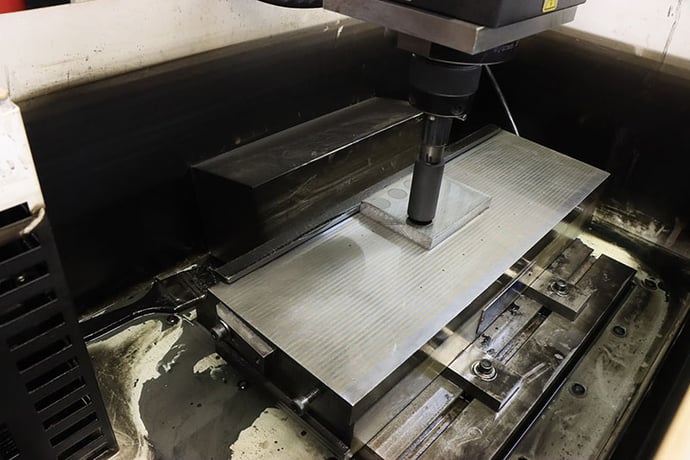

O.S. WALKER FINE-DIVISION…"LBP" ELECTRO-MAGNETIC CHUCK

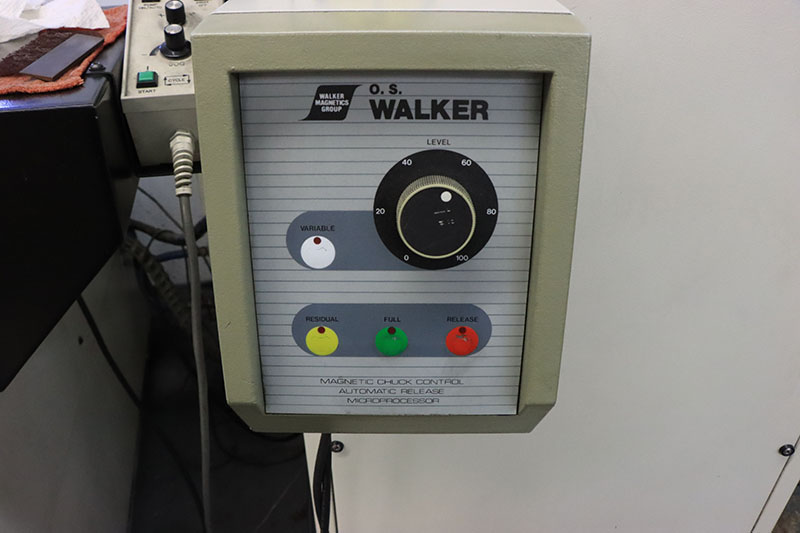

O.S. WALKER SMART SERIES VARIABLE HOLD NEUTROFIER CONTROL
CHUCK/WORKHOLDING UNIT, ON RAM
WORK LIGHT
FIRE EXTINGUISHER
** LOCATION: HARRISON, N.J. **
** ONE OWNER MACHINE - BEAUTIFUL **
** EXCEPTIONAL CONDITION… APPEARANCE **
