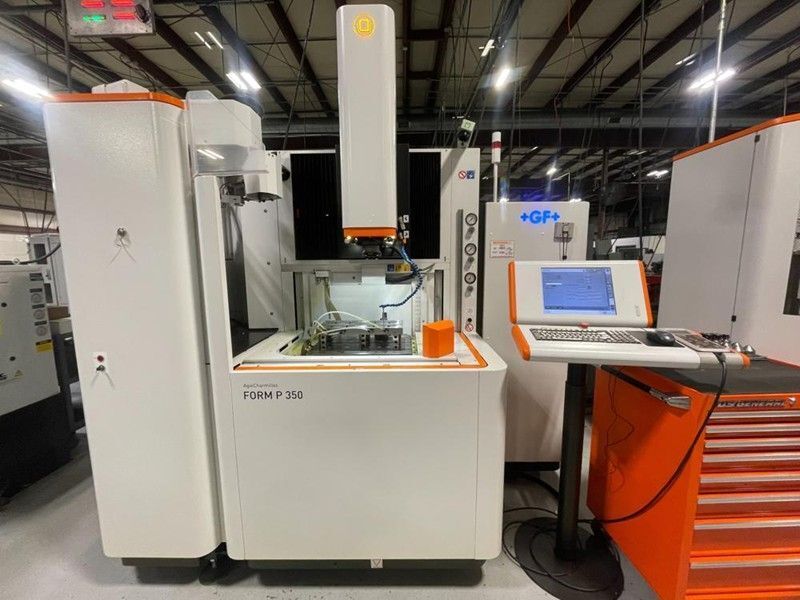

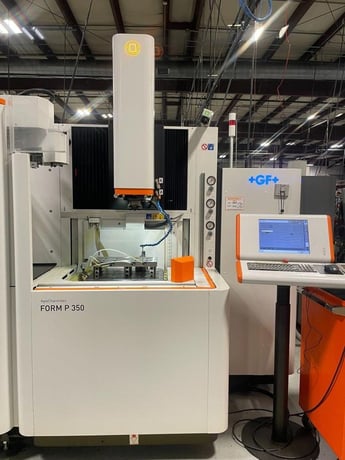

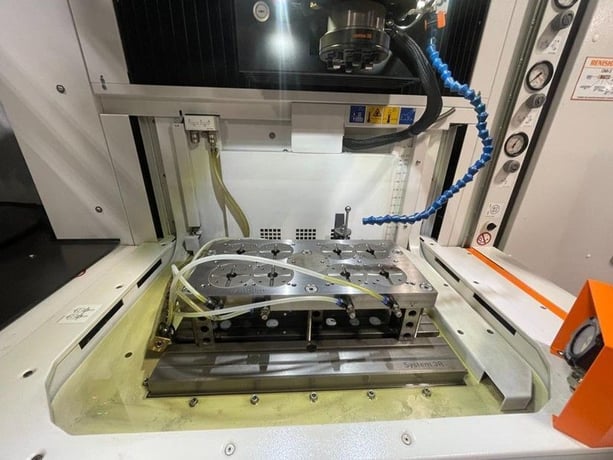

Agie Charmilles #Form-P-350, sinker Electrical Discharge Machine, 32 ATC, 13.78" X, 9.84" Y, 11.81" Z

The FORM P 350 die sinker EDM system was designed for extraordinary quality and accuracyAccuracy according to VDI (ISO) standardsDual measuring systemsProgrammable 3 sided drop tankNew HMI controlIPGS high efficiency 80 Amp generatorIQ module to reduce electrode frontal wearAccura C-axis integrated in the Z axis
Axis Travel (X, Y, Z): 13.78x9.84x11.81 in
Table Size (X, Y): 19.68x15.75 in
Traversing Speed (X, Y) Selectable: 78.74 in/min.
Traversing Speed (Z) 560 in/min
X,Y, Z Axes Display Resolution: 0.00002 in
Permissible Workpiece Weight: 1340 lbs
Internal Tank Dimensions (W x D x H): 31.49x20.47x13.78 in
Programmable Tank Level: 0 - 12.01 in
Distance Table to chuck min/max: 5.9" - 17.7" in
Accura C-axis Accuracy:
Accura C-axis rotation speed 0 - 100 rpm
Max. Current Load for Accura C-Axis Static 104 amps/rotating 80 amps
Maximum Flushing Pressure C-axis 1.5 bar
Permissible Electrode Weight with/without
chuck: 110/220 lbs

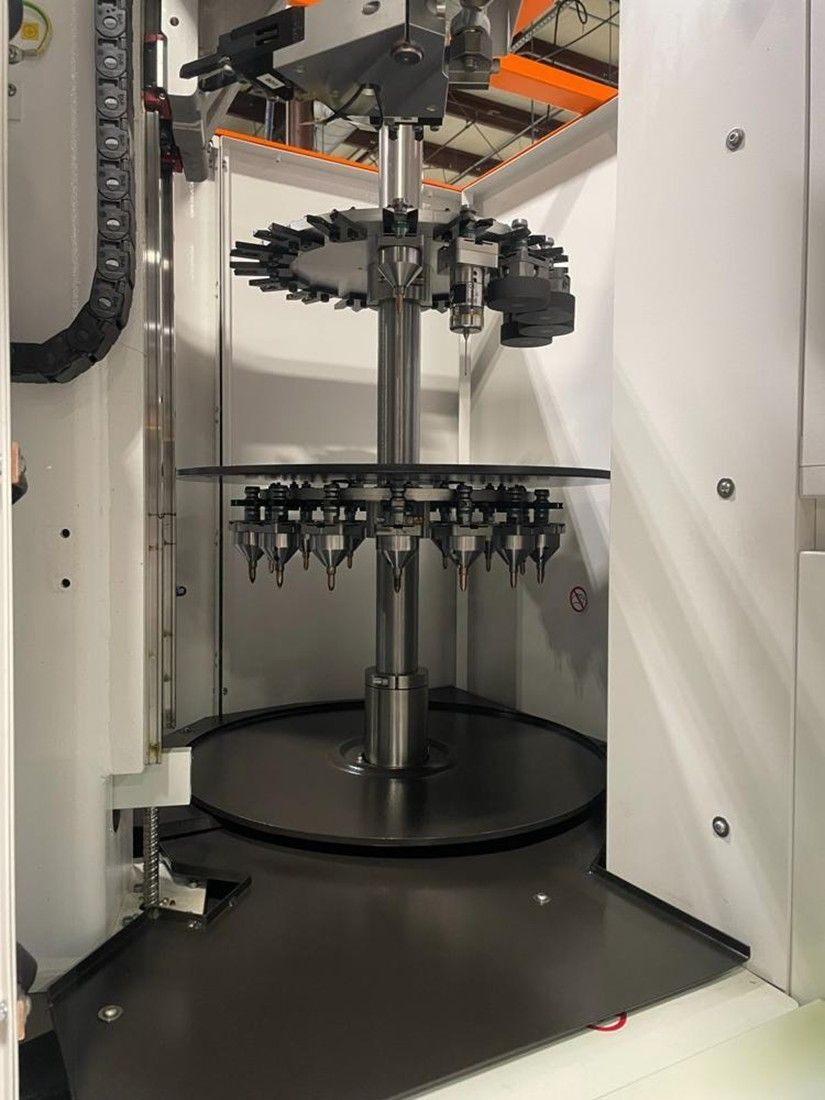

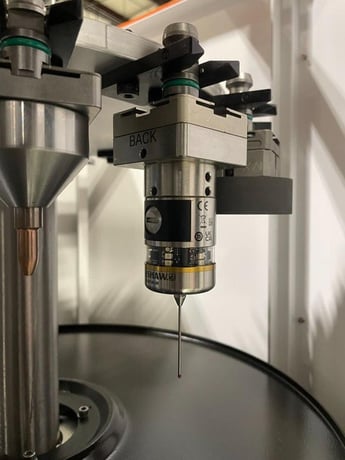

Max. Allowable Tool Weight for
Toolchanger: 11 lbs per tool change position
Dielectric Capacity: 108 gallons
Heat Exchanger Standard
Number of dielectric filters 4 paper cartridges
Generator: ISPG
Peak Amperage: 80 amps (140 optional)
Surface Integrity: No white layer
Surface Finish: Down to 0.08 Ra m
Control: New HMI
Operating System Windows7
CNC Control Processors: Celeron 2.2 GHz
Keyboard 101 Standard
Display: 15 inch LCD Touch screen
Machine Dimensions (X,Y,Z) 74.80x66.54x99.29 in.
Machine Weight: 6000 lbs

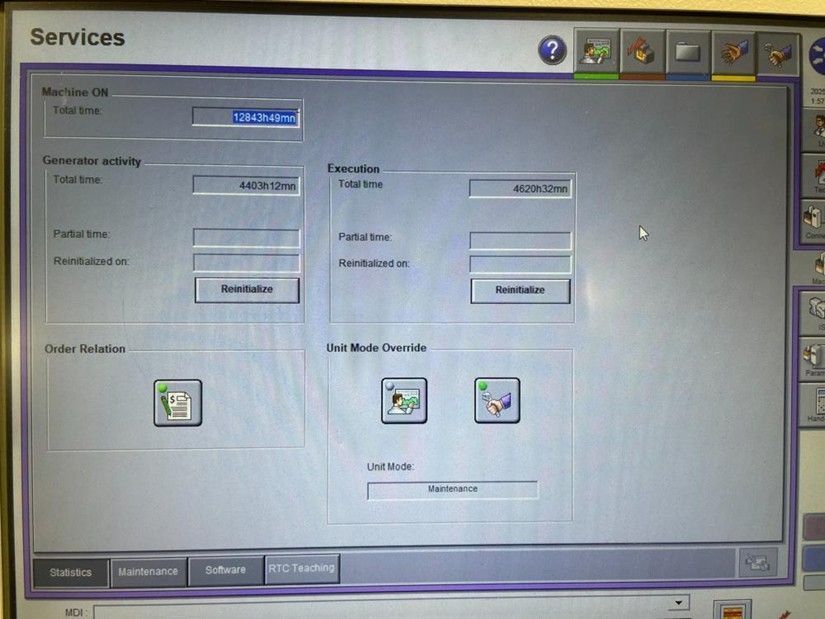

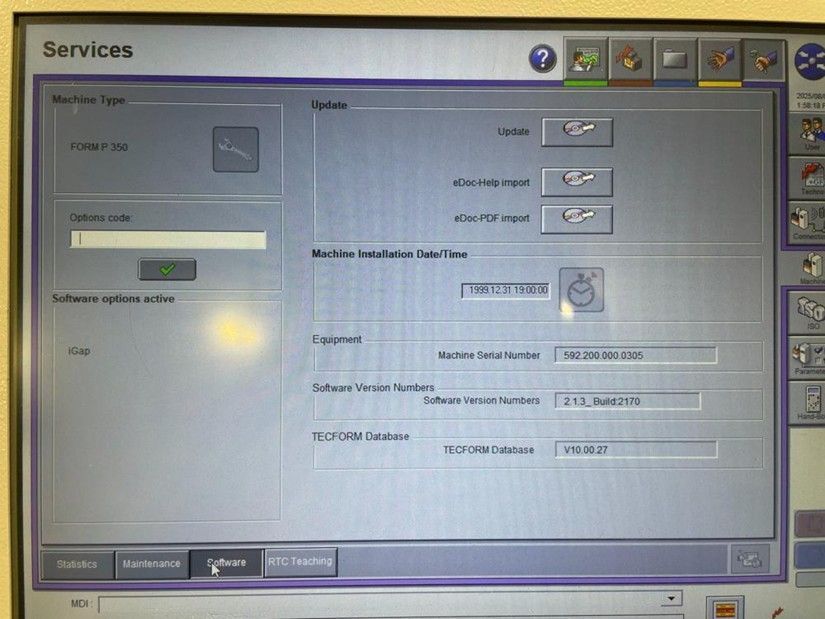

NUMERICAL CONTROL - New HMI Diesinker Win10 - AC FORM HMI (HUMAN MACHINE INTERFACE)
The numerical control has a high performance multi-processor Celeron 2.2 GHz with:
2Gb of RAM which provides fast processing with a high level of reliability.
WINDOWS 10 32 bit and allows for several tasks to be processed simultaneously. With
2 USB ports
Ethernet RJ45 connection standard, it gives flexibility in communication from the operator.
101 alphanumeric standard PC keyboard allows input for the operator as easy as using a standard PC
15" TFT touch screen allows doubles as a mouse input from operator touch and visual output monitor.
64 Gb Solid State hard drive allows enough storage capacity to store vast amounts of jobs files in a easy Windows Explorer
style format.
