Agie Charmilles #Drill-300, Electrical Discharge Machine small hole, 23.6" X, 15.8" Y, 17.72" Z, tilting head, rotary table, 2015

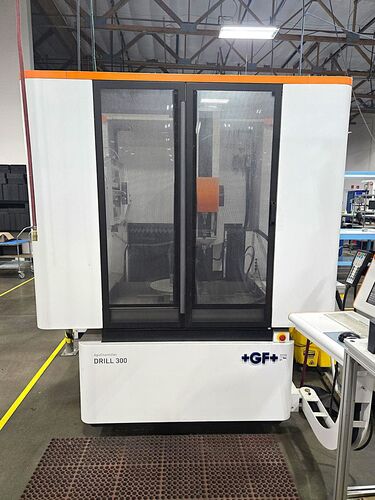

2015 AGIECHARMILLES DRILL 300
SPECIFICATIONS:
ELECTRODE DIAMETER (MIN)... 0.012"
ELECTRODE DIAMETER (MAX)... 0.118"
WORK WIDTH................. 13.78"
WORK LENGTH................ 12.6"
X-AXIS TRAVEL.............. 23.6"
Y-AXIS TRAVEL.............. 15.8"
Z-AXIS TRAVEL.............. 17.72"
MAX WORKPIECE WEIGHT....... 55 lb
Dimensions................. 91.34" x 74.8" x 85.83"H
Weight..................... 5,512 LBS
EQUIPPED WITH:

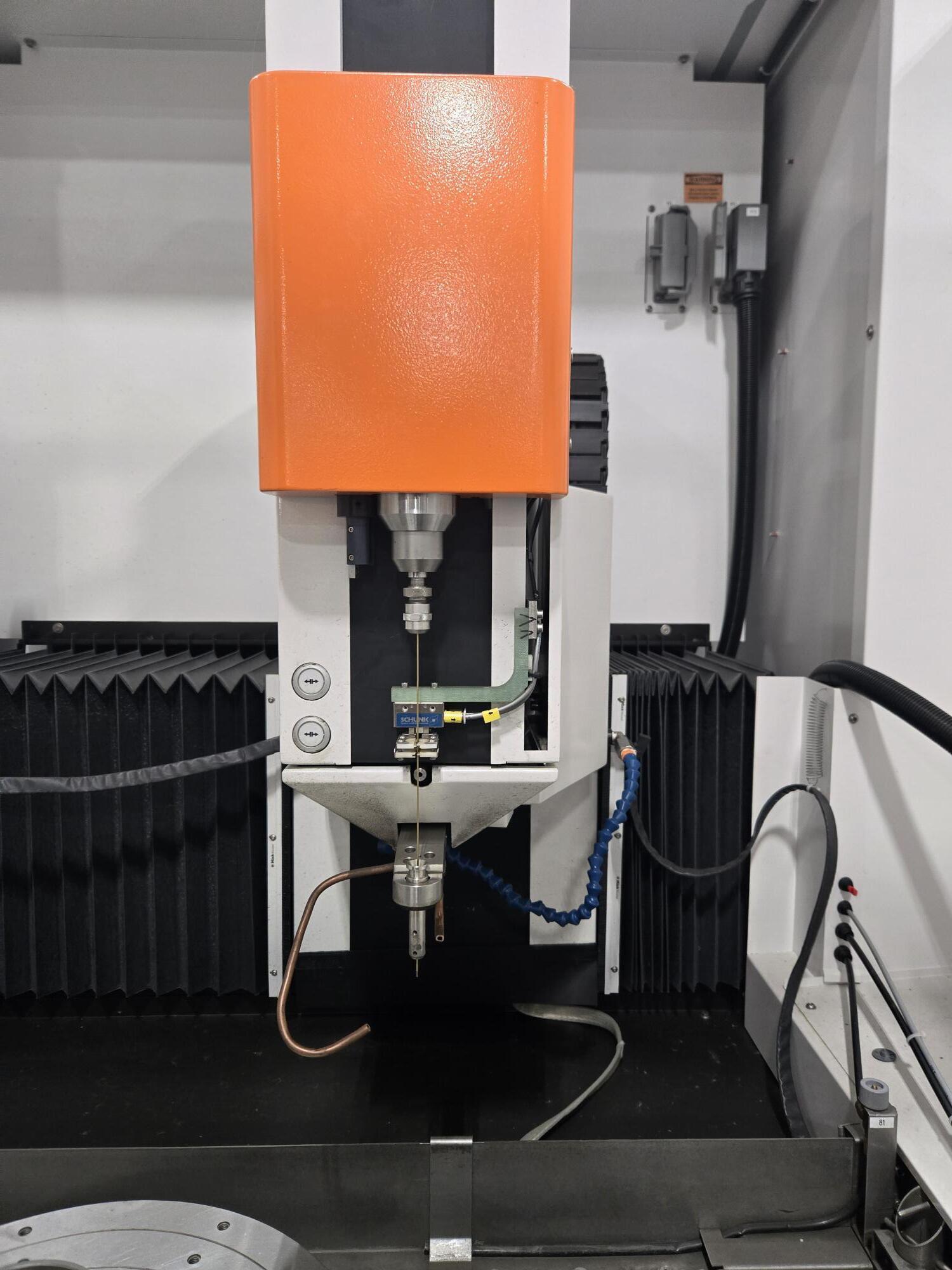

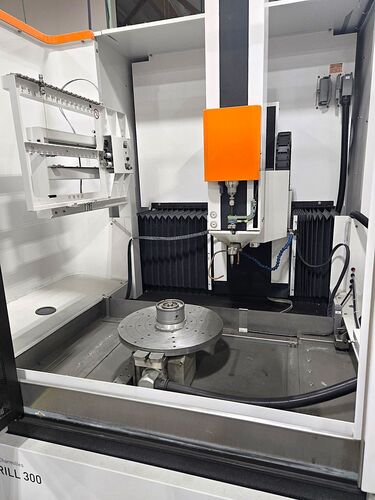

MACHINE HAS TILTING HEAD CAPABILITY AND ROTARY TABLE
TILTING HEAD CAPABLE: +/- 100 DEG / 0 - 360 DEG

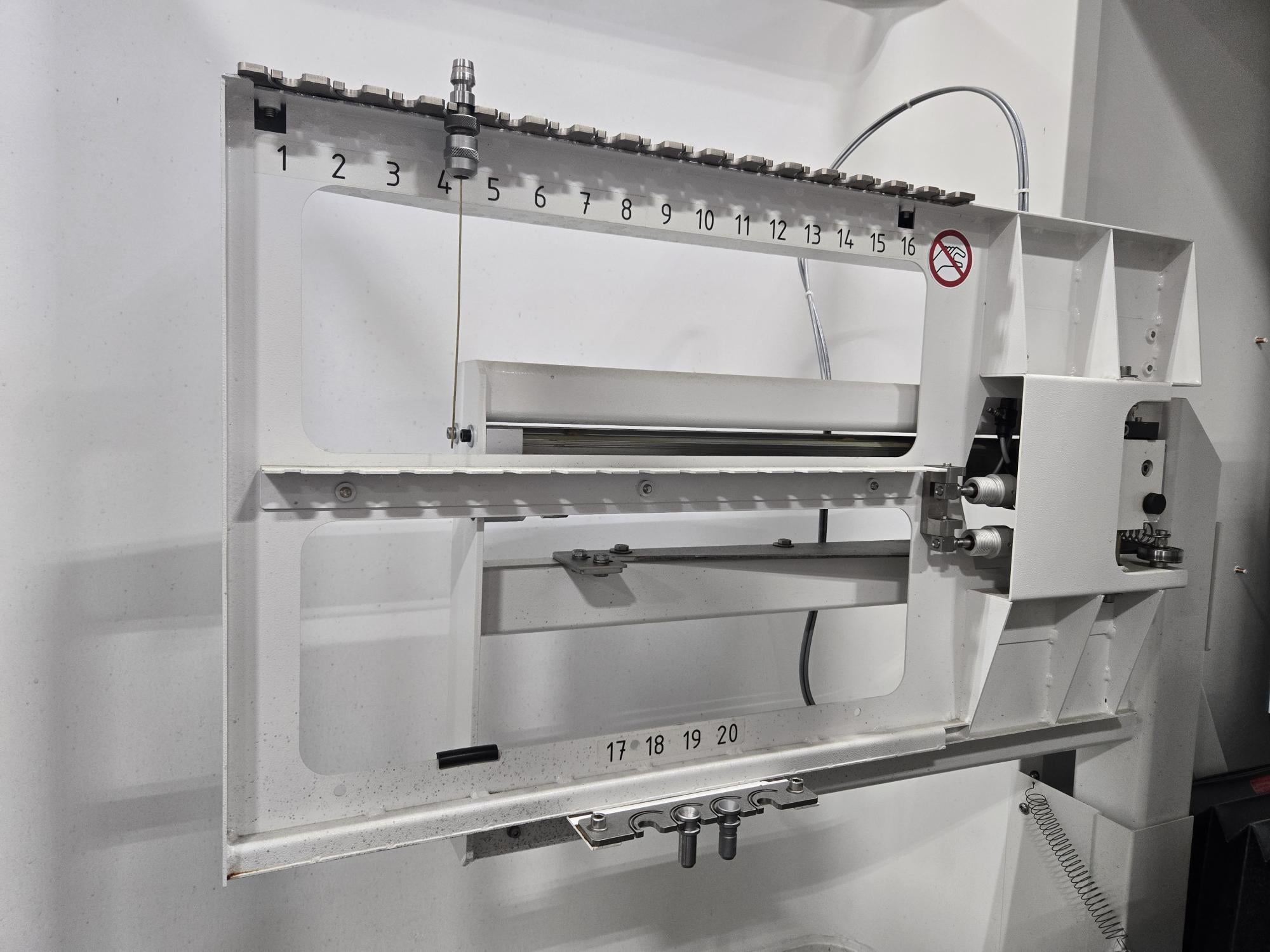

20 POSITION ELECTRODE CHANGER

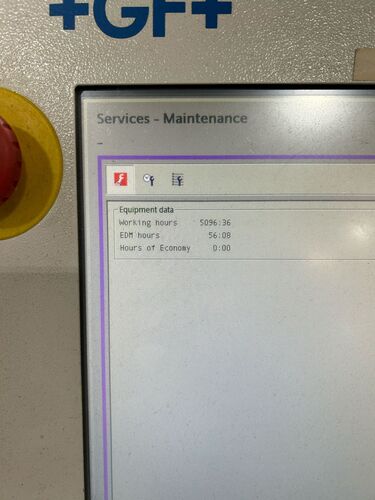

MACHINE CAME OUT OF A GENERAL ELECTRIC FACILITY. HAS VERY LITTLE TIME OF USE.
FROM BROCHURE:
THE DRILL 300 EASILY DRILLS COOLING HOLES IN TURBINE BLADES
THE WINNING SOLUTION FOR COOLING HOLE MACHINING OF COMPENENTS IN AIRCRAFT ENGINES
WITH SIX-AXIS CONFIGURATON, HOLES WITH DIFFERENT POSITIONS AND ANGLES CAN BE FREELY PROGRAMMED AND MACHINED, ALLOWING FOR GREATER PART FLEXIBILITY AND DESIGN. SINGLE SETUP MACHINING REDUCES UNPRODUCTIVE TIME.
