Advantage Sentra Series #SRV-1045, temperature control unit, 1 HP, 230 V., new, 2025

Description

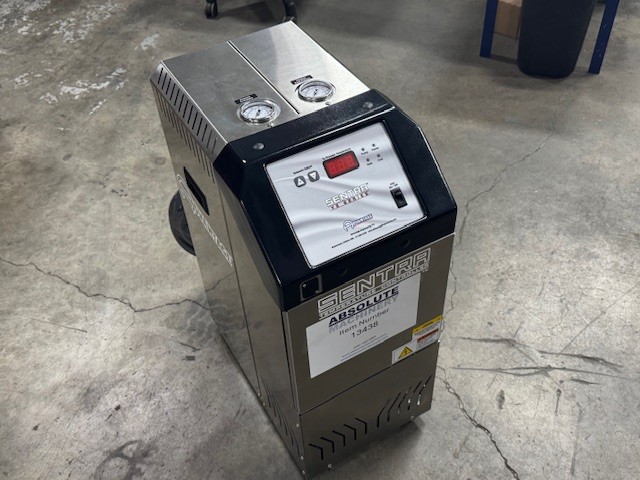

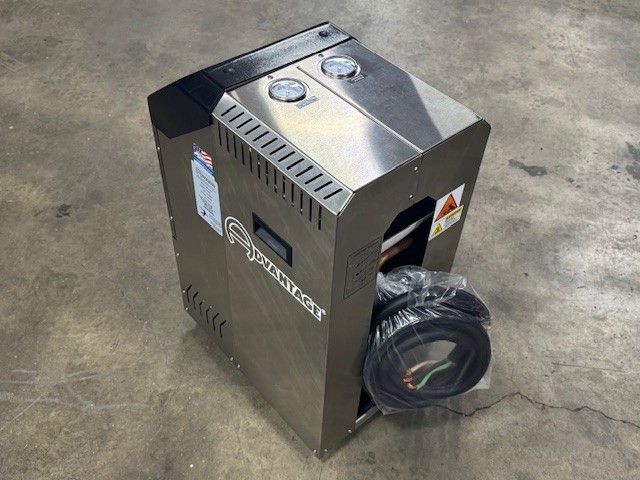

The 1 HP Advantage Sentra Series Temperature Control Unit Model SRV-1045 is an efficient and robust solution for precise temperature regulation in industrial applications. This unit operates at 230V and features a 10 kW heater, making it well-suited for demanding environments. It is equipped with a 1 HP process pump capable of delivering a flow rate of 45 GPM at a pressure of 30 PSI, ensuring consistent and reliable thermal management. Designed with user convenience in mind, the unit incorporates a VE Series control system to maintain temperatures between 32F and 250F. It includes a solenoid cooling valve with a size of 3/8 inch for effective cooling control. The compact dimensions of 29 1/4 inches in height, 12 1/2 inches in width, and 19 inches in depth allow for easy integration into existing setups, while its shipping weight is 208 lbs. The Advantage Sentra Series is built for efficiency and durability, suitable for various plastic processing and other industrial applications where temperature precision is critical. With a full load amperage of 27.18 and designed for a 230/3/60 power supply, this temperature control unit represents a reliable addition to any production line.

Specifications

Model: SRV-1045 230V
Heater Kw: 10
Process Pump Hp: 1
Process Pump Gpm: 45
Process Pump Psi: 30
Cooling Valve Type: Solenoid
Cooling Valve Size In: 3/8

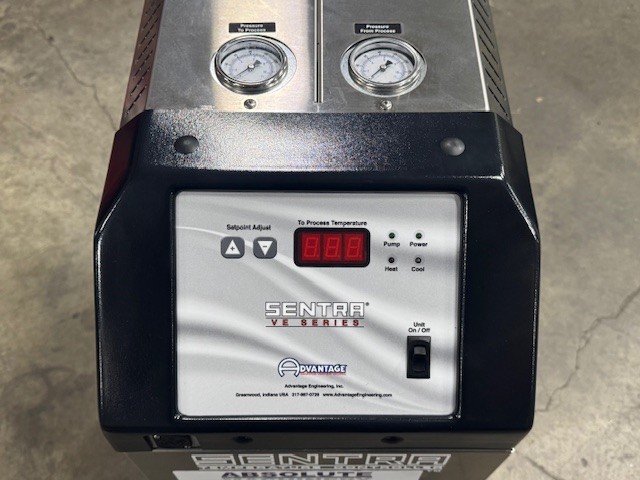

Control: VE Series
Max Temperature: 250F
Min Temperature: 32F
Height In: 29 1/4
Width In: 12 1/2
Depth In: 19
Shipping Weight Lbs: 208
Full Load Amperage: 27.18
Voltage: 230/3/60
