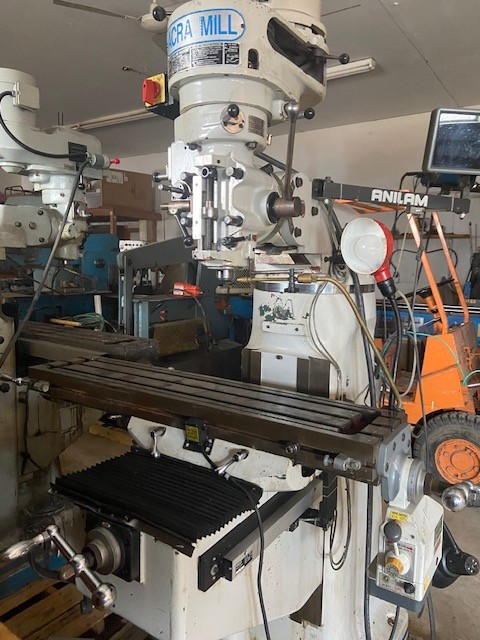

Acra #AM-2S, vertical mill, step pully, 9" x42"table, Anilam control

SPECIFICATIONS:

Table Size: 9” x 49”
Longitudinal Travel (X-Axis): 35-1/2”
Cross Travel (Y-Axis): 12-1/2”
Knee Travel (Z-Axis): 16”
Overarm Travel: 16-1/4”
T-Slot Size and Centers: 5/8”, 2-1/2”

Drilling Capacities:
Cast Iron: ¾”
Steel: 5/8”
Face Milling: 3”
End Milling: ¾”
Spindle Taper: R8 or NT-30
Diameter of Quill: 3-3/8”
Number of Speeds: 16
Spindle Speeds(RPM): 80-5,440
Spindle Feeds: .0015/.0003/.0006 inch/rev.
Spindle Travel: 5”
Spindle to Table: 2-3/4” ~ 17-1/2”
Spindle to Column: 5” ~ 17-3/8”
Horsepower: 2 HP
Voltage: 220V AC ~ 3 PH

Standard Equipment:

One-piece draw bar for Spindle Precision lead screws on X, Y axis
Front dust cover Work lamp
One-shot Lubrication System Mist Coolant

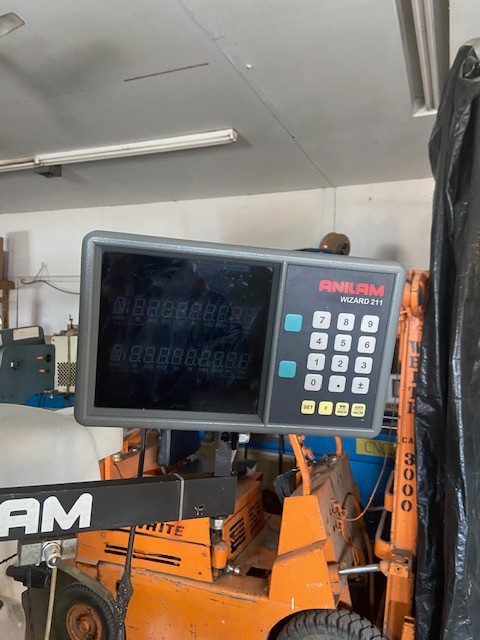

Collet Holder with 5 collets Analam 2 Axis Readout
