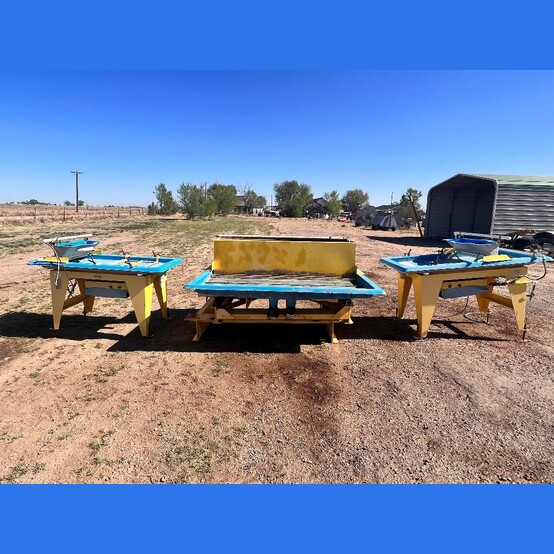

Action Instruments Mining #M7 and #M10, Wave Table Package, 3 Units, Gold Concentrating Tables

Action Mining Wave Table Package

• Make: Action Mining
• Model: M7 & M10
• Type: Wave Tables
• Year: 2010
• Condition: Used - M7 Tables in Good Condition, M10 Table Needs some Work
• Includes:
  • (2) Action Mining M7 Wave Tables
  • (1) Action Mining M10 Wave Table

• General Model Specifications:
  • M7 Wave Table:
    • Capacity: 1,500 - 2,500 lbs. of Head Ore Material Per Hour
    • Recovery of Gold Particles: Between 10 Mesh and Microscopic
      • 80-99% of Gold Recovery from Classified Black Sands
      • 92-99% of Gold Recovery From Small Batches of Classified Black Sands
    • Water Requirements: 5-12 GPM
      • 2 Adjustable Water Spray Bars
    • Table Top and Hopper Constructed of Fiberglass
      • Vacuum-Sealed and Gel-Coated in Blue Finish
      • Adjustable Table Top
    • Steel Frame with Yellow Powder Coated Epoxy Paint
    • Drive: Electric Motor

      • Power Output: 0.5HP
      • Voltage: 220 Volt

  • M10 Wave Table:
    • Capacity: 8 Tons Head Ore Per Hour
    • Recovery of Gol Particles: Between 10 Mesh and Microscopic
      • 80-99% of Gold Recovery from Classified Black Sands
    • Water Requirements: 5-20 GPM
      • 1 Adjustable Water Spray Bar
    • Table Top and Hopper Constructed of Fiberglass
      • Vacuum-Sealed and Gel-Coated in Blue Finish
      • Adjustable Table Top - Tilt and "Bump"
    • Steel Frame with Yellow Powder Coated Epoxy Paint - Positioned for Easy Gravity Feeding
    • Drive: Electric Motor
      • Power Output: 3HP
      • Voltage: 120/220 VAC

• Location: Central USA
