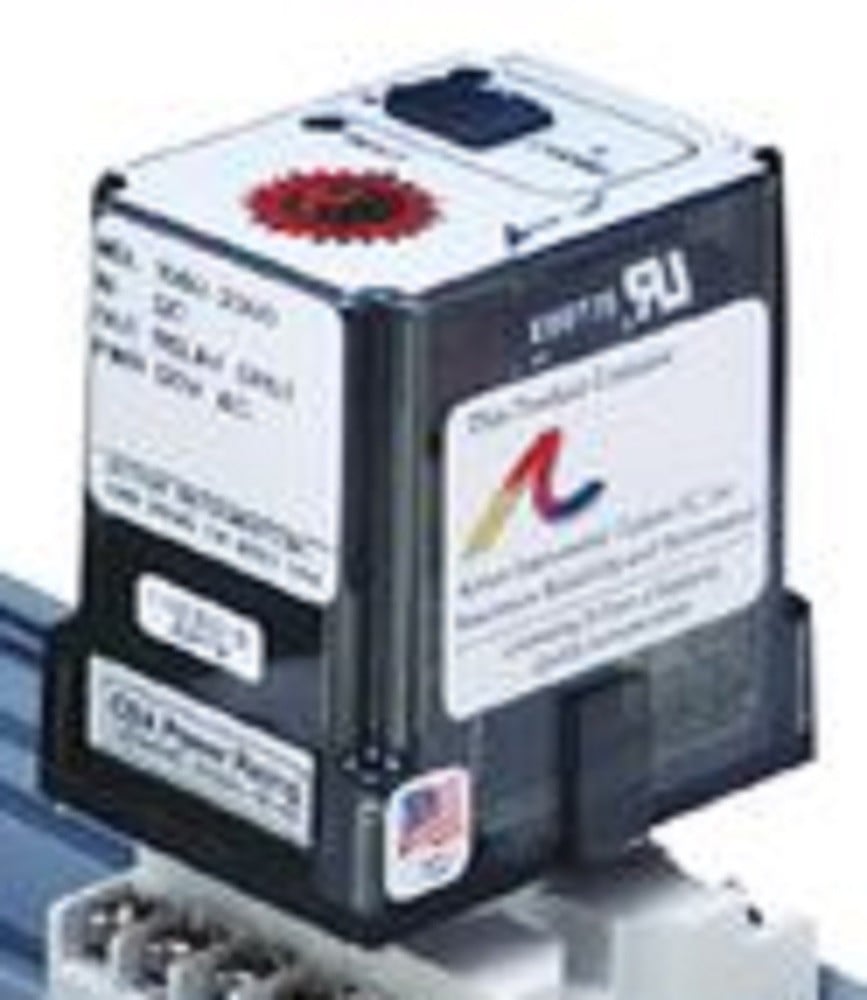

Action Instruments #AP1090-2000, Action Pak 1090-2000 Single Setpoint Limit Alarm, NEW

$417 USD

Request Formal Quote

Input: 0-20mA, Power: 120VAC. Output: Dual, SPDT (2 SPDT, 5A). Trip A: HI, B: LO. Latching: No, Failsafe: No. Deadband: A/B: 0.25%. Action Instruments AP1090-2000 Action Pak 1090-2000 Single Setpoint Limit Alarm - Invensys / Eurotherm / Action Instruments - Action Pak models AP1080 single setpoint and AP1090 dual setpoint limit alarms offer flexible, wide-ranging DC input capability. Voltage spans from 10mV to 200 volts and current spans from 1mA to 100mA can be field configured. Bipolar inputs are also accepted. Both models offer configurable latching, failsafe and HI/LO operation. The AP1080 and AP1090 also include 0.25%-50% adjustable deadbands and selectable 120/240VAC input power. Diagnostic LED - Models AP1080-2000 and AP1090-2000 are equipped with a dual function diagnostic LED. The green center LED indicates line power and input signal status. Active line power is indicated by an illuminated LED. If the center LED is off, check line power and the wiring connection. If the input signal is above 100% full scale, the LED will flash at approximately 8Hz. Below 0%, the flash rate is approximately 4Hz.. Action Instruments. Eurotherm. AP1090-2000.
