Manufacturer: Acra
Model: VMC-610
Year: 2000
Automatic Tool Changer: 16
Longitudinal" X: 23.6
Cross" Y: 18.9
Vertical" Z: 19.7
RPM: 8000
Stock # 3597
1 / 4
Click to zoom in
1 / 4
For Sale by Cleveland Machinery Sales Inc
Surplus Record Dealer Since 1984
Location: Cleveland, OH
Contact Frank Petitt
Phone Number: 216...> Show Phone Number 216-741-8900
Let the seller know you found their listing on Surplus Record!
Description

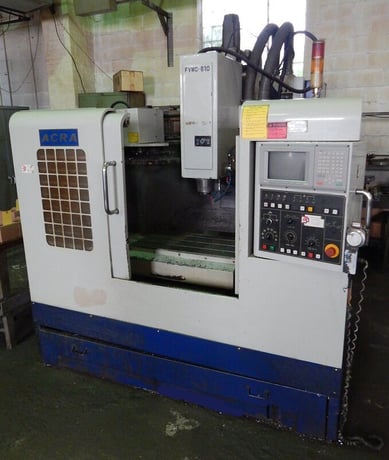

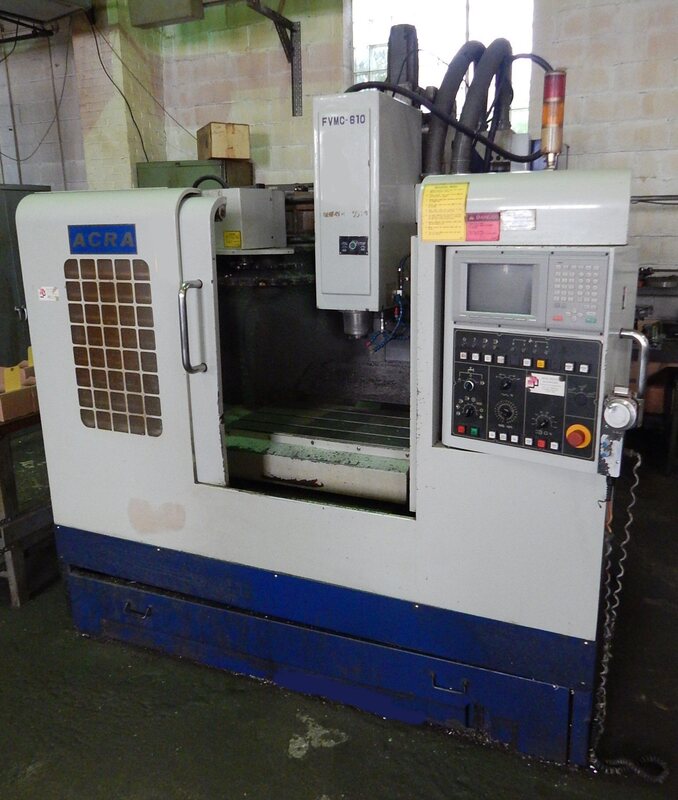

2000 ACRA VMC 610
SPECIFICATIONS:
X......... 23.6"
Y......... 18.9"
Z......... 19.7"
Power..... 10 hp
RPM....... 8,000 RPM
# ATC..... 16
Taper..... BT40
Table-W... 17.7"
Table-L... 31.5"
# Axis.... 3
Control... CNC (Mitsubishi)
EQUIPPED WITH:

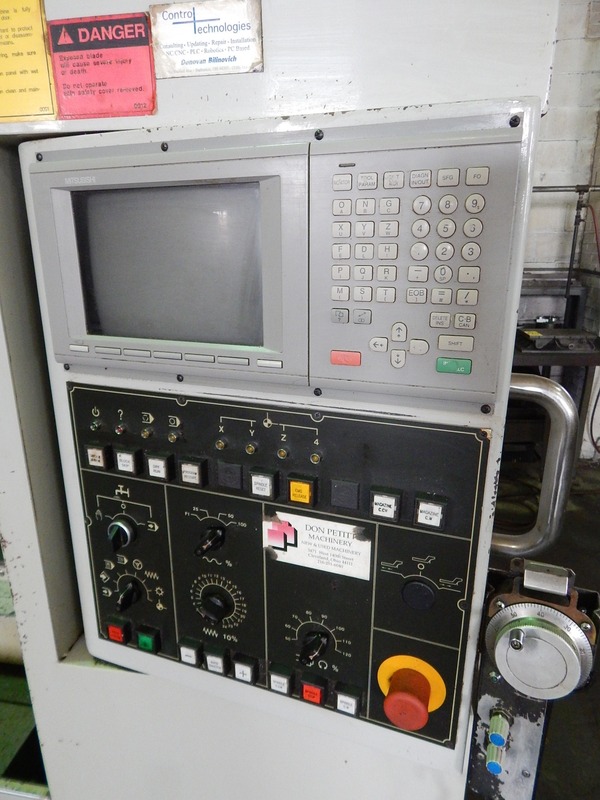

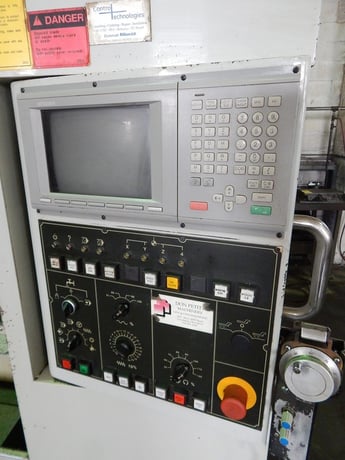

Mitsubishi Meldas CNC Control
Full Enclosure 16 Tool Carousel
Rigid Box Ways Worklight
AC Digital Drives Pilot Lamp
Ribbed Castings Levelling Bolts and Pads
No Table Overhang Manuals, toolbox
TABLE: Overall Size 31.5" x 17.7"
T Slots (#/W/P) 3 / .02" / 4.9"
Max Table Load 660 lbs.
TRAVELS: X / Y / Z 23.6" x 18.9" x 19.7"
Spindle to Column 18.9"
Spindle to Table 5.9" - 25.6"
SPINDLE: Taper BT-40
Speed 8000 RPM
FEEDRATES: Rapid X, Y / Z 590 IPM/472 IPM
Cutting Feedrate 0.04 - 196 IPM
ACCURACIES: Positioning +-0.0002"/12"
Repeatability +-0.0001"
NOTE: These accuracies with full table load
ATC: No. of Tools 16
Type of Tool Changer Carousel
Max Tool Dia./Length 3.1"/9.8"
Max Tool Weight 15.4 lbs.
MOTORS: Spindle Motor (30 min) 10 Hp
Axes 1.3 Hp
Coolant 1.2 Hp
OVERVIEW: Net Weight 8,800 lbs.
Footprint 95"x94"x97"
Power 15 KVA
Air Required 80 PSI
*SPECIFICATIONS PER MANUFACTURER'S LITURATURE, MUST BE VERIFIED
**2 MACHINES AVAILABLE**

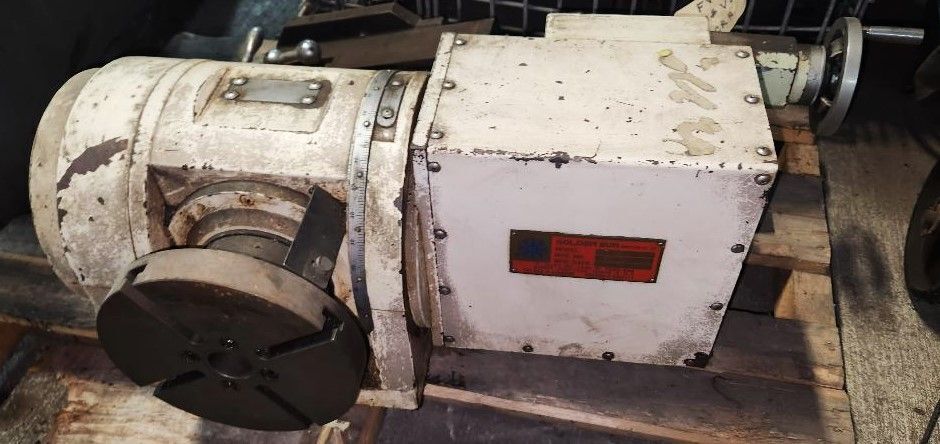

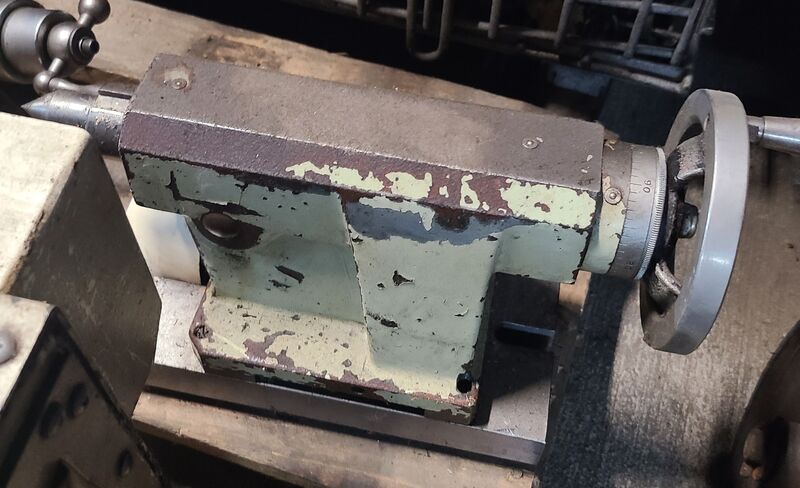

ALSO HAVE AVAILABLE AS AN OPTION :
GOLDER SUN MODEL#TNC200, SERIAL #982054,
4TH AXIS ROTARY TABLE, 8" CAPACITY WITH
T-SLOTTED FACE PLATE AND TAILSTOCK
SPECIFICATIONS:
X......... 23.6"
Y......... 18.9"
Z......... 19.7"
Power..... 10 hp
RPM....... 8,000 RPM
# ATC..... 16
Taper..... BT40
Table-W... 17.7"
Table-L... 31.5"
# Axis.... 3
Control... CNC (Mitsubishi)
EQUIPPED WITH:
Mitsubishi Meldas CNC Control
Full Enclosure 16 Tool Carousel
Rigid Box Ways Worklight
AC Digital Drives Pilot Lamp
Ribbed Castings Levelling Bolts and Pads
No Table Overhang Manuals, toolbox
TABLE: Overall Size 31.5" x 17.7"
T Slots (#/W/P) 3 / .02" / 4.9"
Max Table Load 660 lbs.
TRAVELS: X / Y / Z 23.6" x 18.9" x 19.7"
Spindle to Column 18.9"
Spindle to Table 5.9" - 25.6"
SPINDLE: Taper BT-40
Speed 8000 RPM
FEEDRATES: Rapid X, Y / Z 590 IPM/472 IPM
Cutting Feedrate 0.04 - 196 IPM
ACCURACIES: Positioning +-0.0002"/12"
Repeatability +-0.0001"
NOTE: These accuracies with full table load
ATC: No. of Tools 16
Type of Tool Changer Carousel
Max Tool Dia./Length 3.1"/9.8"
Max Tool Weight 15.4 lbs.
MOTORS: Spindle Motor (30 min) 10 Hp
Axes 1.3 Hp
Coolant 1.2 Hp
OVERVIEW: Net Weight 8,800 lbs.
Footprint 95"x94"x97"
Power 15 KVA
Air Required 80 PSI
*SPECIFICATIONS PER MANUFACTURER'S LITURATURE, MUST BE VERIFIED
**2 MACHINES AVAILABLE**
ALSO HAVE AVAILABLE AS AN OPTION :
GOLDER SUN MODEL#TNC200, SERIAL #982054,
4TH AXIS ROTARY TABLE, 8" CAPACITY WITH
T-SLOTTED FACE PLATE AND TAILSTOCK
