Acopian Regulated Power Supply B24G210

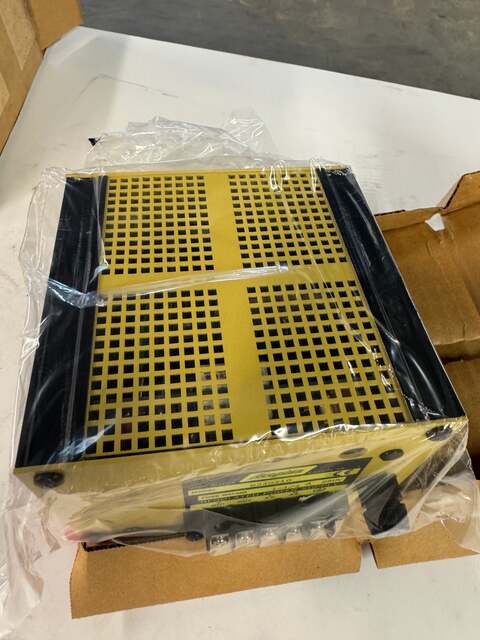

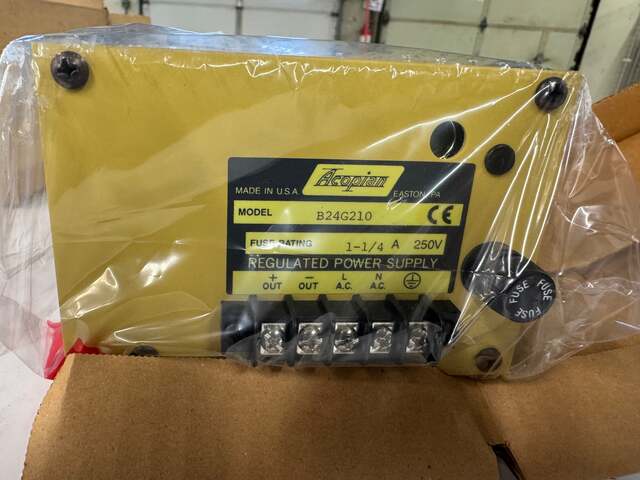

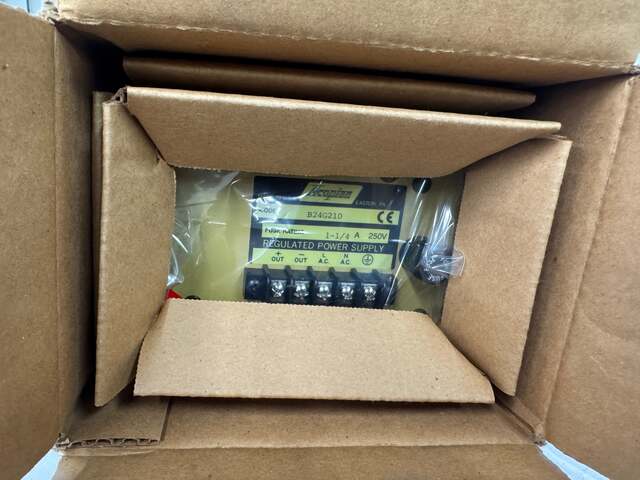

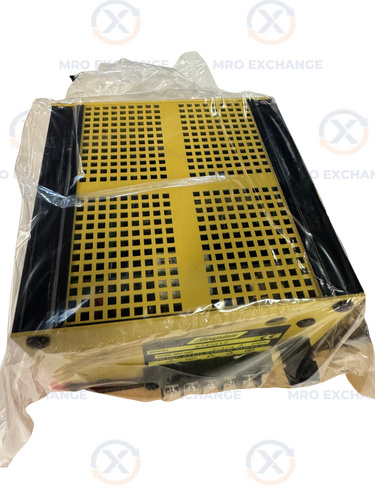

The Acopian B24G210 is a linear regulated AC to DC power supply from the Gold Box series, manufactured in Easton, Pennsylvania. The nameplate identifies a 24 VDC nominal output with a 1-1/4 A, 250 V fuse rating. Input is 105 to 125 VAC, 50 to 400 Hz per published Acopian specifications for the B24G210 base model, with a rated DC output current of 2.1 A at 40 C. The unit features a five position barrier terminal strip labeled +OUT, OUT, L A.C., N A.C., and earth ground, along with an external accessible fuse holder mounted on the front face. Construction consists of a perforated yellow steel enclosure with black side rails and corner standoffs, characteristic of the Acopian Gold Box linear supply family. CE marking is present on the nameplate. Applications include 24 VDC supply for industrial controls, sensors, relays, instrumentation, laboratory equipment, and OEM machine builder requirements where a linear regulated bench or chassis mount supply is specified. The B24G210 is a single output, non isolated linear topology suitable as a drop in replacement for legacy Acopian Gold Box installations. This unit is identified by part number B24G210 as shown on the manufacturer nameplate. Use with optional Acopian mounting kits GB8 (wall mounting) or GH35DIN (DIN rail mounting) when field installation requires either configuration.

Stock # 0526-02260
