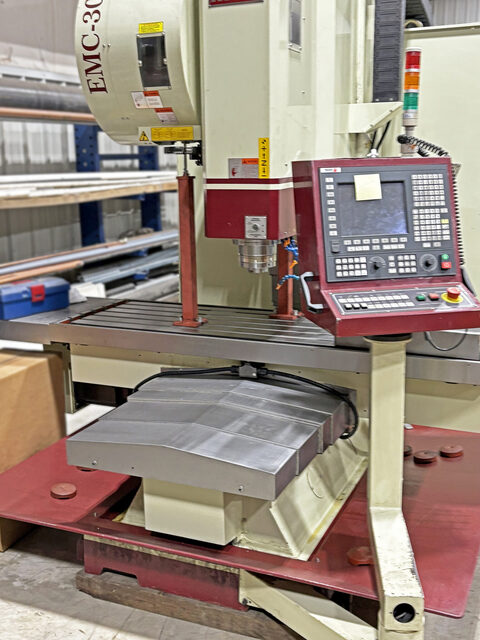

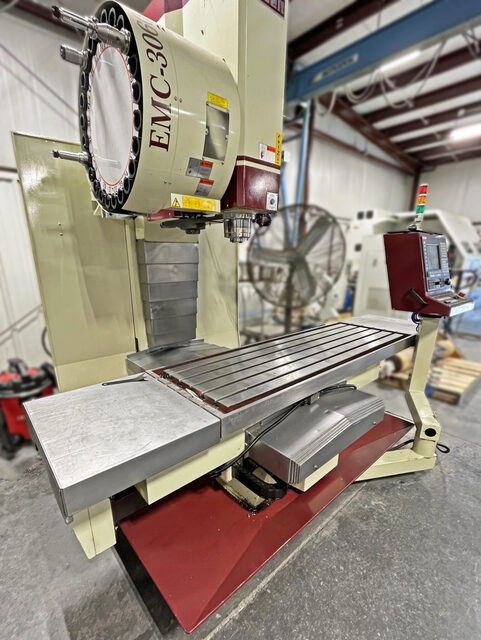

Acer #EMC-3060, vertical machining center, 60" X, 30" Y, 28" Z, 60-8000 RPM, 24 automatic tool changer, 10 HP, 24" x 73" table, Fagor 8060i/FL-MC cnc

Description

Acer 30″ x 60″ Vertical Machining Center, EMC 3060

Inventory # 9982-B

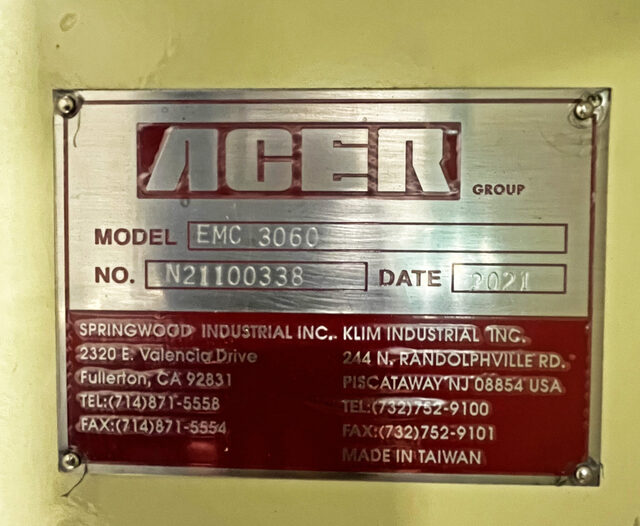

Model: EMC 3060

S/N: N21100338 “2021”

Specifications:

Travels:

X-Axis: 60″

Y-Axis: 30″

Z-Axis: 28″

Table Size: 24″ x 73″

Max. Load on Table: 3,300 lbs.

Spindle Speed: 60 – 8,000 RPM

Spindle Taper: 40 CAT

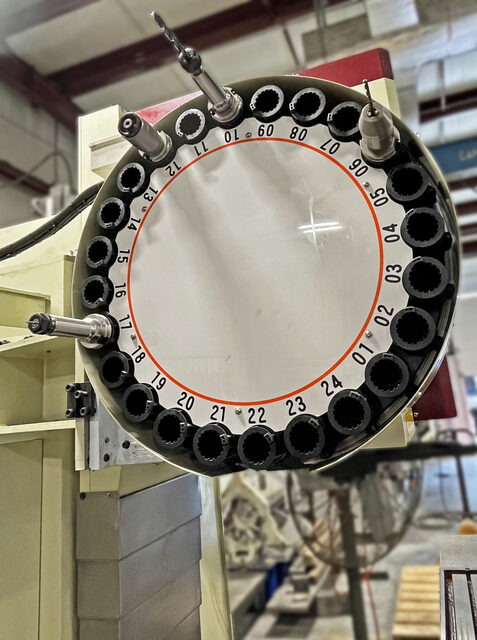

Automatic Tool Changer: 24 Tools

Motor: 10 HP

Standard Features and Accessories:

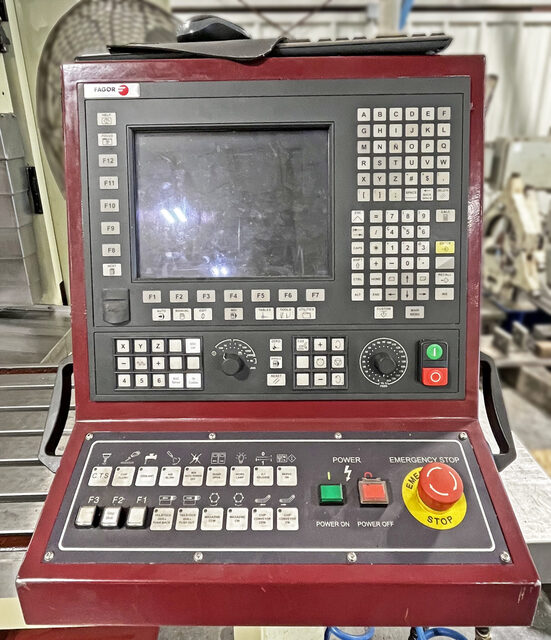

Fagor 8060i/FL-MC 3-Axis CNC Control with 24 Pocket Arm-Type Auto Tool Changer:

– Number Canned Cycles in Conversational and G-Code

– Fill-In the Blanks & Press Cycle to Start

– No Memory Limit on Programs

– 11″ Color TFT LCD Monitor

– Built-In Mini CAD/CAM

– USB Port

– Flash Memory: 1 MB

Tool Clamp/Unclamp Button

Halogen Light

Four Coolant Nozzles Output to Splash the Workpiece Cleanly

Retractable Z-Axis Roller Cover to Block Coolant and Chips from Entering the Slideways

Hard Stop Limit Switch Provides as the Secondary Traveling Limit

Telescopic Steel Way Cover

Y, Z Axes have Square Ways

FC 30 Castings Weighing at an Impressive 8,360 lbs.

2.5 HP German-Made Servo Motor is Joined with C5 Ball Screw through Non-Slip HTD Timing Belt and Pulley

Table Splash Guard with Retractable Doors

Column Side Guard

Every Acer EMC Spindle is Loaded with Five P4 Precision Angular Contact Ball Bearings (NSK or FAG)

20 HP Spindle Motor Made in Germany

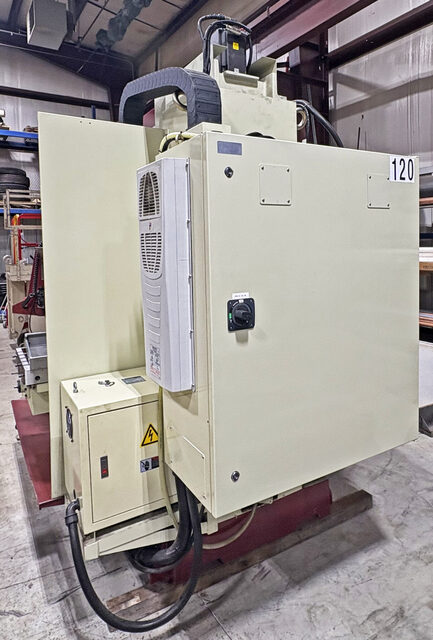

Acer Electric Cabinet is Carefully Laid Out and Ready for More Expansion

90 Degree Swing Overhead Control Arm

Mechanical Specifications:

Dimensions: 113″ x 174″ x 107″ H

Weight: approx. 10,600 lbs.

Located in Winchester, VA Warehouse – Buyer Responsible for Loading

New Replacement Cost: $86,500.00+

Please Note: This Machine is Being Brokered and is Being Sold As-Is, As-Inspected, with No Warranty and No Return Privilege
