For Sale by Machinery Central
Surplus Record Dealer Since 2020
Location: Louisville, KY
Contact Denis Frankenberger
Phone Number: 502...> Show Phone Number 502-219-7311
Let the seller know you found their listing on Surplus Record!
$8,950 USD
Description
Spec Sheet:

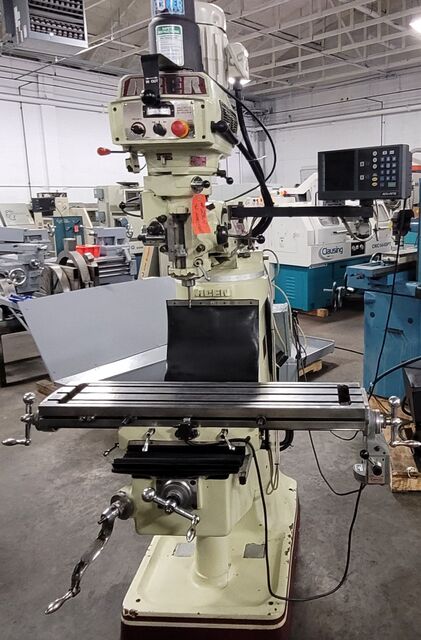

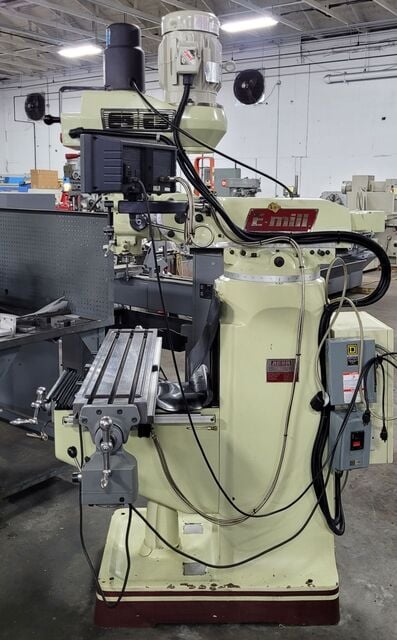

The 2001 Acer E-Mill 3VS is a 3 HP, 9" x 42" vertical milling machine featuring a 604,500 RPM variable-speed spindle, R-8 taper, and 5" quill travel.
It includes Meehanite casting, hardened/ground ways, and a 2-axis digital readout (DRO), designed for precision machining in 220V (3 phase).

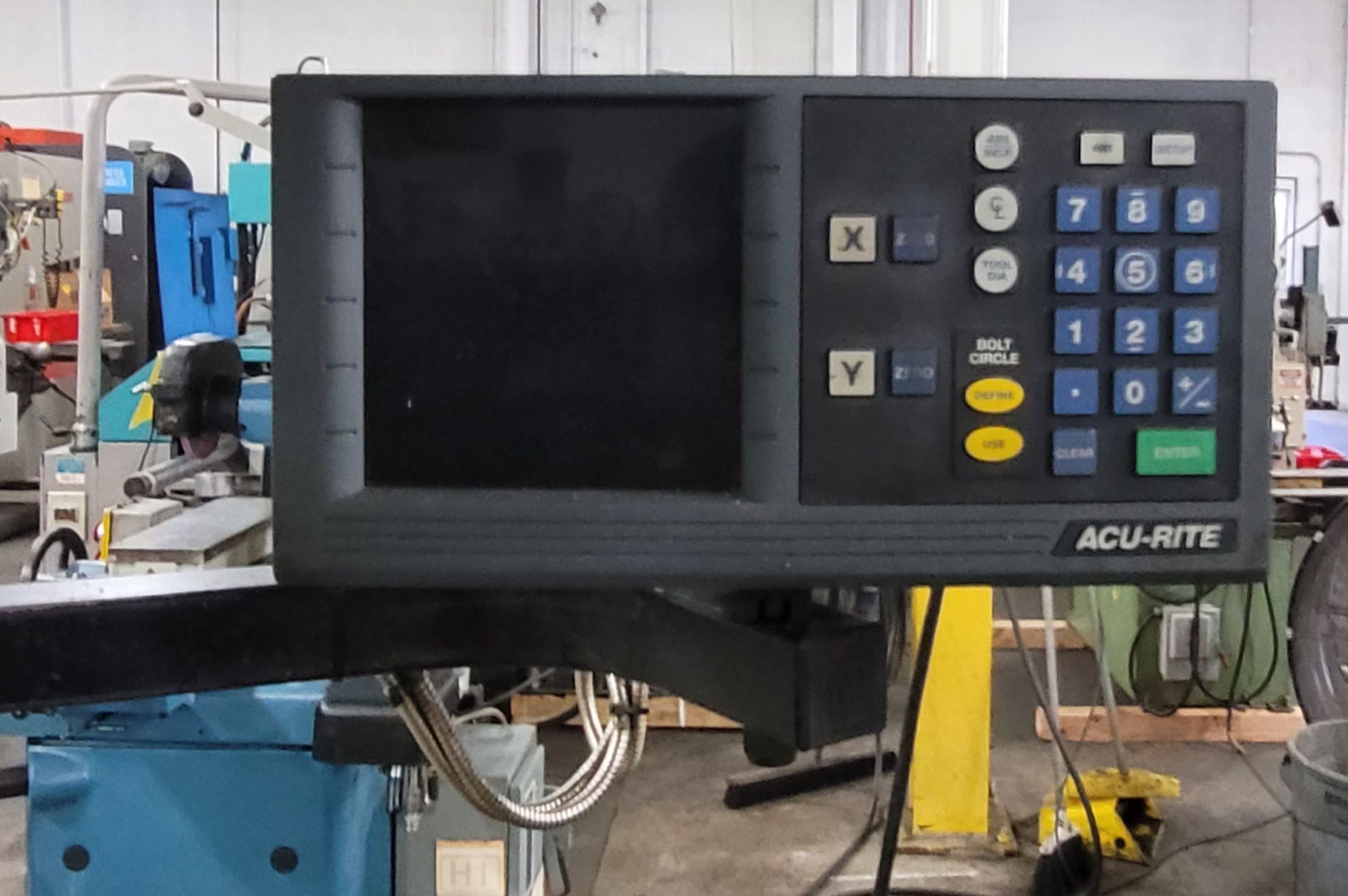

AcuRite 2 Axis DRO
Servo X Axis Power Feed
Kurt Power Draw Bar
Key Specifications for 2001 Model 3VS:

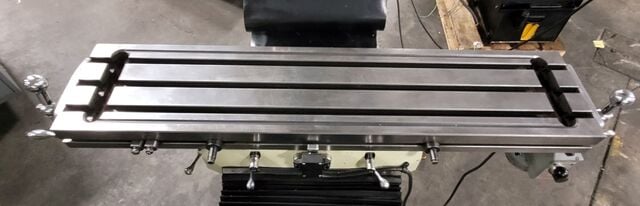

Table Size: Standard 9" x 42"
Motor: 3 HP Baldor motor with inverter drive
Spindle Speed: 0 4,500 RPM (variable speed)
Spindle Taper: R-8
Quill Travel/Diameter: 5" travel / 3-3/8" diameter
Travels (X/Y/Z): Approx. 28"34" Longitudinal, 12" Cross, 16" Knee
Weight: Approx. 2,500lbs
Standard Features:
Control: Variable frequency drive (VFD) for speed control
Ways: Hardened and ground dovetail ways (HRC 52)
Lubrication: One-shot lubrication system
Construction: Meehanite casting for rigidity
The 2001 Acer E-Mill 3VS is a 3 HP, 9" x 42" vertical milling machine featuring a 604,500 RPM variable-speed spindle, R-8 taper, and 5" quill travel.
It includes Meehanite casting, hardened/ground ways, and a 2-axis digital readout (DRO), designed for precision machining in 220V (3 phase).
AcuRite 2 Axis DRO
Servo X Axis Power Feed
Kurt Power Draw Bar
Key Specifications for 2001 Model 3VS:
Table Size: Standard 9" x 42"
Motor: 3 HP Baldor motor with inverter drive
Spindle Speed: 0 4,500 RPM (variable speed)
Spindle Taper: R-8
Quill Travel/Diameter: 5" travel / 3-3/8" diameter
Travels (X/Y/Z): Approx. 28"34" Longitudinal, 12" Cross, 16" Knee
Weight: Approx. 2,500lbs
Standard Features:
Control: Variable frequency drive (VFD) for speed control
Ways: Hardened and ground dovetail ways (HRC 52)
Lubrication: One-shot lubrication system
Construction: Meehanite casting for rigidity
Inquire Further with Machinery Central!
