Ace Controls MA3350 High Energy Adjustable Shock Absorber, 1.91" Stroke, NEW

$486 USD

Request Formal Quote

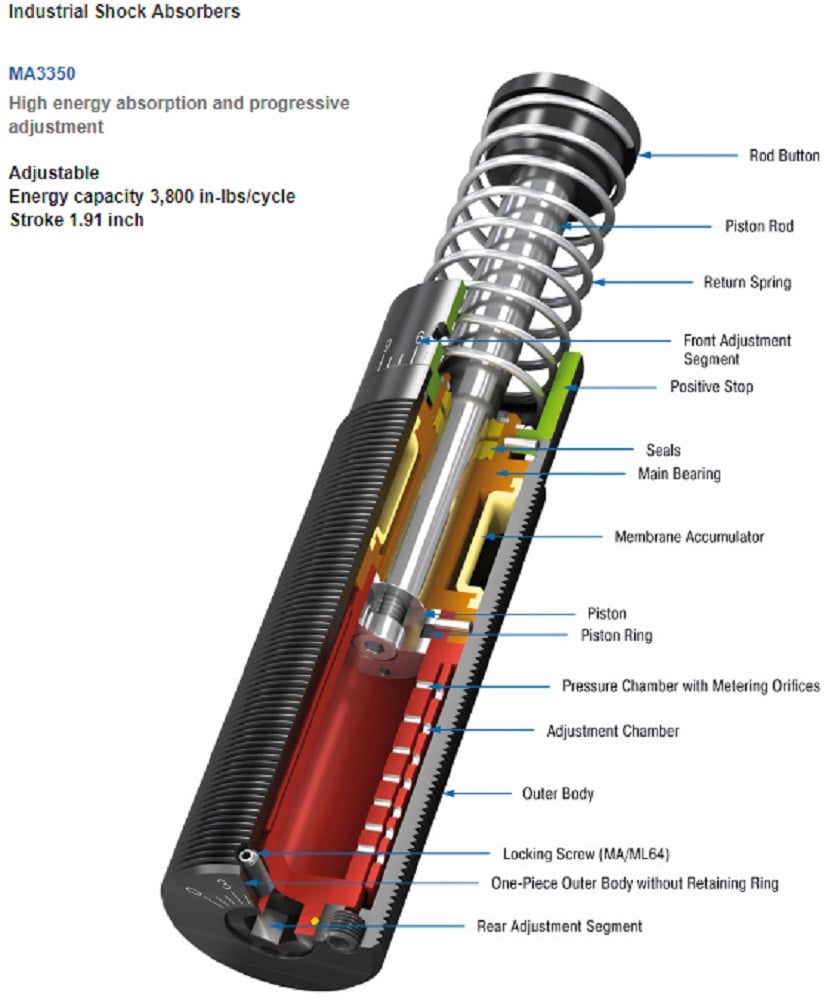

Energy capacity 3,800 in-lbs/cycle. Energy capacity 760,000 in-lbs/h. Energy capacity with oil recirculation 1,600,000 in-lbs/h. Energy capacity with air/oil tank 1,200,000 in-lbs/h. Effective weight min. 28 lbs. MA3350 High energy absorption and progressive adjustment - Adjustable - Energy capacity 3,800 in-lbs/cycle - Stroke 1.91 inch - Adjustable and unique: These industrial shock absorbers from ACE, which can be precisely adjusted both at the front and rear, also contribute towards the success of the MAGNUM range. Equipped with excellent sealing technology, an annealed guide bearing and integrated positive stop, they are robust and durable. These dampers absorb 50 % more energy than their predecessors but are built even more compactly. The larger range of effective loads also opens up options in design and assembly. This makes the ML range especially suitable for effective weights of 661 lbs. to 1,102,311 lbs. (300 kg to 500,000 kg). These shocks are the best option wherever application data changes and flexibility is required.. Ace Controls. Ace Controls Inc. MA3350.
