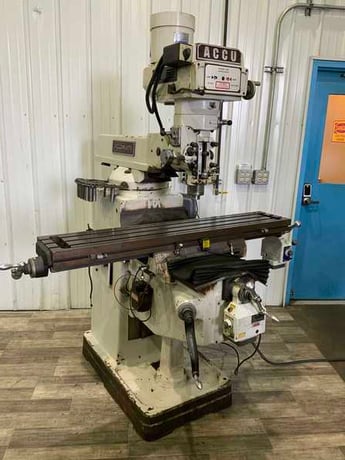

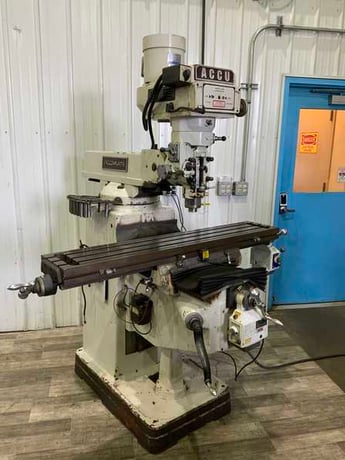

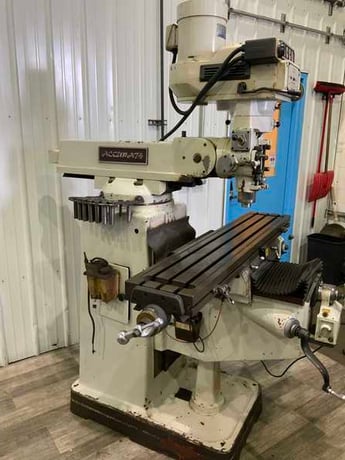

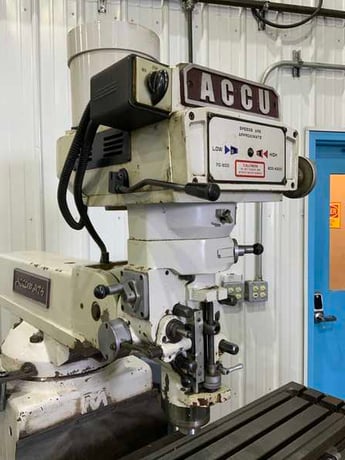

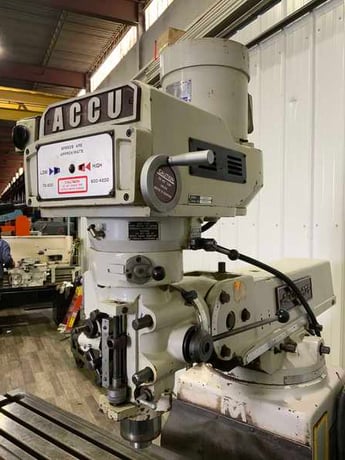

Accu #AC3KV, Ram Type Vertical Mill, 54" x 10" table, 38" X, 18" Y, 18" Z, 5" quill travel, 17-3/4" ram travel, 6.7" to 23.8" throat depth, 3 HP, 4200 RPM

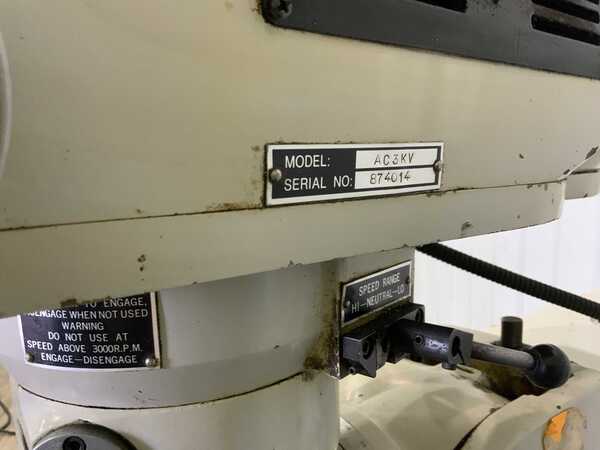

SERIAL ....................................... 874014

MODEL ........................................ AC3KV

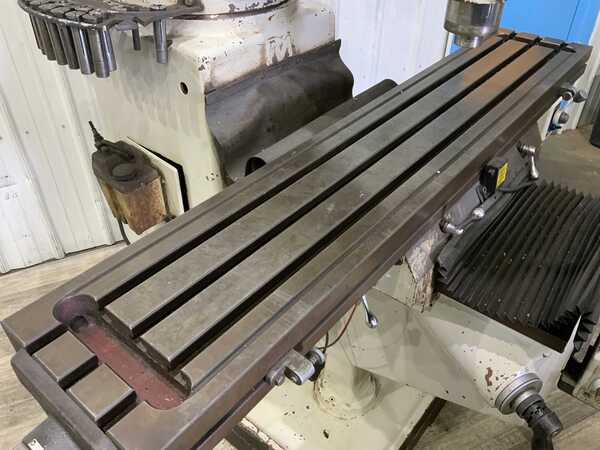

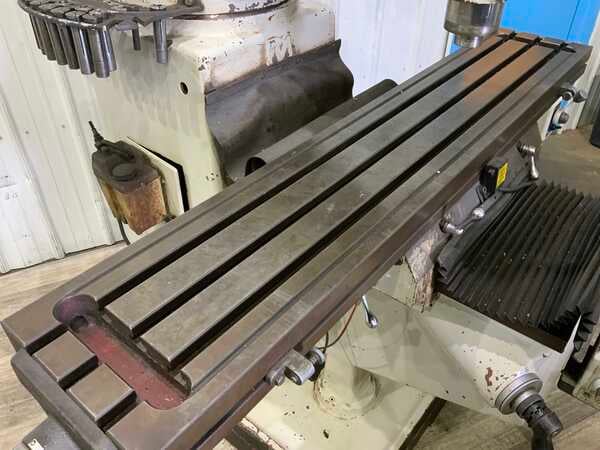

AREA OF TABLE ................................ 54" X 10"

SPINDLE SPEEDS (VARIABLE) .................... 70 TO 4200 RPM

LONGITUDINAL TRAVEL .......................... 38"

VERTICAL KNEE TRAVEL ......................... 18"

CROSS TRAVEL ................................. 18"

QUILL TRAVEL ................................. 5"

QUILL FEEDS .................................. 002,004 & .006 IPR

RAM TRAVEL ................................... 17-3/4"

DEPTH OF THROAT .............................. 6.7" TO 23.8"

TAPER IN SPINDLE ............................. R8

HEAD SWIVEL LEFT & RIGHT ..................... 90 DEGREE

HEAD TILTS FORWARD & BACKWARDS ............... 45 DEGREES

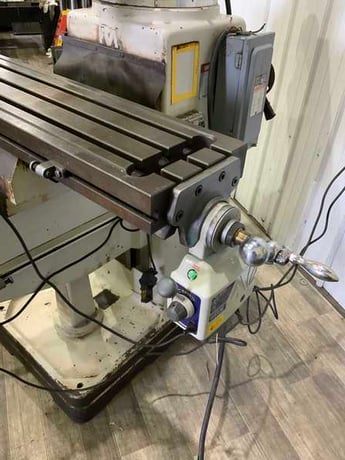

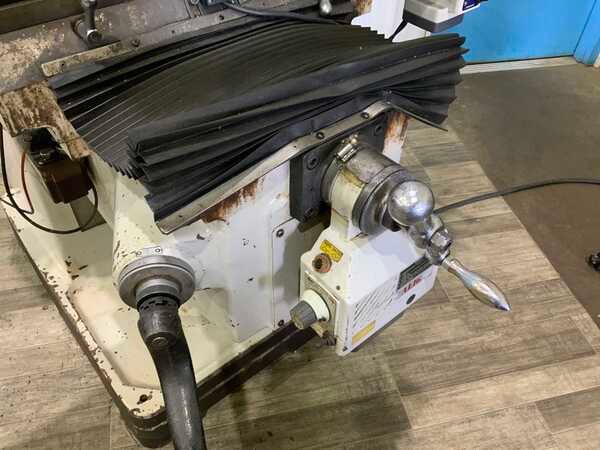

SERVO LONGITUDINAL POWER FEED ................ YES

SERVO CROSS POWER FEED ....................... YES

1 SHOT LUBE .................................. YES

SPINDLE MOTOR ................................ 3 HORSEPOWER
