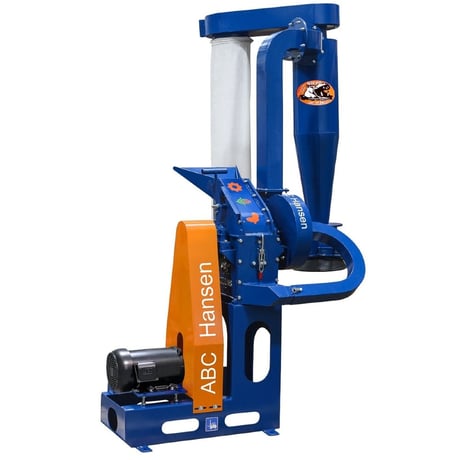

Abc Hansen Hippo baby Cutler-Hammer mill, new, with or without 5 HP motor and starter

Hippo hammer mill grinder machines rapidly pulverize a wide range of materials from grain, beans, herbs and fibrous roots to minerals, plastics, glass, bone and recyclables. Materials enter the milling chamber and are impacted by hammers rotating at high speed. Size reduction occurs until particles can exit through the holes of a perforated screen covering the discharge. Interchangeable screens offer hole sizes ranging from 0.6mm to 25mm.

Milling chambers are constructed of high strength cast iron plates with bolted construction that eliminates common stress points to prevent cracking. After extended use, this method of construction allows fast, easy, on-site replacement of worn parts. Built for the demands of commercial and industrial grinding, Hippo mills are fast, efficient and durable, and their low cost won't break your material processing budget.

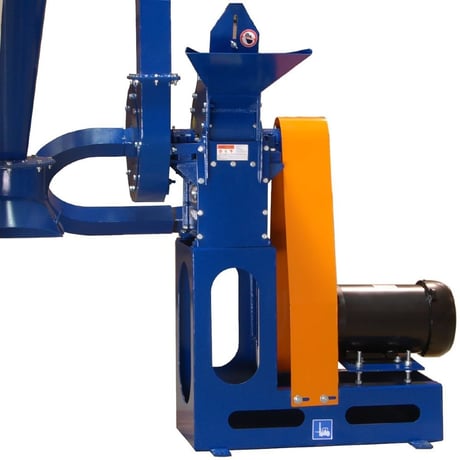

The Hippo baby hammer mill is IN STOCK and available with or without a 5HP electric motor and starter or VFD. The motor is either a 220VAC, 60hz, 1-phase heavy duty rated motor or a 208/230/460VAC, 60hz, 3-phase inverter duty rated motor. The enclosed starter is available for 220VAC 1Phase or 208, 230 or 460VAC 3Phase. The VFD is available for a 220VAC 1Phase power input or 208, 230 or 460VAC 3Phase power input. The starter or VFD is pre-wired to the motor but not to the power supply. The VFD can be programmed to reduce the rotor shaft rpm. Slowing the speed of the rotor shaft can increase the likelihood of getting a coarser grind in hemp and other products, while still utilizing the material handling fan to move product from the mill to the material collecting cyclone.

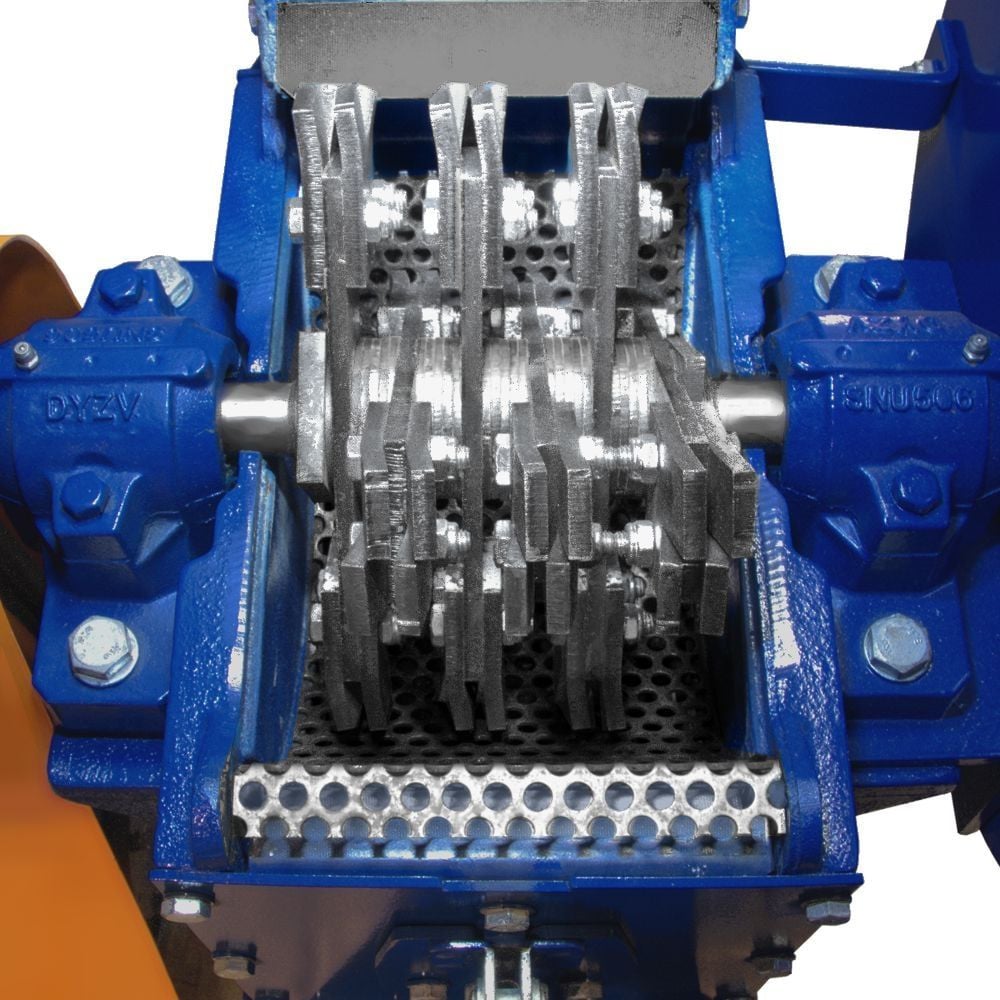

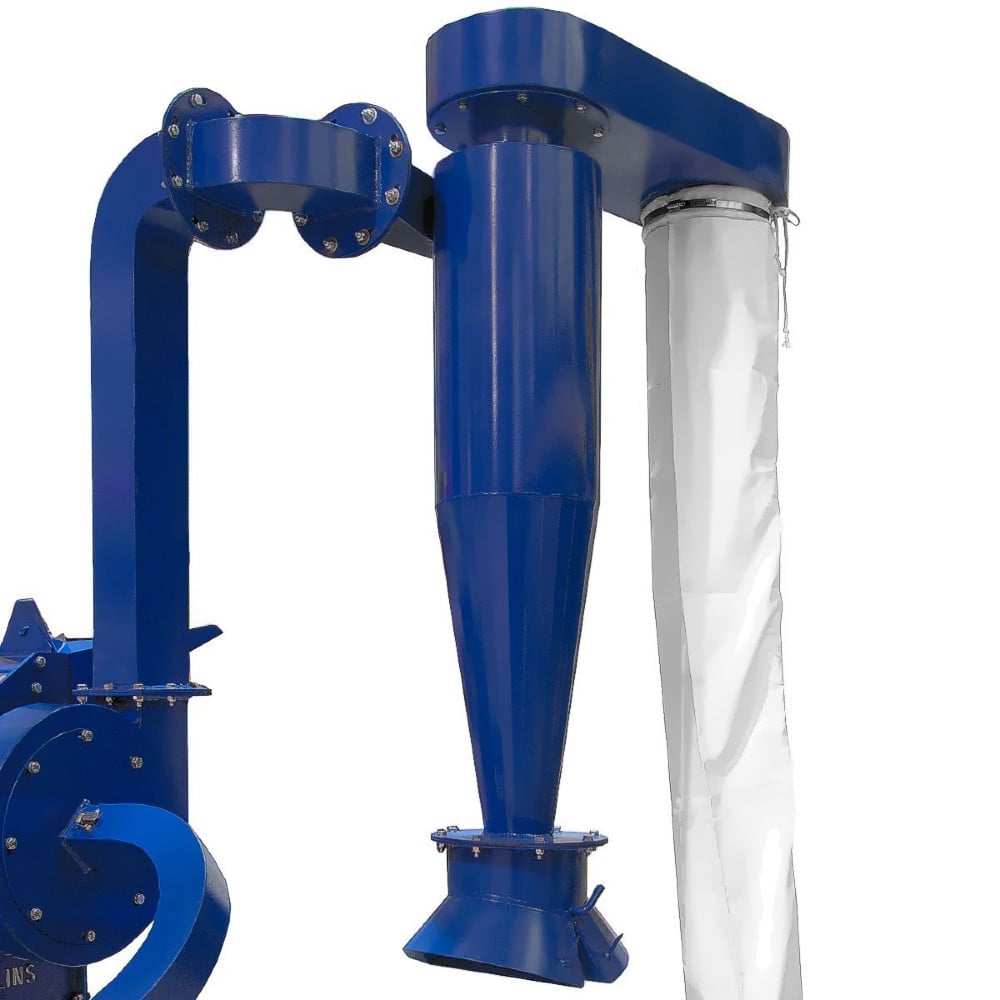

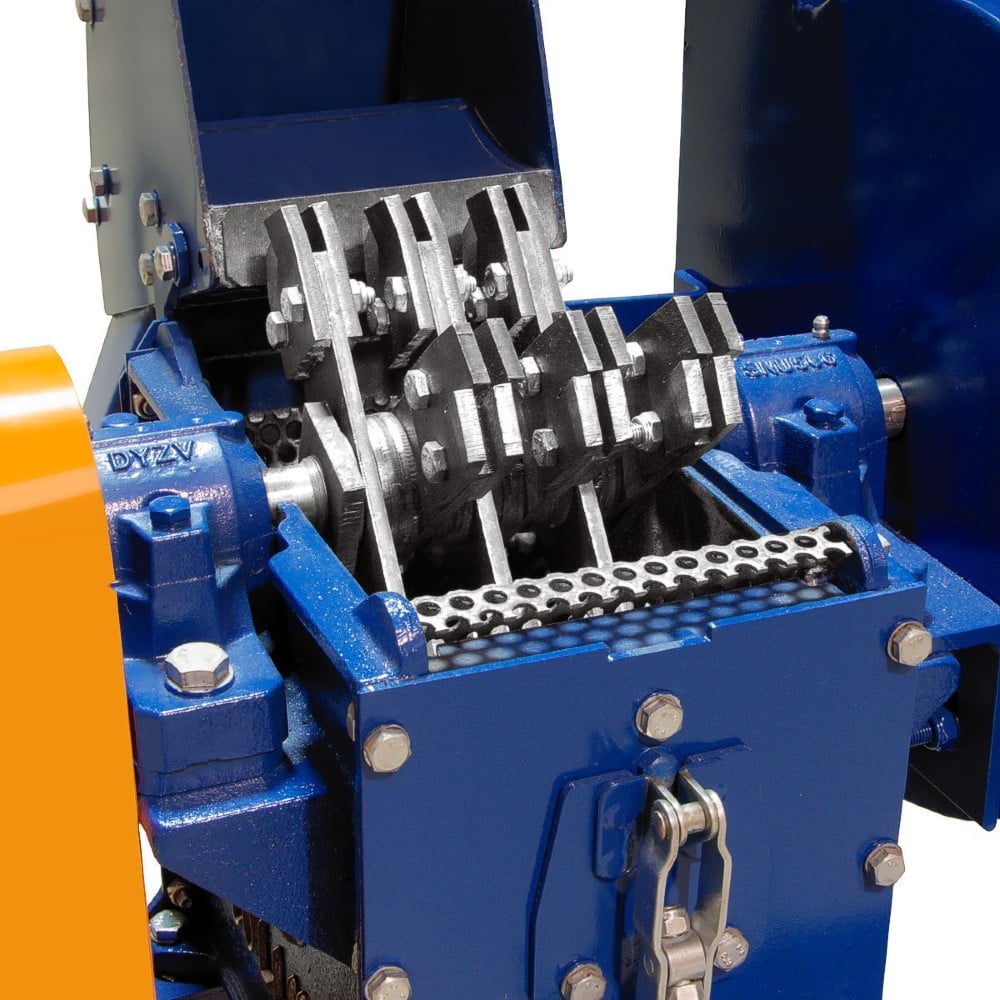

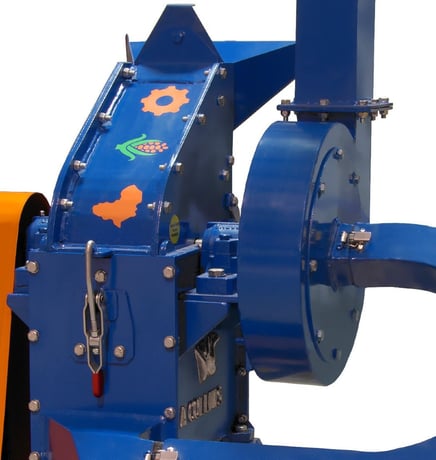

Hippo hammer mill grinders feature rigid hammers with reversible, replaceable tips of long wearing, impact and abrasion-resistant Bennox steel. The screen is located in the bottom half of the grinding chamber, covering an arc of about 180°. Milled material is transported from the discharge of the mill by an impeller fan mounted on the drive shaft, and delivered to the cyclone and dust separator. Suction created by the material handling fan aids transport of the product through screen holes. Stock interchangeable screens are available with hole sizes of 0.6, 0.8, 1.0, 1.2, 1.6, 2, 3, 5, 6, 10, 15, 20 and 25mm. The top half of the milling chamber swings open for full access to the hammers and screen, and screens can be changed out in just 30 seconds without tools.
