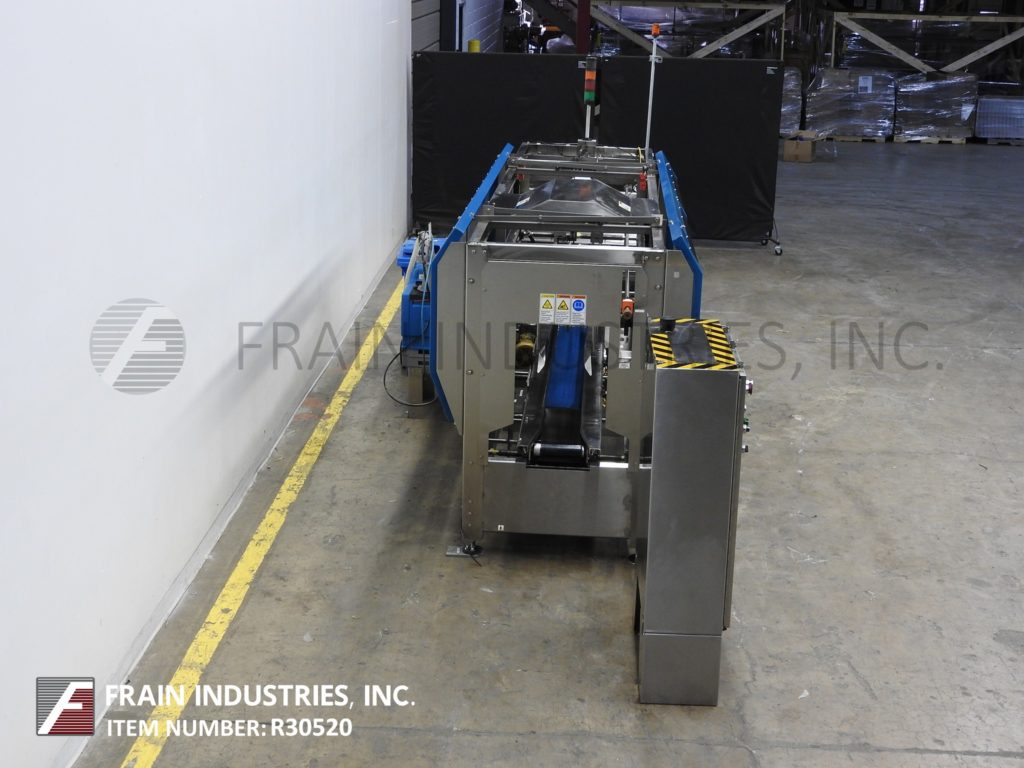

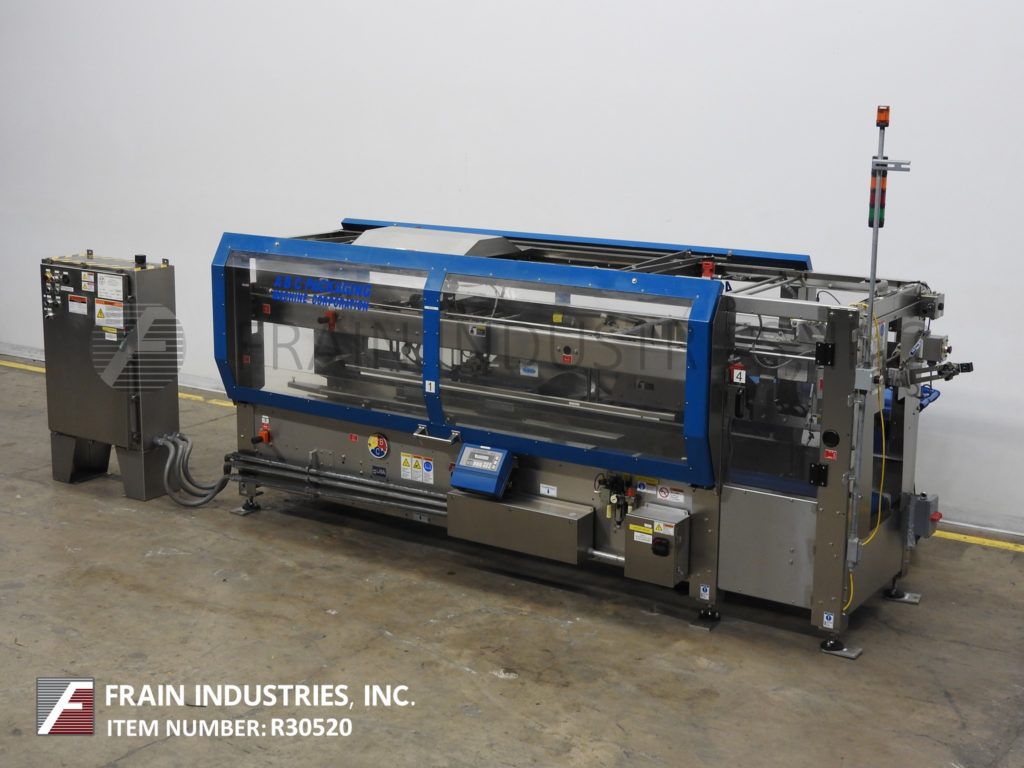

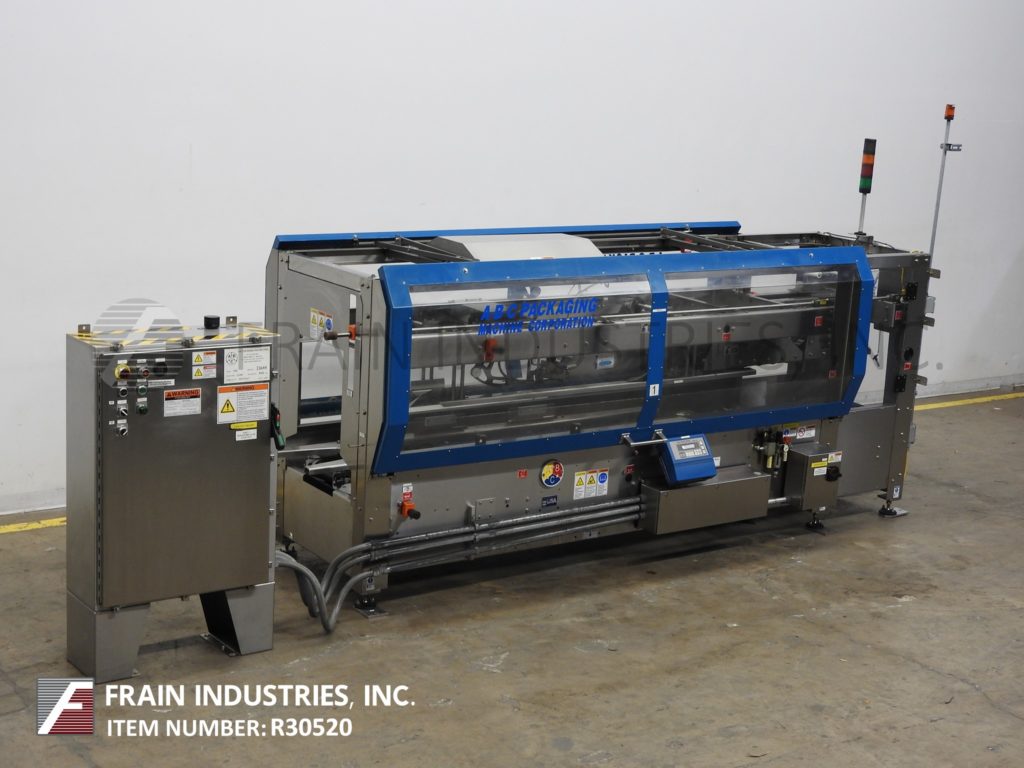

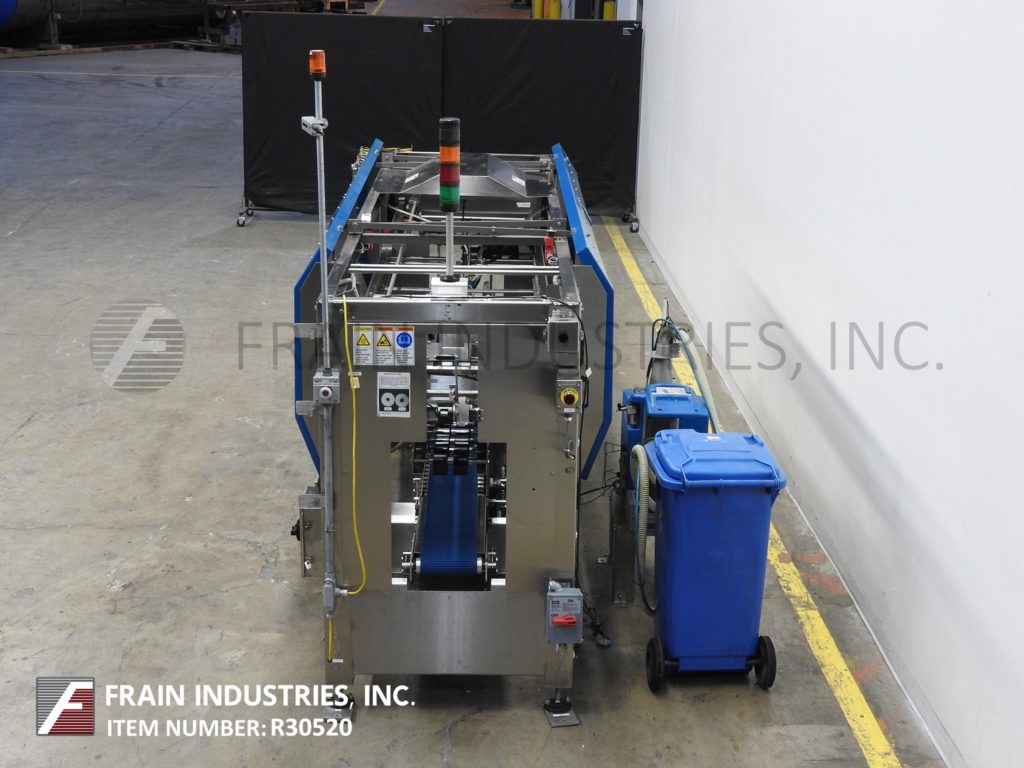

ABC #436, automatic, continuous motion, top case closer & sealer, can be used with hot melt glue or pressure sensitive tape

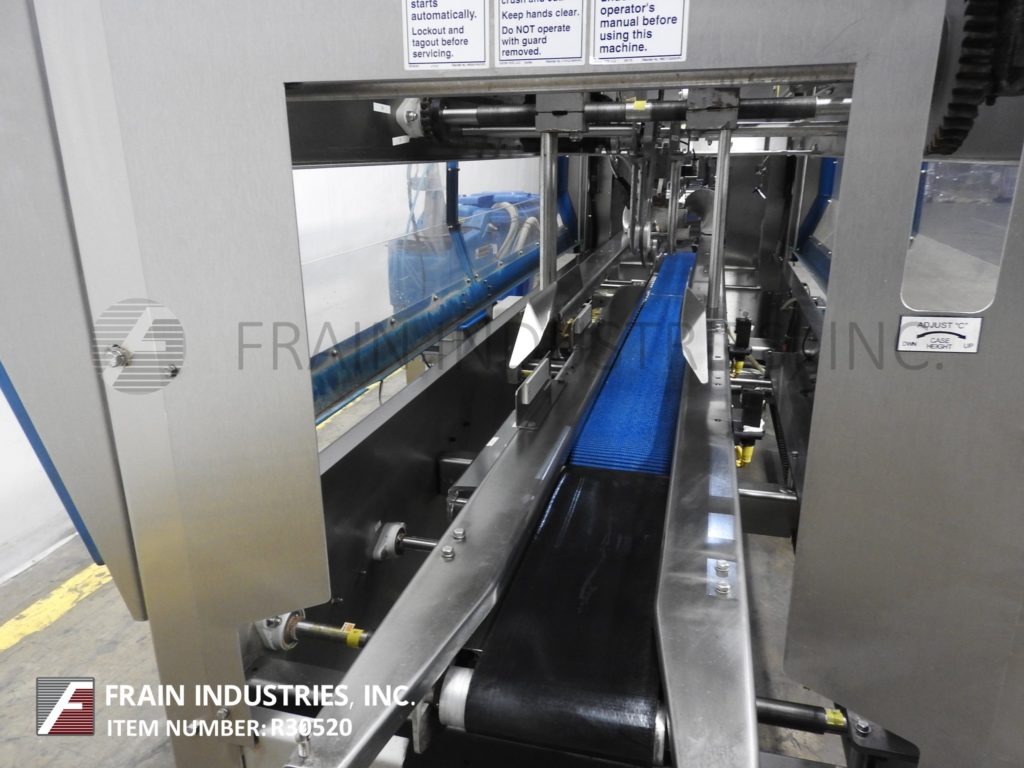

ABC Model 436, automatic, continuous motion, top case closer and sealer can be used with hot melt glue and is rated from 10 to 75 cases per minute – depending on materials and application. Capable of handling both RSC, CSSC cases. Case size range: 8" to 24" in Length; 6" to 17" in Width; 4" to 17" in Height (glue), 16" in Height (tape). Equipped with 112" long x 8" wide belt case transfer conveyor with rotary top flap closers and currently set up with Nordson ProBlue hot melt glue systemand has 52" long top, dual side x side 2" wide roller no crush compression section. Remote control panel has A/B servo drive controls with A/B powerflex vari-speed controller, glue / tape and on / bypass / off switches with start / restart and e-stop push buttons. Mounted on stainless steel base frame, with flip up interlock safety door guarding and statis light bar.

OAD: 168" L x 80" W x 72" H
