ABB EHDB130C-1L Spectrum Solid State Drive Contactor

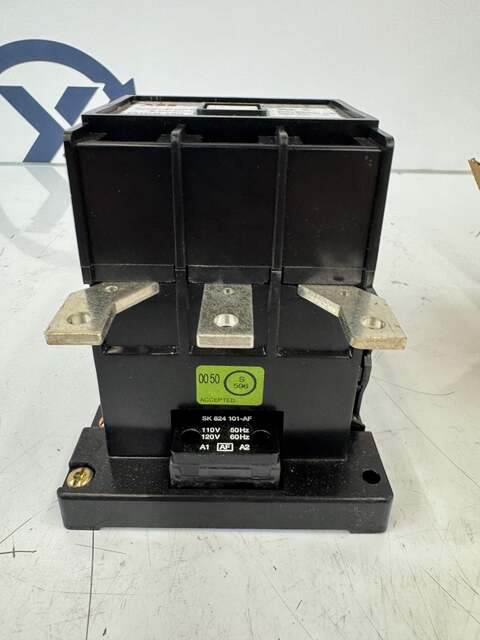

ABB EHDB130C-1L Spectrum solid state drive contactor rated 600 VDC and 130A continuous. This unit is marked SK 824 085-AF and manufactured by ABB Control, Made in Sweden. The nameplate specifies "Solid State Drive Ratings Only" with a maximum rating of 600 VDC and 130A continuous current. Coil control voltage is 110V 50Hz or 120V 60Hz via terminals A1 and A2 as labeled. The assembly features heavy-duty power terminals with numbered connection points and bus bar style lugs for high current DC applications.

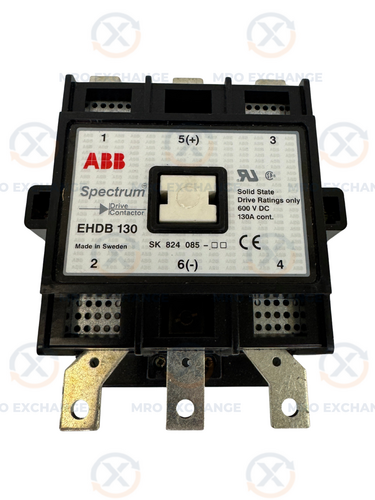

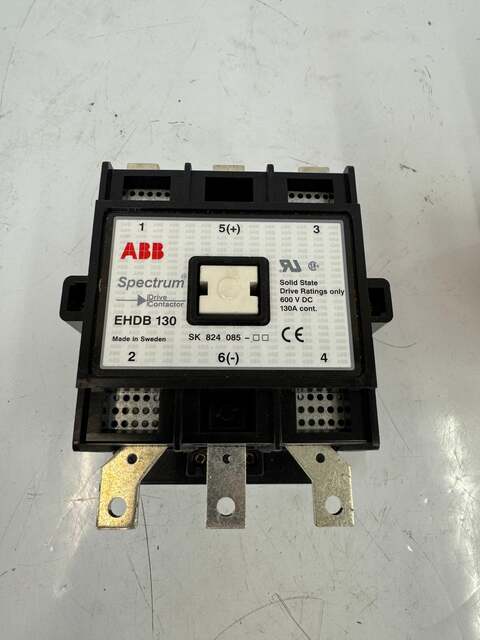

The EHDB 130 series is designed for use in DC drive systems where controlled connection and disconnection of high voltage DC circuits is required. Front labeling includes terminal designations 1, 2, 3, 4, 5(+), and 6(-), along with CE marking and RU recognition. Catalog number EHDB130C-1L and reference SK 824 085-AF are clearly printed on the unit and packaging.

Suitable for industrial automation panels, DC motor drive systems, and OEM equipment utilizing 600 VDC drive circuits within the stated ratings. All specifications are derived directly from the manufacturer nameplate and labeling on the device.

Stock # 0226-318
