Year: 1997
width: 96
dia.: 0.750
Stock # VX-35798
1 / 10
Click to zoom in
1 / 10
For Sale by VX Machinery
Surplus Record Dealer Since 1995
Location: Sylvania, OH
Contact Victor Van Deilen
Phone Number: 734...> Show Phone Number 734-854-8700
Let the seller know you found their listing on Surplus Record!
Description
Material Capacity:
Mild Steel
- Maximum Thickness: 0.625"
- Maximum Width: 96"
- Maximum Yield Strength: 60,000 PSI
High Strength Steel
- Maximum Thickness: 0.500"
- Maximum Width: 96"
- Maximum Yield Strength: 100,000 PSI

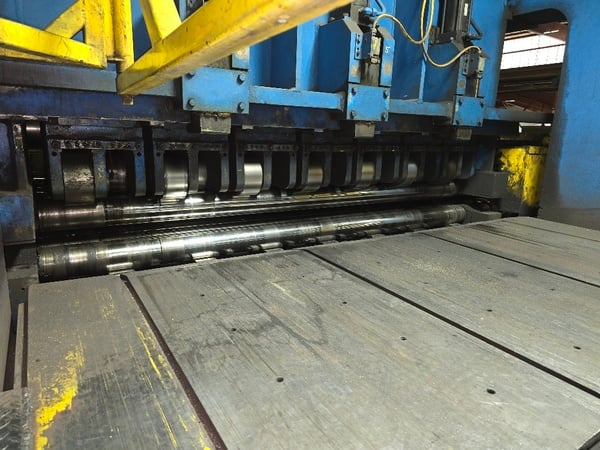

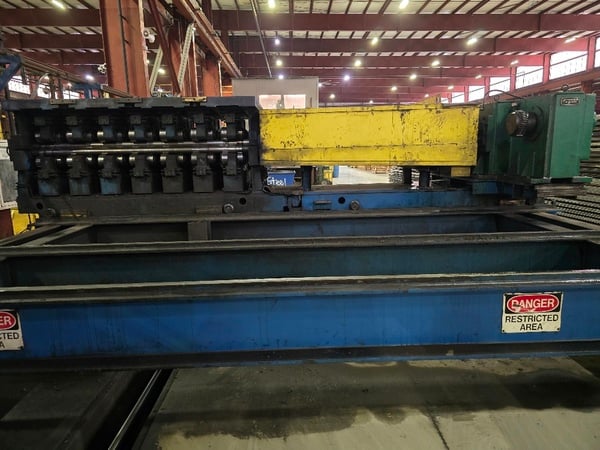

Dual-Cassette Floor-Mounted Injection System:

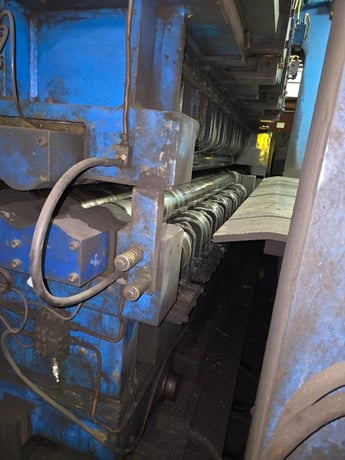

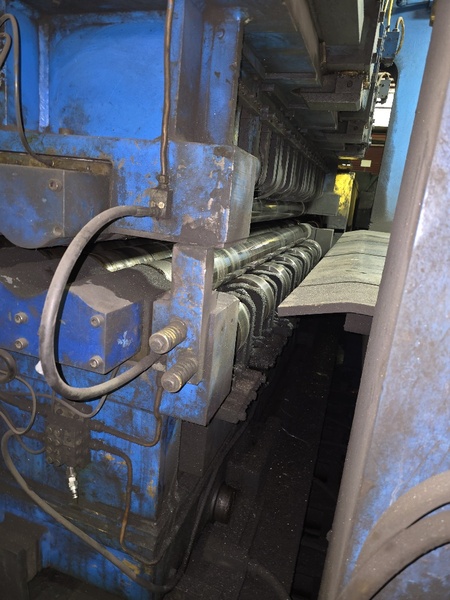

Heavy-Gauge Cassette
- 11-Roll Configuration (5 Over 6)
- Work Roll Diameter: 5.500" (140 mm)
- Work Roll Face: 104" (2641 mm)
- 3 Top Backup Flights
- 7 Bottom Backup Flights
- Pinch Roll Diameter: 9.850" (250 mm)
- Pinch Roll Face: 102" (2600 mm)
Light-Gauge Cassette
- 17-Roll Configuration (8 Over 9)
- Work Roll Diameter: 3.500" (89 mm)
- Work Roll Face: 104" (2641 mm)
- 3 Top Backup Flights
- 7 Bottom Backup Flights
Main Drive:
Motor: 500 HP DC
Speed: 500/1,300 RPM
29" 96" 0.100" 0.625" 250 FPM Left to Right 9.850" (250 mm) 102" (2600 mm)
Mild Steel
- Maximum Thickness: 0.625"
- Maximum Width: 96"
- Maximum Yield Strength: 60,000 PSI
High Strength Steel
- Maximum Thickness: 0.500"
- Maximum Width: 96"
- Maximum Yield Strength: 100,000 PSI
Dual-Cassette Floor-Mounted Injection System:
Heavy-Gauge Cassette
- 11-Roll Configuration (5 Over 6)
- Work Roll Diameter: 5.500" (140 mm)
- Work Roll Face: 104" (2641 mm)
- 3 Top Backup Flights
- 7 Bottom Backup Flights
- Pinch Roll Diameter: 9.850" (250 mm)
- Pinch Roll Face: 102" (2600 mm)
Light-Gauge Cassette
- 17-Roll Configuration (8 Over 9)
- Work Roll Diameter: 3.500" (89 mm)
- Work Roll Face: 104" (2641 mm)
- 3 Top Backup Flights
- 7 Bottom Backup Flights
Main Drive:
Motor: 500 HP DC
Speed: 500/1,300 RPM
Get Your Price from VX Machinery!
