For Sale by Absolute Machinery Corp
Surplus Record Dealer Since 2001
Location: Worcester, MA
Contact Stephen Murdoch
Phone Number: 508...> Show Phone Number 508-792-4305
Let the seller know you found their listing on Surplus Record!
Description
Specifications

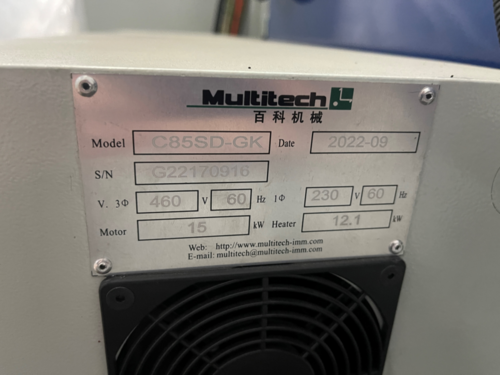

Model: C85SD-GK
Us Tonnage: 94
Shot Size Oz: 6.8
Screw Diameter: 50mm
Mold Opening Force: 12 Tons
Clamping Stroke: 10.63"
Min Mold Thickness: 7.28"
Max Mold Open: 17.91"
Max Mold Size: 22.05" x 14.17"
Max Mold Weight: 2072 lbs.
Platen Slide Size: 45.67" x 14.96"
Configuration: Dual Shuttle Table
Ejector Stroke: 3.54"
Ejector Force: 2.98 Tons
Motor Kw: 15
Heater Kw: 12.1
Voltage: 460/230V 60Hz
Note: Optional Screw & Barrel Assembly Incl. Heater Bands, Cables, Plugs etc. 38mm, 5.9 oz.- Available for an Additional Cost
