For Sale by Icon Industries, Inc
Surplus Record Dealer Since 1990
Location: Grand Rapids, MI
Contact Tom,Pete,Bob
Phone Number: 616...> Show Phone Number 616-229-2957
Let the seller know you found their listing on Surplus Record!
Description

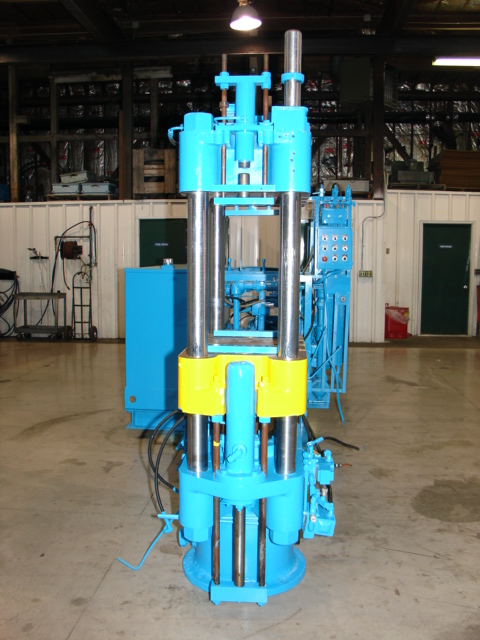

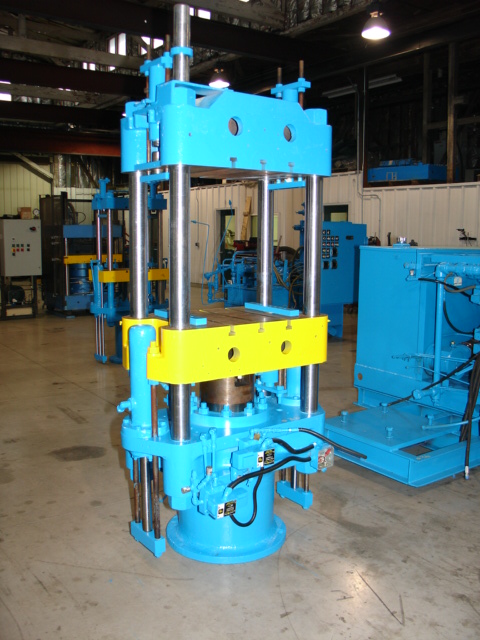

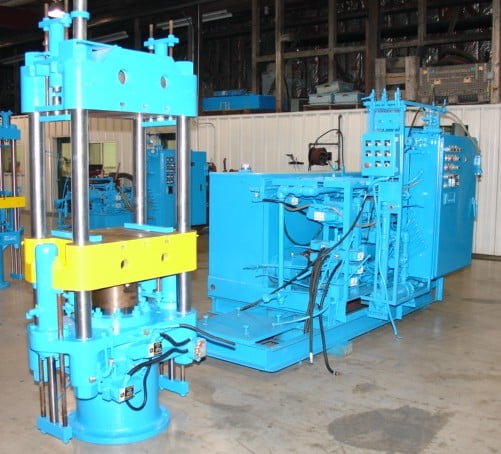

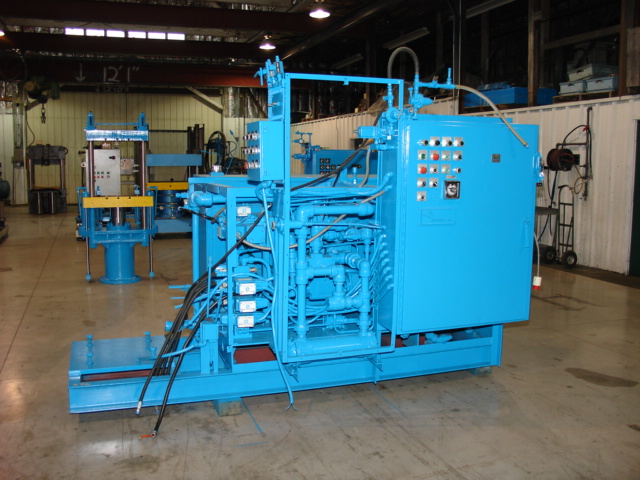

SERIAL #C-3135. FRONT TO BACK BETWEEN THE POSTS IS 10.5". NOMINAL BED AREA IS 24.5" X 20". MAIN RAM IS APPROX 10" DIAMETER WITH 12" STROKE. 25" DAYLIGHT: FULLY GUIDED WITH 8.5" BUSHINGS ON 3.25" DIAMETER POSTS. 42.5" OPERATOR HEIGHT. TWO 3" BORE SINGLE-ACTING PUSH-BACK CYLINDERS. T-SLOTTED BED AND CROWN. HYDRAULIC KNOCK-OUTS TOP AND BOTTOM WITH APPROX 2" STROKE. L-SHAPED HYDRAULIC POWER UNIT WITH A 250 GALLON RESERVOIR (72" X 24" X 36"); 50 HP MOTOR (1800 RPM; 208-230/460 VOLTS; 326 T FRAME); VICKERS 4525V60A17 PUMP; VALVES; ETC..APPROX SPEED: 250 IPM FAST CLOSE; 50 IPM PRESSING; 330 IPM FAST OPEN. CONTROL PANEL (RELAY) MOUNTED ON HYDRAULIC UNIT INCLUDING: START/STOP; TIMER; DE-GAS; MANUAL/AUTO; E-STOP; ETC.. OVERALL DIMENSIONS WITH PRESS MOUNTED ON "SHELF" OF POWER UNIT: 112" X 74" X 100" TALL. APPROX 12,000 LBS. (ITEM #36)
Get Your Price from Icon Industries, Inc!
