Manufacturer: Disa
Model: NFP-3H-OP
Year: 2000
Cubic Feet Per Minute: 9000
Square Feet: 894
Baghouse: Yes
Stock # DC-012348
Price: $7,500 USD
1 / 4
Click to zoom in
1 / 4
For Sale by Ex-Factory
Surplus Record Dealer Since 2022
Location: Charlotte, NC
Contact Sales Dept.
Phone Number: 704...> Show Phone Number 704-285-2223
Let the seller know you found their listing on Surplus Record!
$7,500 USD
Description

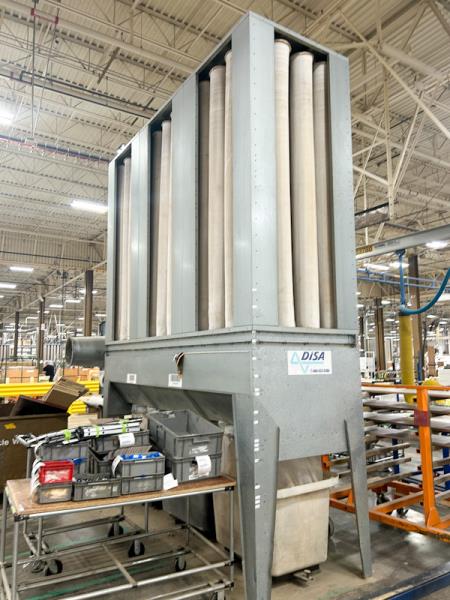

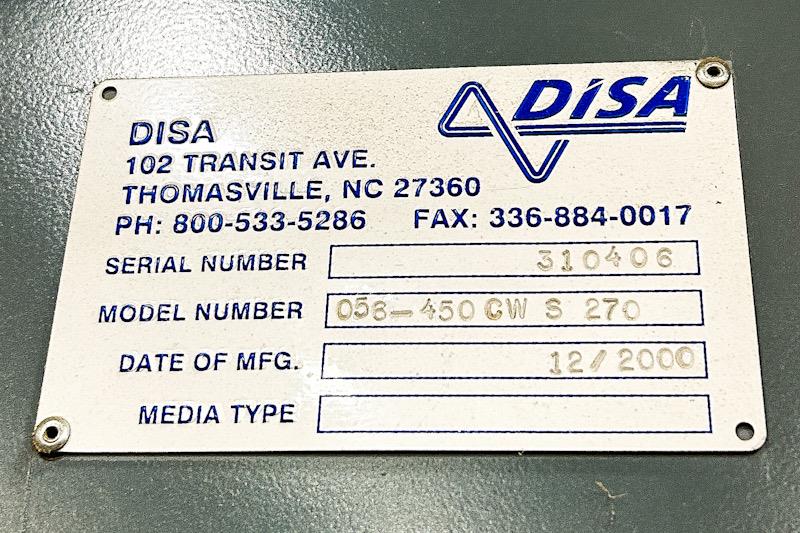

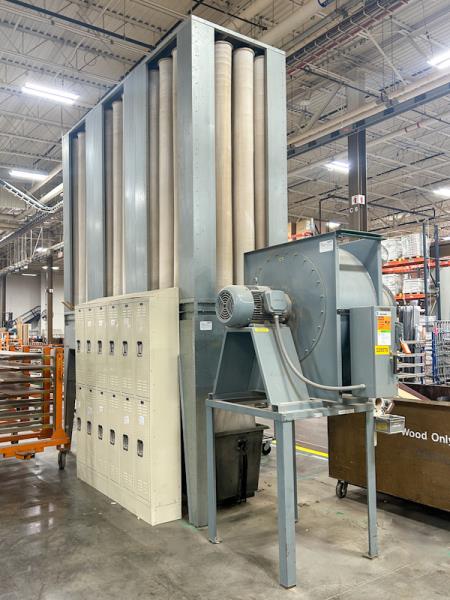

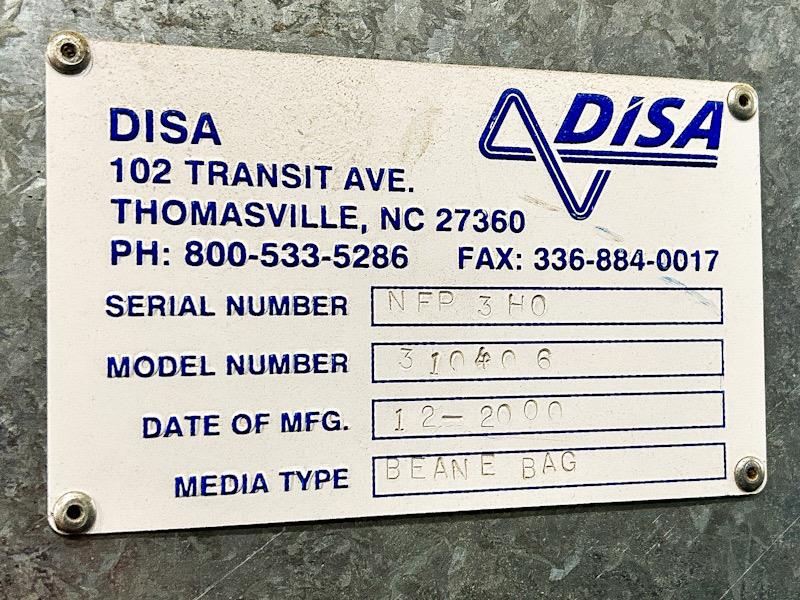

DISA - NFP 3H OPEN: 9,000 CFM, 20 HP Enclosureless Baghouse Dust CollectorSpecifications -- Total filter area: 894 sq/ft.Equipped with: -- DISA "056-450-CW-S-270": 20 HP - 1,755 RPM - 208-230/460 V Dual voltage TEFC blower with: Inlet dia. 450 mm (17.72") & outlet size 16" x 18". -- (48) Approx. 8" dia. x 8' L BEANE media filter bags. -- Trough-style hopper base with: (6) 20" Dia. Discharge openings & Distance from opening to floor 42". -- Galvanized sheet steel frame. -- ALLEN-BRADLEY Switch box with push-button controls.
Inquire Further with Ex-Factory!
