Description

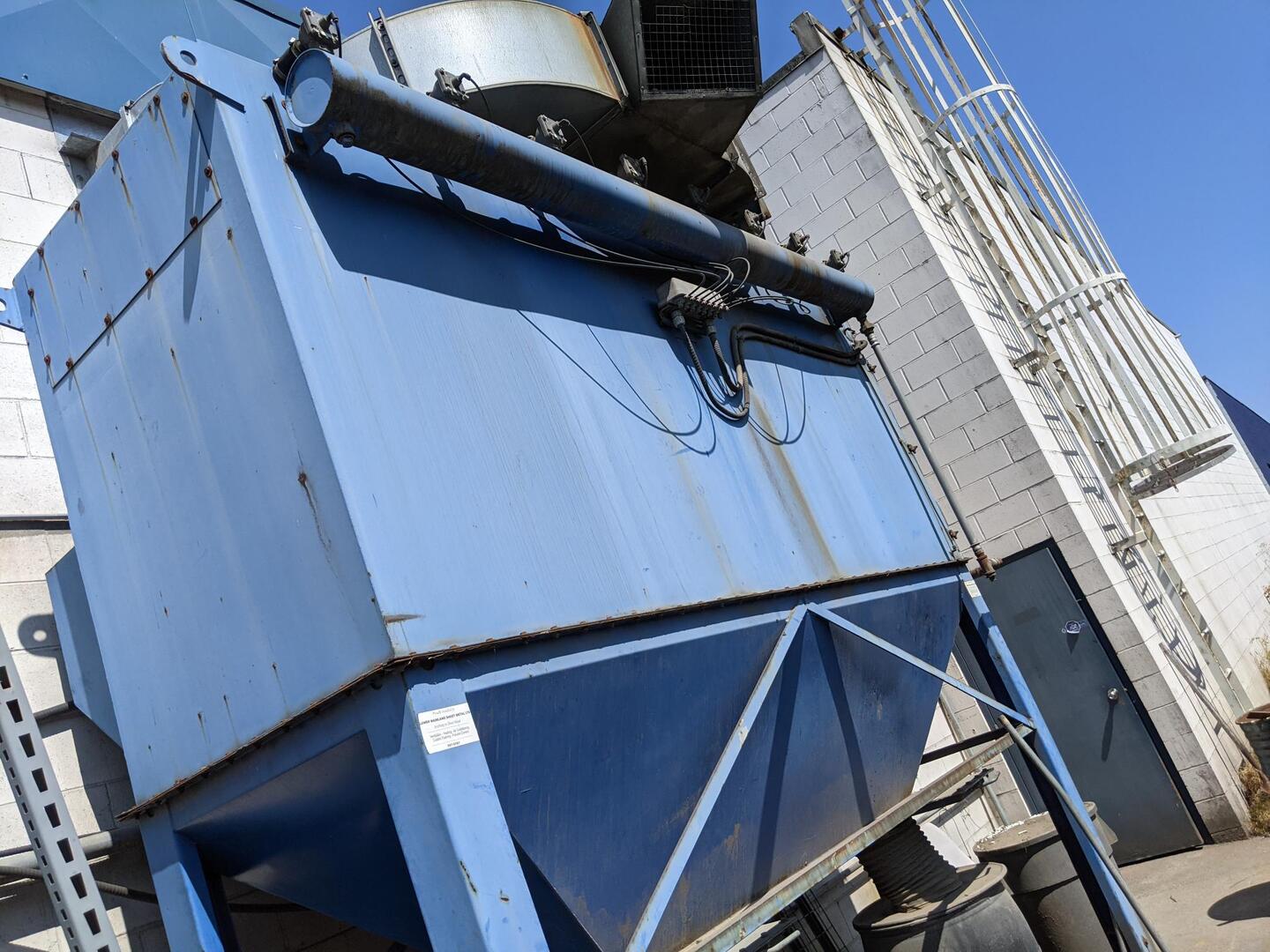

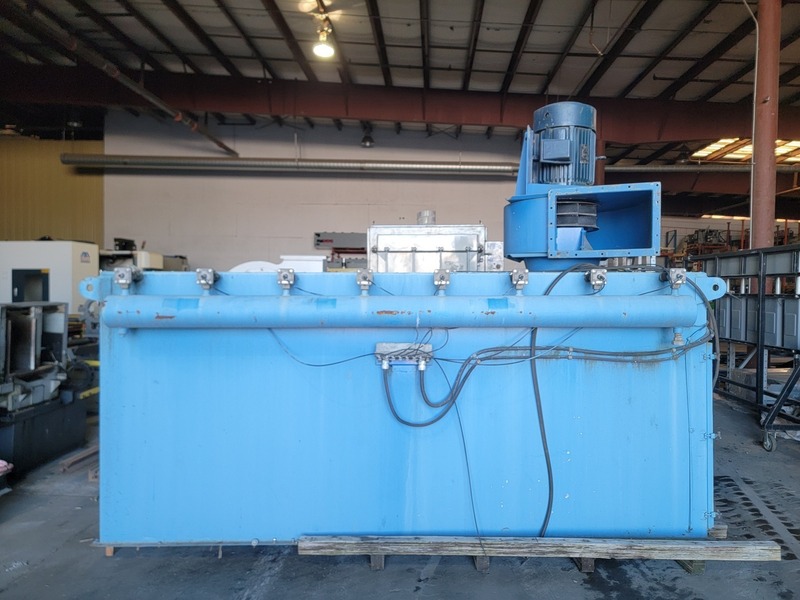

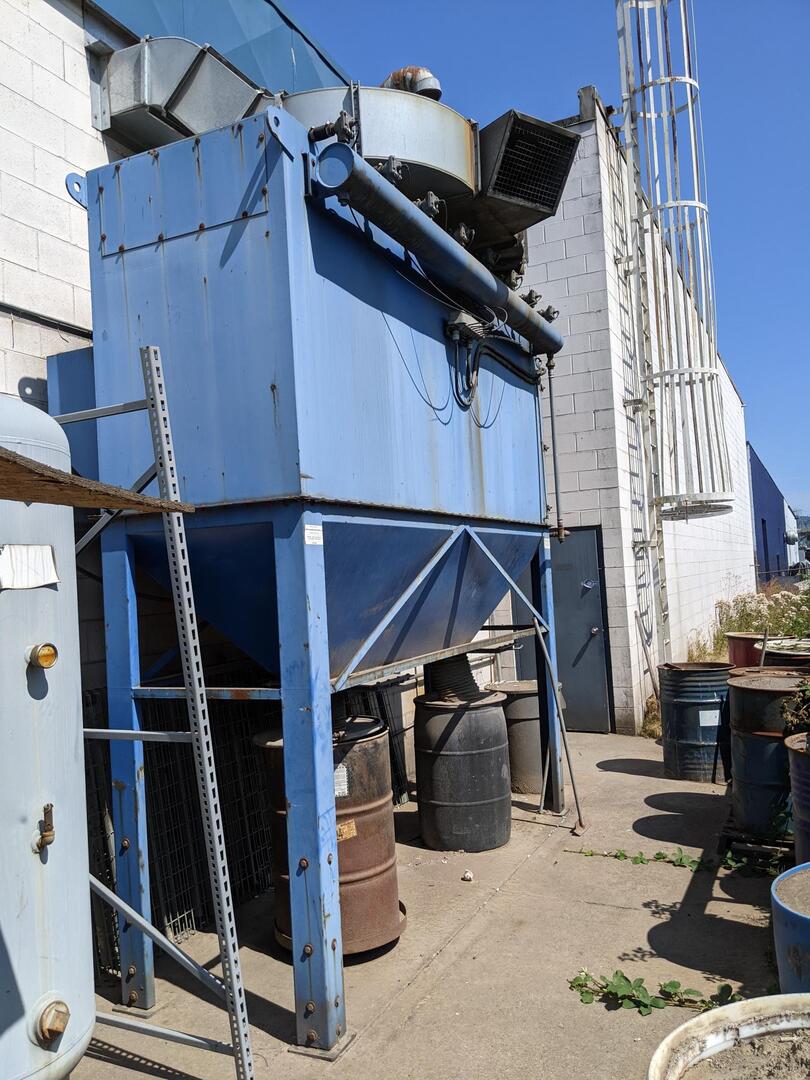

SKU: 148003 Model: 16D Year: 2004 Condition: Used General Specifications: Application: Sandblasting/Abrasives Collection System: Cartridge Horsepower: 25 hp CFM: 9000 cfm Electrical Specifications: Voltage: 575 volts Phase: 3-phase Dimensions: 102.00 (H) x 55.00 (W) x 133.00 (L) inches Additional Description: CFM: Approx. 9,000 CFM Motor RPM: 3560 rpm No. of Filter Cartridges: 16 Nominal Filter Area: 4512 sq. ft. Outlet Rectangular Flanged: 23-3/8" Long OD x 15-7/8" Wide OD Inlet Round Flanged: 16-5/8" ID x 20" OD Rotation: CW viewed at Inlet end. Fan Wheel: 18-5/8" OD x 5-7/8" Total Width x 5" ID Width, Eye 13-3/16" OD
TWO- Donaldson Torit model 81 MBT-8, Used Donaldson 81 mbt-8 dust collector with pulse jet cleaning, Pull thru system, Model 81 MBT-8, Approximate CFM of baghouse 9,000 to 10,000+-, 1039 sq.ft. of cloth filter area, Fans current.: 8000 CFM @14 SP. (other sizes of fans available ), Baghouse top clean air inlet ...more
EXTREMA DB-200 TYPHOON BLOWER. Capacity 20 HP, 8,375 CFM. -- Inlet 16", 26" Impeller, 18" outlet. -- Solid heavy gauge steel construction. -- Heavy duty dynamically balanced steel impeller. -- Rotatable collection port for use in a variety of applications. -- Safety guards on all inlets. - Complete with magnetic ...more
This is a 20HP fan with a primary cyclone filter with a rotary are lock The natural cyclonic air flows allows clean air to pass through the center of the cyclone into the blower and through the secondary filter bags A clean air mounted blower and steel cyclone design provides decades of dust separation without primary ...more
