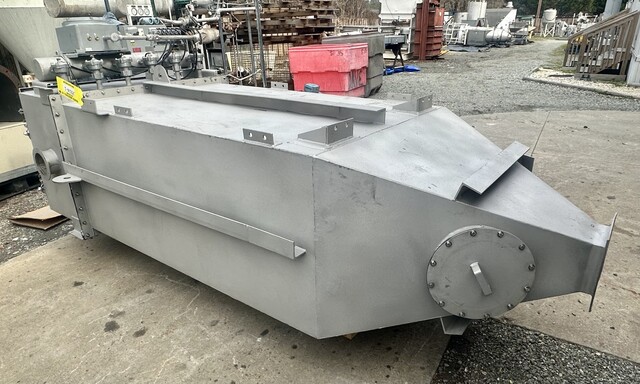

900 cfm Sly #STJ-64-6, Stainless dust collector, 217 sq.ft., top bag removal design, unused, 2022

Description

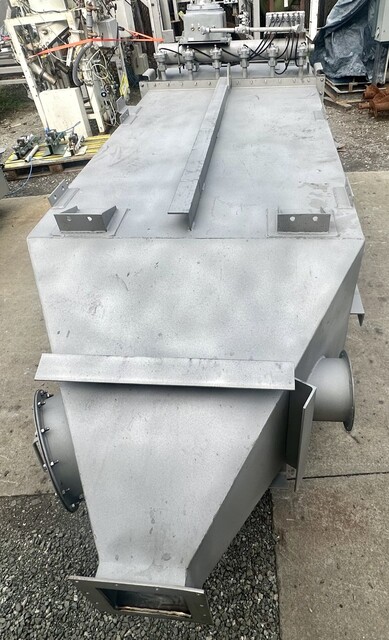

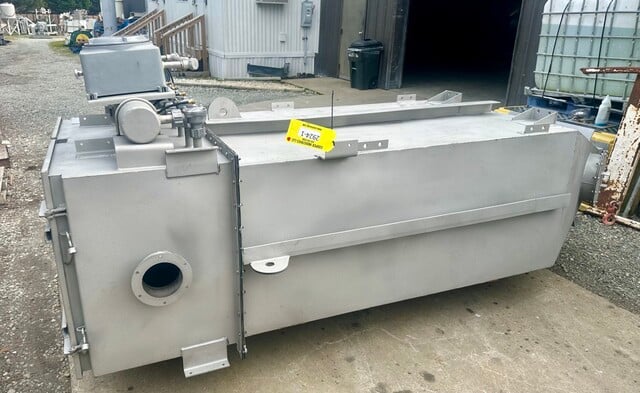

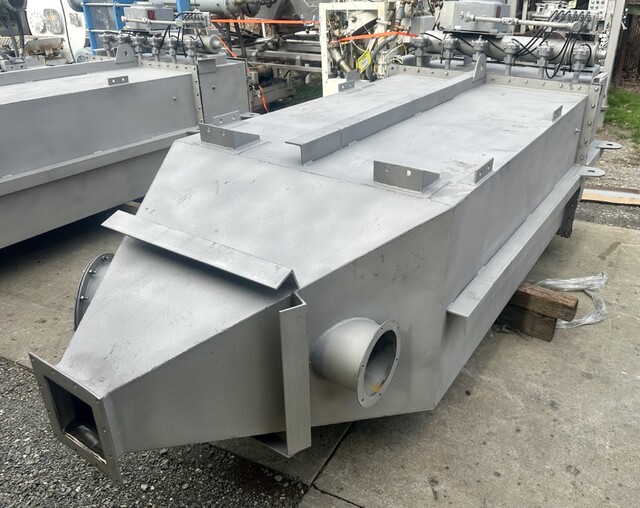

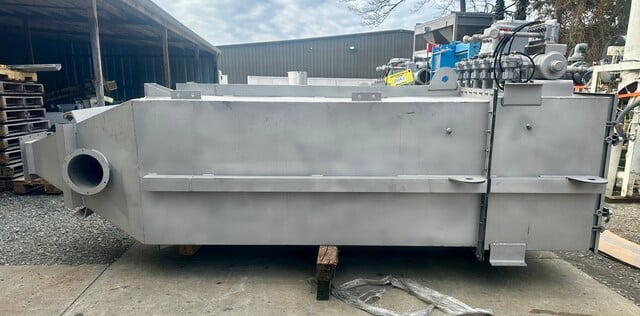

ITEM 2924-1: 217 SQ. FT. UNUSED STAINLESS SLY DUST COLLECTOR MODEL STJ-64-6
UNIT IS UNUSED
MODEL STJ-64-6
SERIAL # 32399
BUILT: 12/2022
TOP BAG REMOVAL DESIGN
217 SQUARE FEET OF FILTER AREA. ORIGINAL DESIGN WAS FOR 900 CFM OF CARBON COATED GRAPHITE DUST AT 175°F, ± 20″ W.G.
DEPENDING ON AIR TO CLOTH RATIO DESIGN THIS COLLECTOR COULD BE USED FOR UP TO 1500 CFM.
316 AND 316L STAINLESS STEEL MILL FINISH CONSTRUCTION FOR CLEAN AIR AND DIRTY AIR SIDES. EXTERNAL STRUCTURES ON THE COLLECTOR ITSELF ARE ALSO STAINLESS
VITON DOOR GASKETS

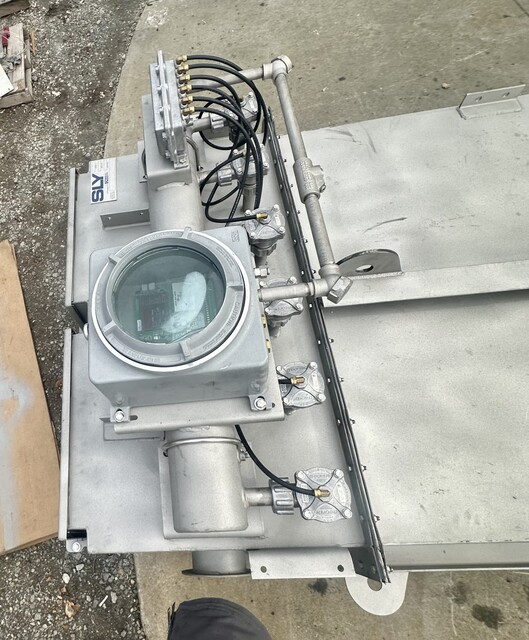

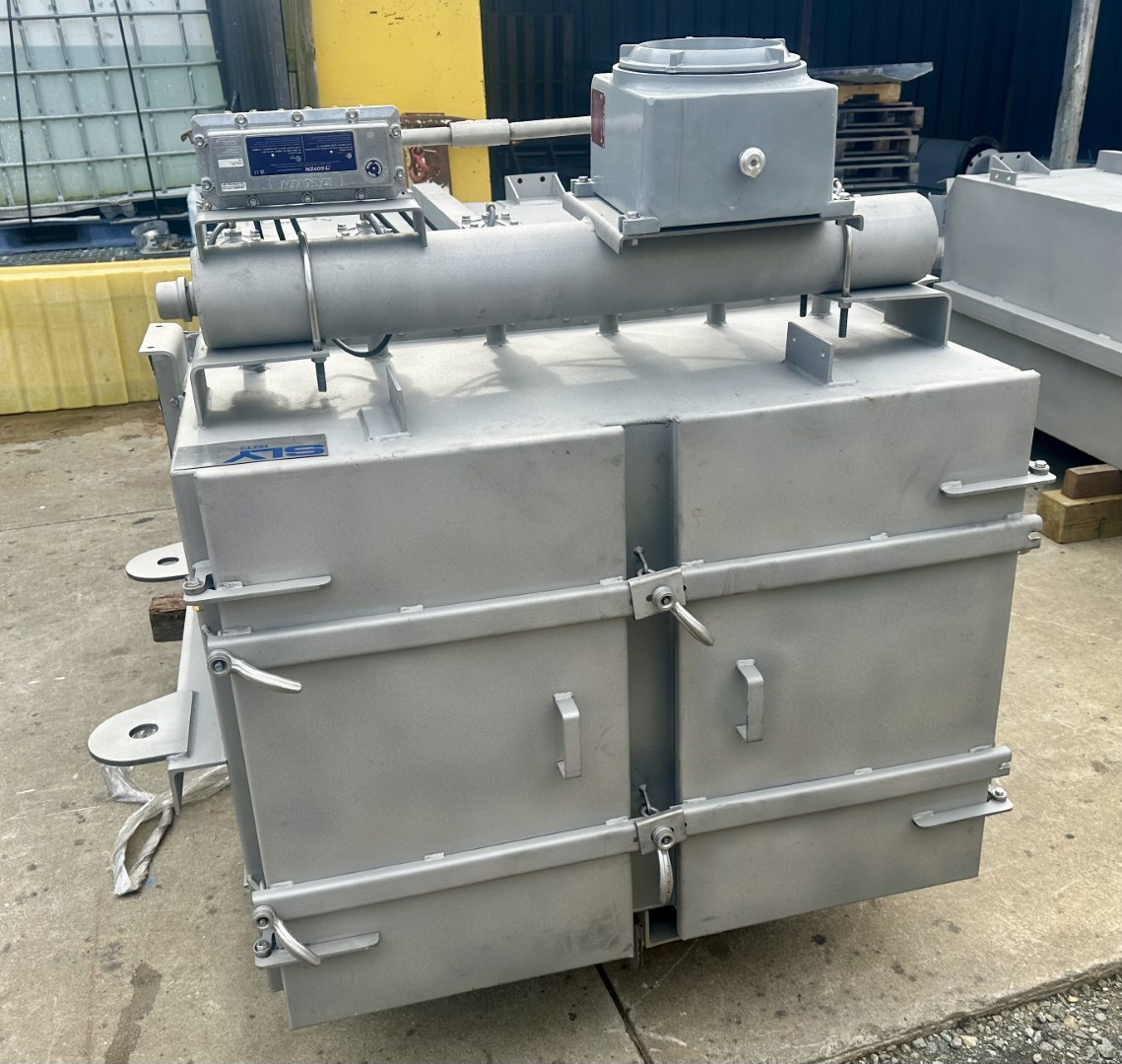

NEMA 7/9 CONTROL ENCLOSURE W/ MP-404-6 SEQUENCE TIMER W/ PRESSURE MODULE
~ 0-10″ W.G. (MOUNTED & WIRED TO SOLENOIDS BY SLY W/ RIGID CONDUIT) ~ 1/60/120
VAC POWER.
SAFETY CAGE, LADDER, PLATFORM WITH AUTO CLOSE GATE AND HANDRAIL FOR TOP ACCESS FOR BAG REMOVAL.
GOYEN AIR SOLENOIDS MODEL RCA3-6VFD
11’ 2” OVERALL LENGTH (WITHOUT LEGS)
20’- 4” OVERALL HEIGHT WITH LADDER AND HANDRAIL AND CAGE
32” x 48” COLLECTOR WIDTH AND DEPTH

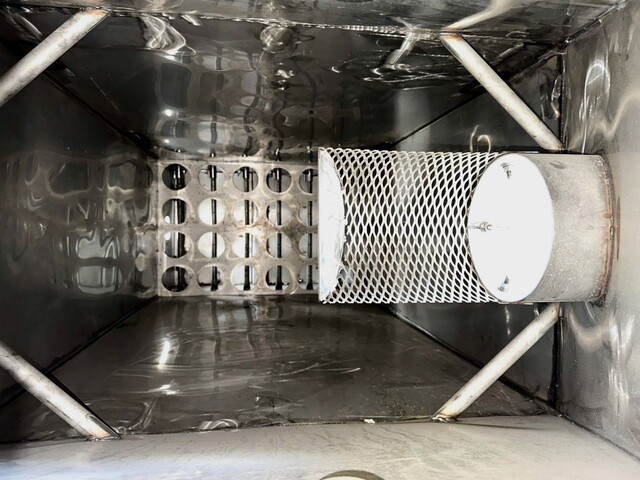

9’- 2” BELOW TUBE SHEET
8” DIAMETER DIRTY AIR INLET
8” x 8” BOTTOM OUTLET
6” DIAMETER CLEAN AIR OUTLET

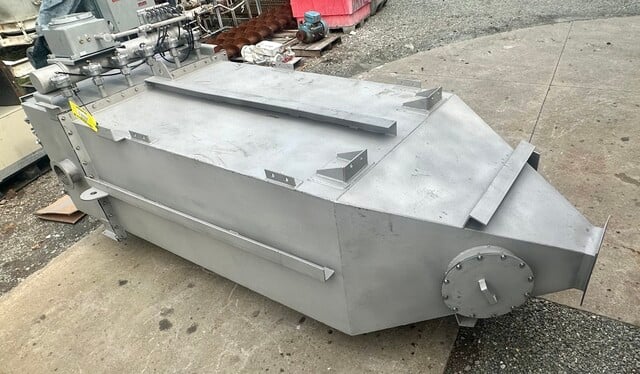

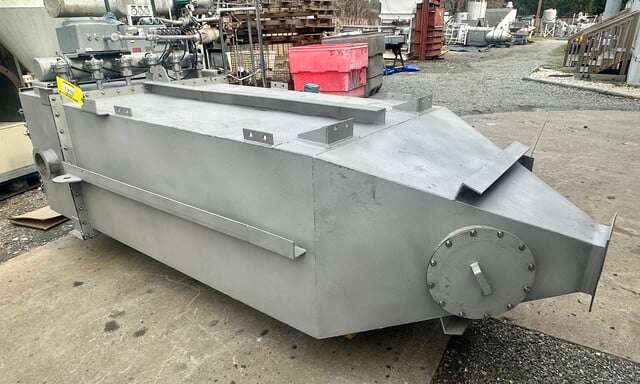

14 ½” DIAM ACCESS HATCH
EXPLOSION PROOF TIMER – SOLENOID BOX
COMPLETE WITH CAGES.
DRAWING ON FILE.
