90 Ton, Cincinnati #90CB, hydraulic press brake, 10' overall, 102-3/4" between housing, 8" stroke, 7" throat, 1994

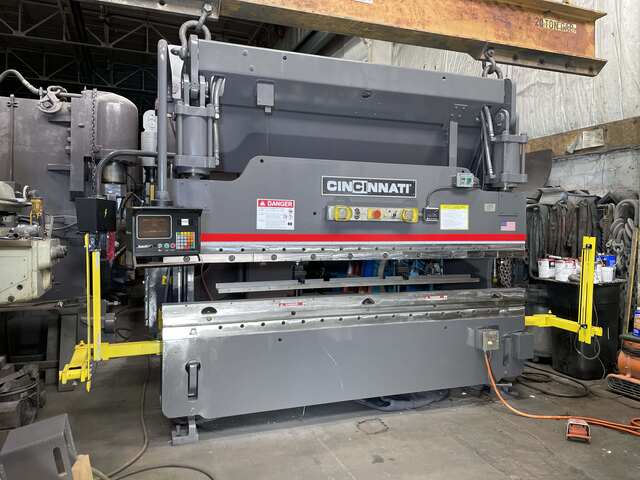

Pre Owned Cincinnati Model 90CB Hydraulic Press Brake
Serial Number 48147 New 1994
GENERAL SPECIFICATIONS
Capacity 90 TONS
Overall Length of Bed & Ram 10’
Distance Between Housings ` 8’6 3/4”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 260 Inch Per Minute
Form 10-20-80 Inch Per Minute
Return 280 Inch Per Minute
Width at Top of Bed 3 ½”
Main Motor Horsepower 15
EQUIPPED WITH

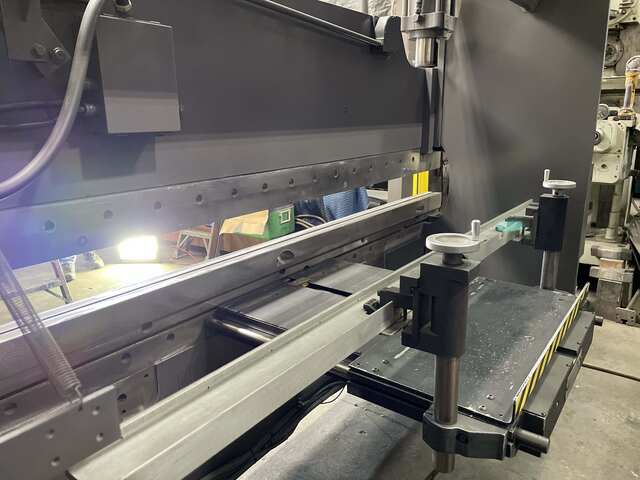

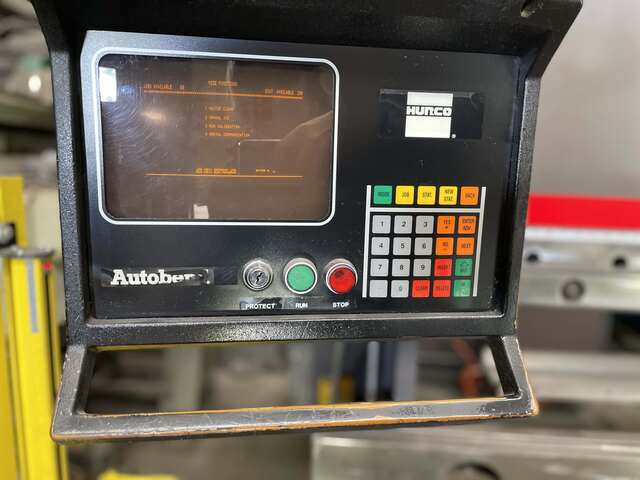

Hurco Autobend 2 Axis Back Gauge
Pinnacle / Lazsesafe Safety Curtain System
Variable Tonnage
Filler Block
Electric Foot Switch
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 16500 Lbs
Approximate Overall Dimensions 12’6.5” L X 50”FB X 110” H
