Click to zoom in
For Sale by Smith Machinery Co
Surplus Record Dealer Since 2001
Location: Ames, IA
Contact Jim Smith
Phone Number: 515...> Show Phone Number 515-233-6330
Let the seller know you found their listing on Surplus Record!
Description
Specifications
Equipped With
Equipped With

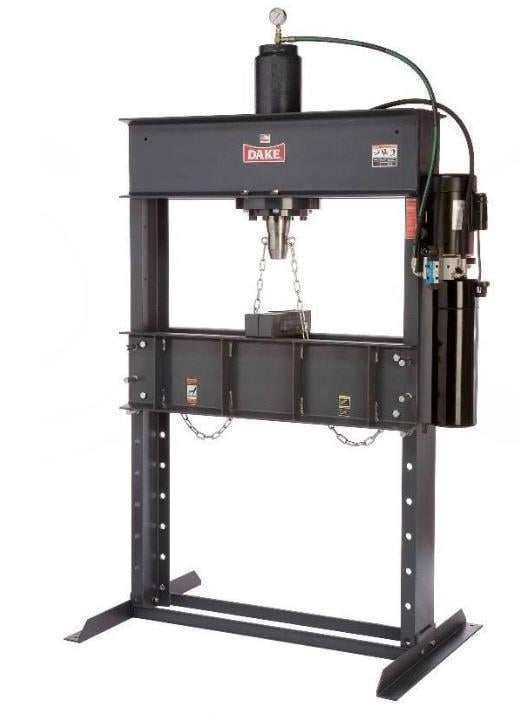

| Machine Type | H-frame hydraulic powered |
| Capacity | 90 tons |
| Ram Travel | 16 inches |
| Ram Pressing Speed | 11 i.p.m. |
| Horsepower | 2 HP |
| Hydraulic Pump | Combination power unit |
| Controls | On/Off switch with joystick hydraulic control |
| Oil Capacity | 3 U.S. gallons approx. |
| Weight | 1550 pounds |
| Overall Height | 88 inches |
| Base Width | 55 inches |
| Depth | 36 inches |
| Width Between Uprights | 44 inches |
| Maximum Ram to Table | 41.75 inches |
| Voltage | Available 110-volt/220-volt 1-phase (Machine should be wired to main service by a qualified Electrician) |
| AMP | 20-amp service for 110-volt machine |
| Operating Temperature | No special operating temperature level |
Equipped With
Equipped With
FEATURES:
• Made in the U.S.A.
• 110/220-volt single-phase motor with plug makes for greater portability.
• Welded steel frame for rigidity.
• Low operating pressures. Pressure gauge
• Double acting cylinder.
• Fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.
• Heavy adjustable table can be set to a comfortable work height via lifting chains and workhead. Massive table pins keep table securely in place during the pressing operations.
• Pressure preset and locked out at factory for maximum pressing, Safety relief valve
• The motor is a powerful 2 HP power unit for study quiet oil flow.
• 4-Way valve with joystick control operation for easy one hand machine operation.
• Two steel table plates
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Dual push button and pedestal for two handed operations: $Request pricing
DELIVERY:
SUBJECT TO STOCK
• Made in the U.S.A.
• 110/220-volt single-phase motor with plug makes for greater portability.
• Welded steel frame for rigidity.
• Low operating pressures. Pressure gauge
• Double acting cylinder.
• Fast, quiet, dependable, economical price, smooth operating press that is very simple to operate.
• Heavy adjustable table can be set to a comfortable work height via lifting chains and workhead. Massive table pins keep table securely in place during the pressing operations.
• Pressure preset and locked out at factory for maximum pressing, Safety relief valve
• The motor is a powerful 2 HP power unit for study quiet oil flow.
• 4-Way valve with joystick control operation for easy one hand machine operation.
• Two steel table plates
NOTES:
SPECIFICATIONS SUBJECT TO VERIFICATION
OPTIONAL FEATURES:
Dual push button and pedestal for two handed operations: $Request pricing
DELIVERY:
SUBJECT TO STOCK
