For Sale by Aleco Machinery Sales
Description

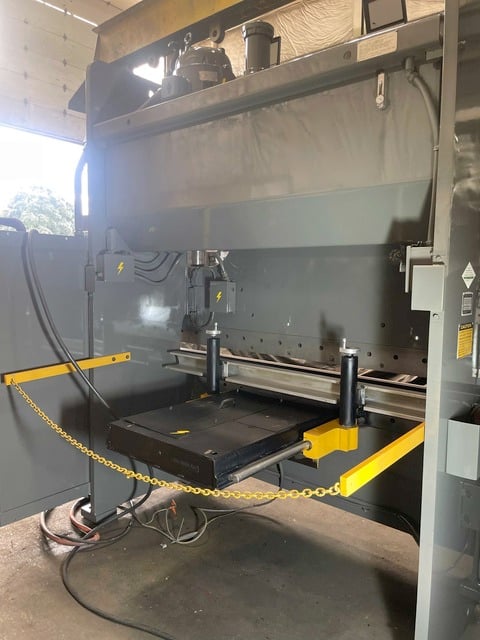

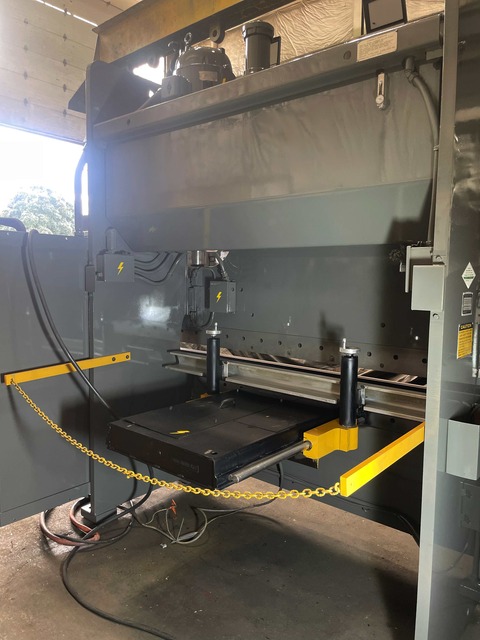

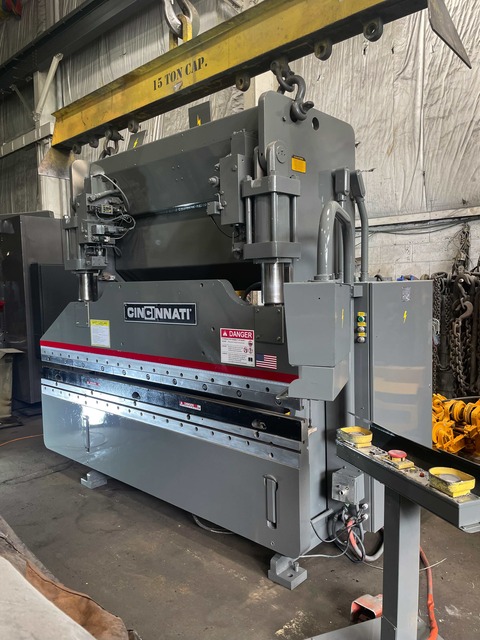

- Pre Owned 90 Ton Cincinnati 90 FMII Hydraulic Press Brake
GENERAL SPECIFICATION
Capacity 90 TONS
Overall Length of Bed & Ram 10’
Distance Between Housings ` 6 ’6 3/4”
Stroke 8”
Open Height 15”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 290 INCH PER MINUTE
Form 1 - 80 INCH PER MINUTE
Return 1 - 270 INCH PER MINUTE
Back Gage Speeds X- AXIS’, 1200 INCH PER MINUTE
Width at Top of Bed 4 ½”
Main Motor Horsepower 25
CONTROL FEATURES

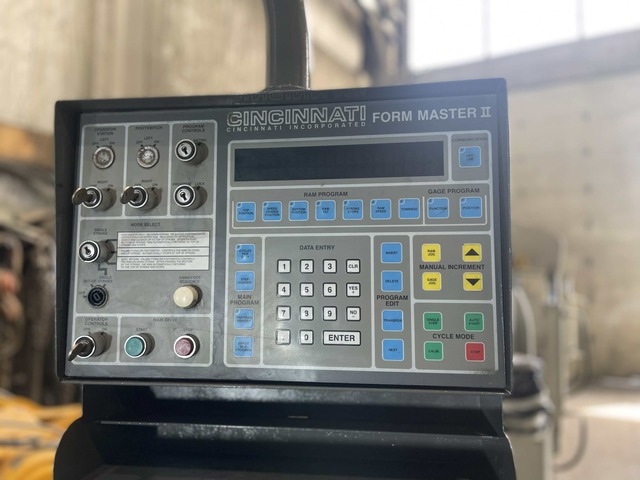

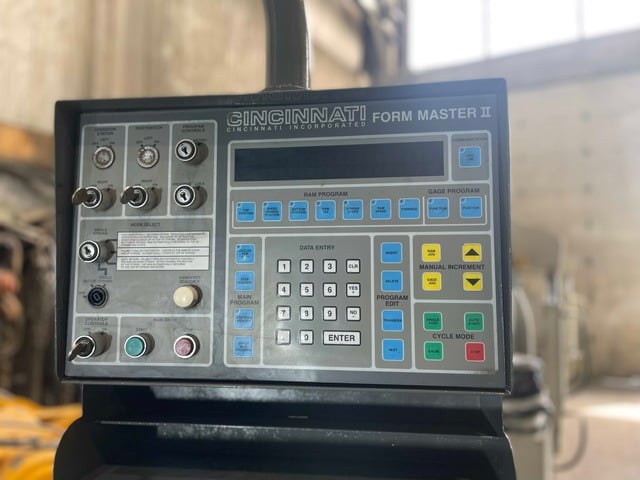

FMII Pendant Mounted Multi-Axis Control
Programmable Forming Speeds
Programmable Ram Opening
Programmable Reversal
Programmable Tonnage
Control Diagnostics
Tool Library
EQUIPPED WITH
24” Programmable Back gage (X 1, X2)
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation
Variable Volume Load Sensing Pump And Servo Hydraulic System
Programmable Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction
Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 16500
Approximate Overall Dimension 10” L X 121.5’ H X 58” W
Get Your Price from Aleco Machinery Sales!
