For Sale by Aleco Machinery Sales
Description

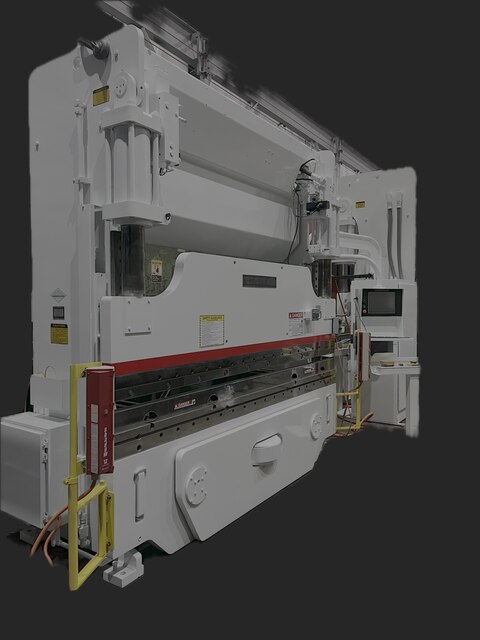

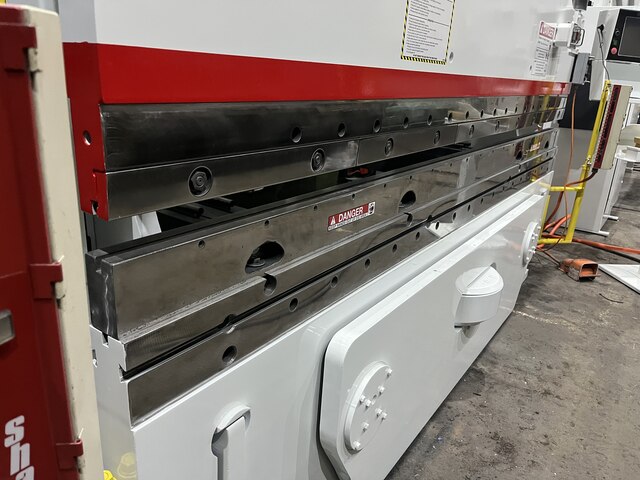

- Pre Owned 90 Ton Cincinnati 90 FMII Hydraulic Press Brake
GENERAL SPECIFICATION
Capacity 90 TONS
Overall Length of Bed & Ram 10’
Distance Between Housings ` 8 ’6 3/4”
Stroke 14”
Open Height 21”
Closed Height 7”
Throat Clearance 7”
Speeds
Approach 290 INCH PER MINUTE
Form 1 - 80 INCH PER MINUTE
Return 1 - 270 INCH PER MINUTE
Back Gage Speeds X- AXIS’, 1200 INCH PER MINUTE
Width at Top of Bed 4 ½”
Main Motor Horsepower 25
CONTROL FEATURES

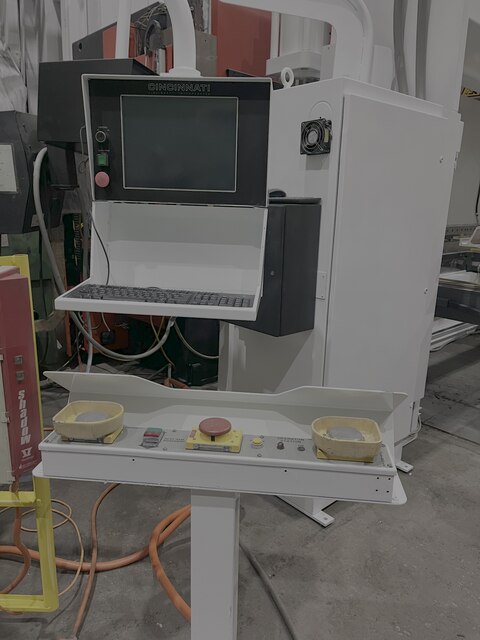

Cincinnati PC Pendant Mounted Multi-Axis Control
Programmable Forming Speeds
Programmable Ram Opening
Programmable Reversal
Programmable Tonnage
Control Diagnostics
Tool Library
EQUIPPED WITH

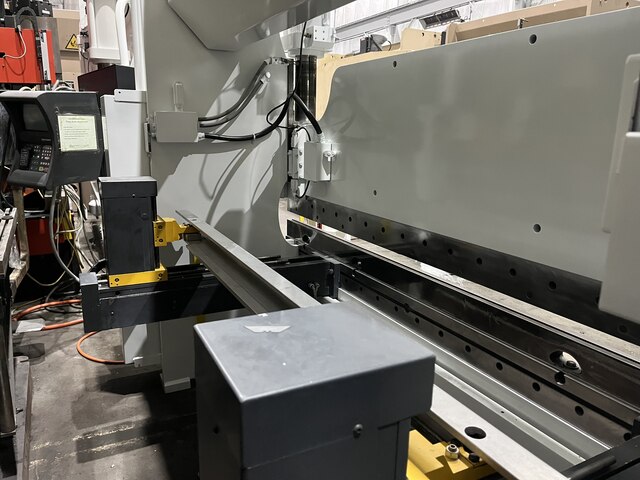

24” Two Axis Programmable Back gage (X1, X2, R)
Autocrown Deflection Compensation
Precision Ram Leveling With Dual Linear Glass Scale Encoders
Off Load Center Compensation

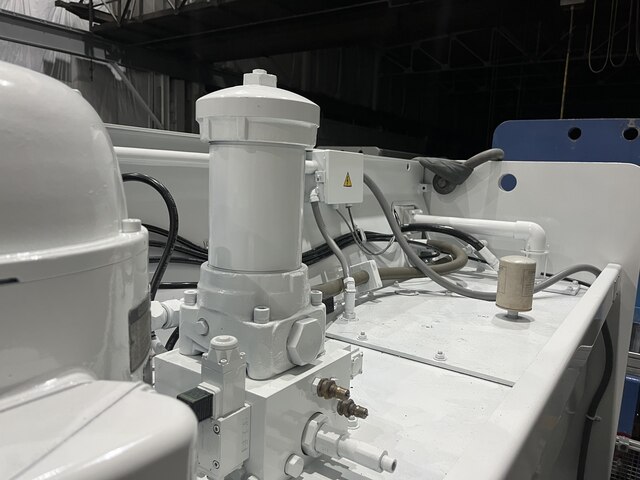

Variable Volume Load Sensing Pump And Servo Hydraulic System
Programmable Electric Foot Switch
Pedestal Palm Button Station
Manuals
Interlocked Construction

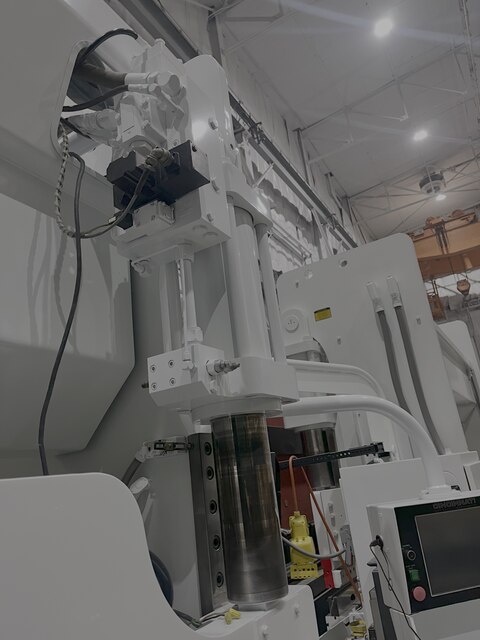

Clevis Mounted Self Aligning Cylinders
Approximate Overall Weight 16500
Approximate Overall Dimension 10” L X .122 “H X 58” W
Get Your Price from Aleco Machinery Sales!
