9" x 9" Hydmech #H-230A, Horizontal Band Saw, 50-350 SFM, 9' 8" x 1" Blade, 0-19" Multi-Indexing, 2.5" L Remnant, 35" H Table, 3 HP, 480 V, new

Description

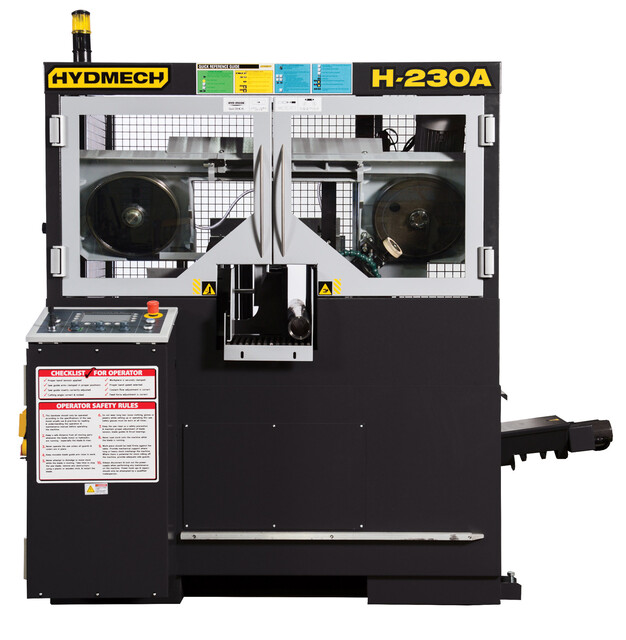

Hydmech 9″ x 9″ Horizontal Band Saw, H-230A

Inventory # 9069

Model: H-230A

Description:

The H-230A has the smallest footprint of Hydmech’s automatic horizontal band saws

It’s split front vise for material clamping results in less burr on cut pieces. The machines controller can be easily programmed, storing up to 10 different cutting jobs with 5 in queue and features several different cutting modes

Equipped with a shuttle feed, its shuttle vise assembly is capable of high speed material indexing up to 19″ in a single stroke. Driven by a stepper motor controlled by a ball screw assembly, the H-230A provides quick, accurate cuts

Specifications:

Capacity:

90°:

Rectangular: 9″ x 9″

Round: 9″

Blade Size: 9′ 8″ x 1″

Blade Speed: 50 – 350 SFM

Automatic Multi-Indexing: 0 – 19″

Remnant Length: 2 1/2″ (6″ with Bundling)

Table Height: 35″

Motor: 3 HP / 480v / 3ph (208v, 240v, or 575v power sources will require a transformer)

Standard Features:

Heavy-duty cast iron saw head

Split front vise allows for short 2 1/2″ remnant length

Cast iron shuttle features automatic multi-indexing up to 19″ in a single stroke with automatic kerf compensation. Powered by ball screw and stepper motor

On-demand hydraulics

Steel guide arms. The idler side guide arm is mechanically connected to the front vise moveable jaw for proper guide arm spacing at all times

Variable vise pressure

3HP VFD. True direct blade drive – no belts/pulleys

Full capacity, full stroking hydraulic vises

Hydraulic-positive down feed

The blade chamber separates the material from the cut part

Cast iron band wheels

Automatic PLC, touch screen control programmable up to 20 jobs with 5 in queue

Replaceable blade brush

Robust steel base

Automatic chip removal auger

Blade breakage switch

Easy access to electrical panel and hydraulics

Designed for safety with a saw-in-a-box style

Out-of-stock switch

Mechanical band tensioning with digital readout

Replaceable carbide guide inserts

Safety door interlocks

Flood coolant with wash wash-down hose

Vertical rollers

Laser light and work light

Mechanical Specifications:

Dimensions: 63″ x 61″ x 67″ H

Weight: approx. 2,200 lbs.

FOB Factory – Contact us for Availability
