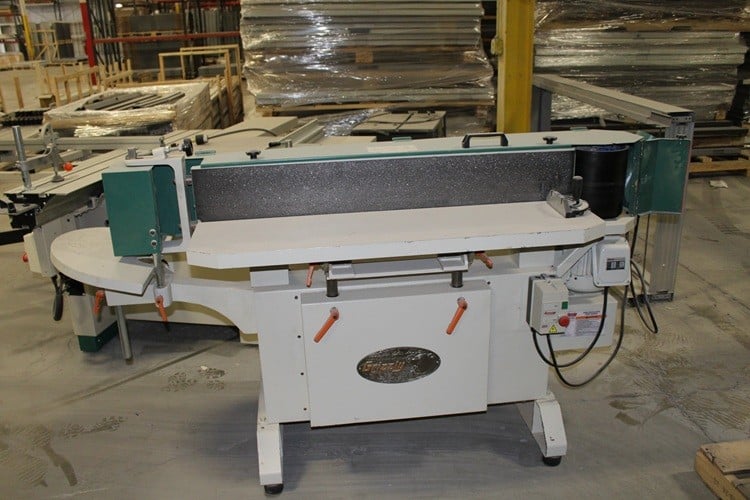

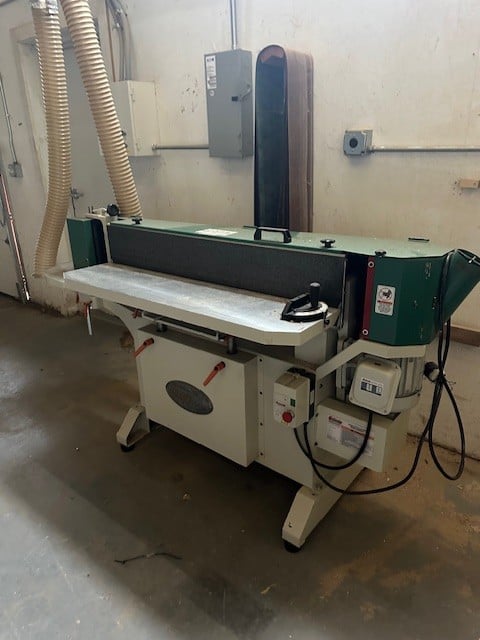

9" x 138-1/2" Grizzly #G9984, oscillating edge sander

The G9984 9" x 138-1/2" Industrial Oscillating Edge Sander is the ideal solution for tackling your toughest edging jobs. This heavy-duty machine boasts a massive sanding head and extensive table travel to accommodate large workpieces.

The spacious 11-3/4" x 47-3/4" table tilts 0-45 degrees for sanding at various angles. An additional end table provides further support for long pieces. Both tables offer 8" of travel for exceptional control.

The 1/4" belt oscillation minimizes sanding marks and extends belt life for smoother finishing.

Belt tracking is as easy as turning the belt tracking adjustment knob.

With heavy-duty construction, the G9984 features a cast-iron base and a graphite-coated platen for long-lasting durability.

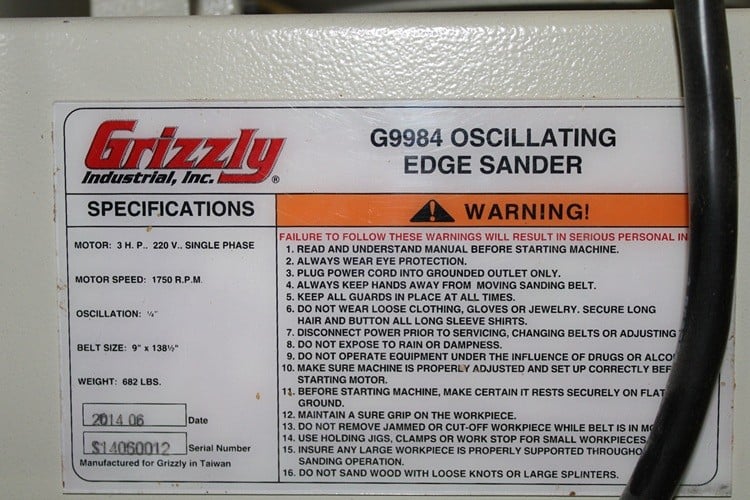

SPECIFICATIONS:

• Motor: 3 HP, 220V, single-phase, 15A
• Sanding belt size: 9" x 138-1/2"
• Sanding belt speed: 4120 FPM
• Oscillations: 1/4"
• Platen: Graphite-coated, 47-1/2" x 9-1/2"
• Main table size: 11-3/4" x 47-3/4"
• Main table vertical travel: 8"
• Main table tilt: 0–45°
• End table size: 18" x 13"
• End table travel: 8"
• Number of dust ports: 2
• Dust port size: 4"
• Footprint: 42" x 24-1/2"
• Overall dimensions: 82" W x 24" D x 45-1/2" H
• Approximate shipping weight: 873 lbs.

FEATURES:

• Sanding belt oscillates 1/4"
• Quick-release belt lever
• Fully-adjustable belt tracking and tension
• Magnetic switch
• 8" vertical table height adjustment
• Table tilts 45°
