Description

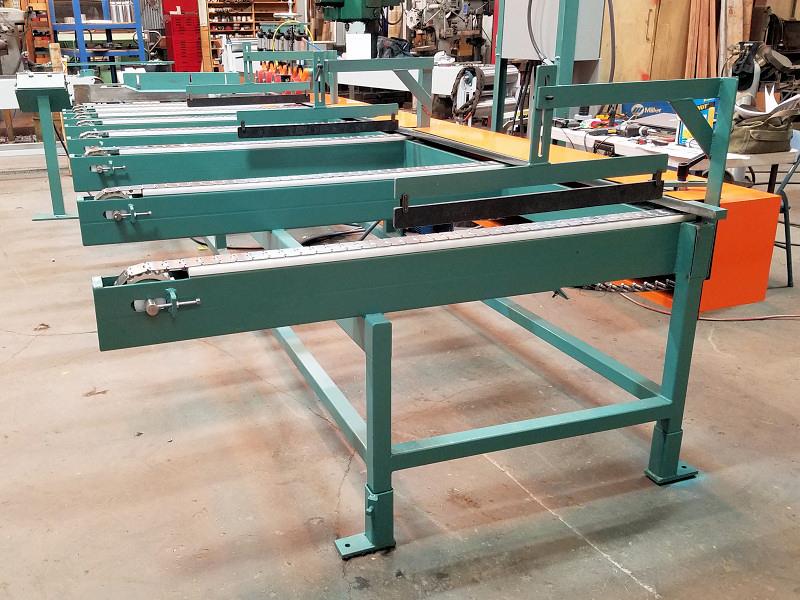

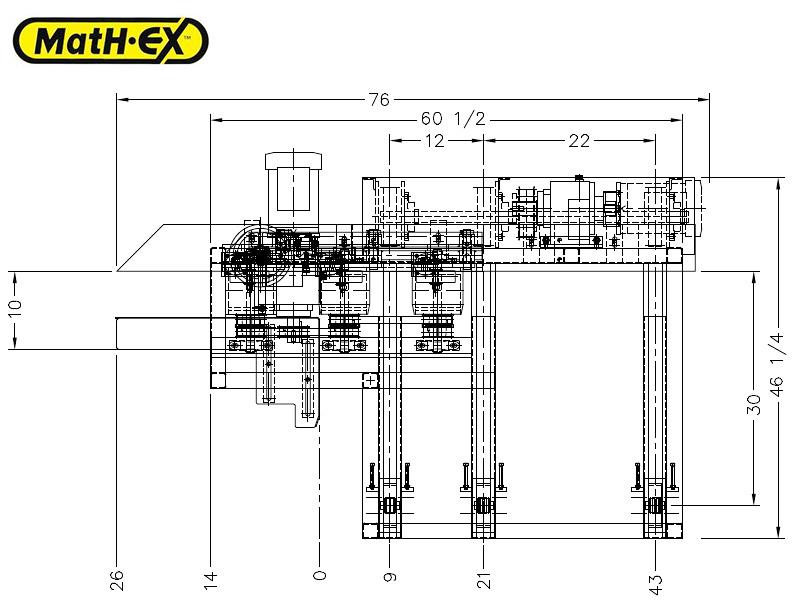

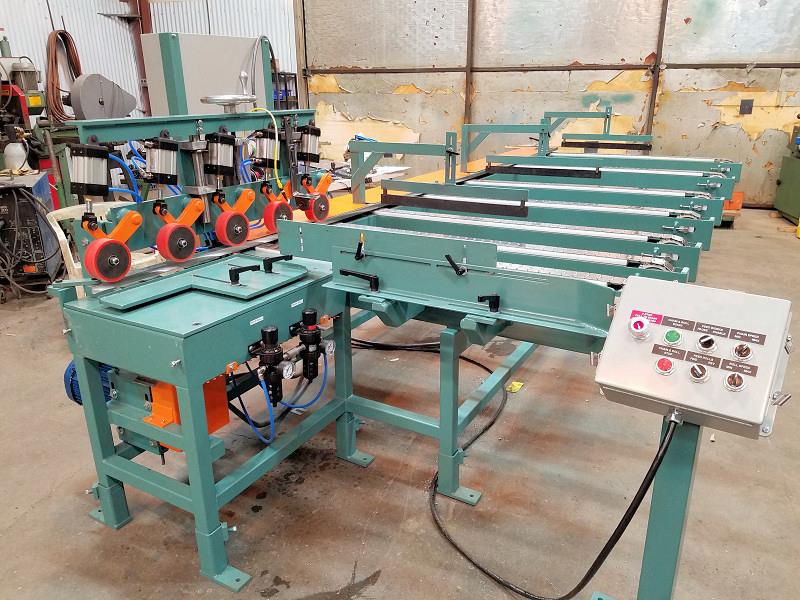

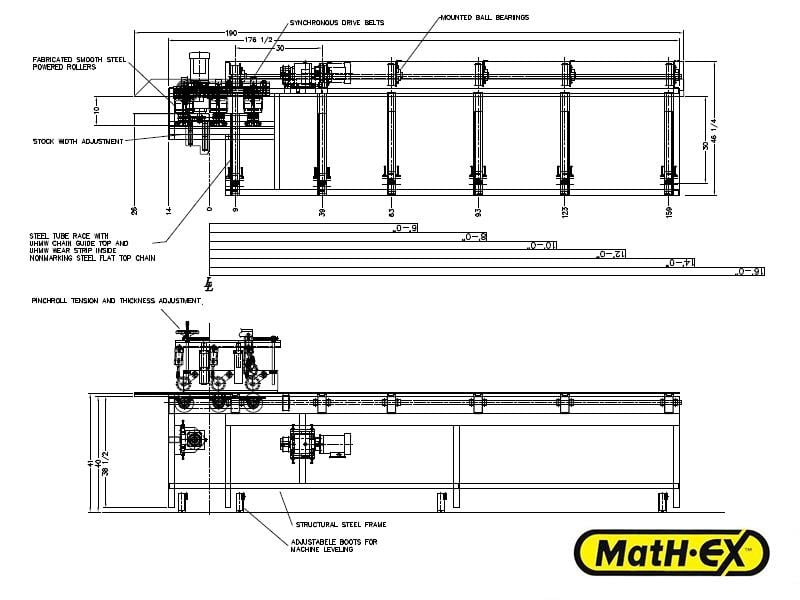

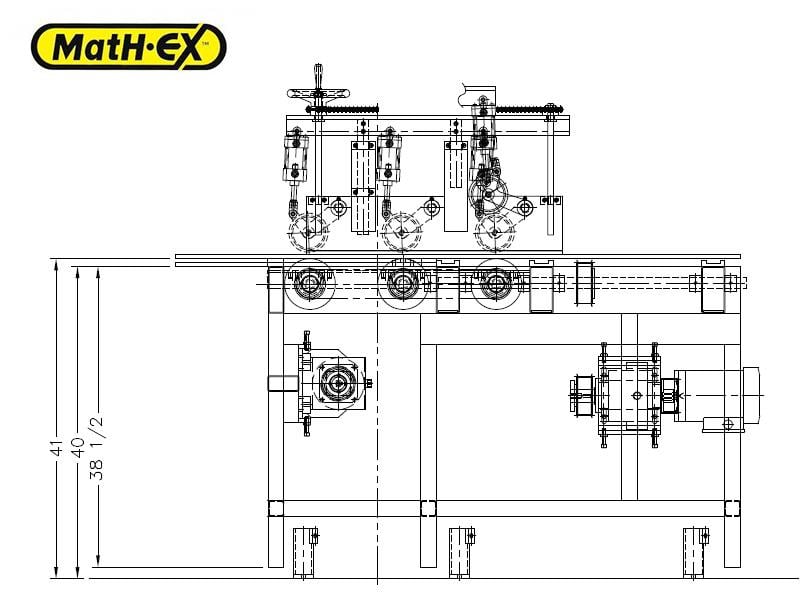

MATH-EX CMS 16' LATERAL CHAIN FEED TABLE with the following:Specifications: -- Lateral chain feed table will feed material 1-1/2" wide min, up to 9" wide, maximum. The stock length is 12" to 16' and from 1/4" to 4-1/2" thick. -- Feed rate is variable from 50 to 600 FPM. The powered feed rollers are driven by a 3 HP gear-motor. -- Powered infeed chains are driven by a 1-1/2 HP gear-motor. -- Rolls and chains are controlled by AC Adjustable Frequency Drives. -- Fence is adjustable throughout a 3/4" range for alignment with downstream equipment. -- 50" long low friction stainless steel flat top infeed chains provide long life and non-marking transportation. -- (3) or (5) Powered feed rolls are smooth steel and allow non-marking transport of materials. -- (3) or (5) Pinch rollers are 5" diameter Urethane. The pinch rollers are powered by individual 2-1/2" bore air cylinders to singulate pieces. -- (2) Pinch rolls singulate pieces into the bridge, and (1) pinch roll keeps the board moving on the bridge. Pinch rolls are triggered by photoelectric cells.
DOUCET MFE 300 Lateral chain feeder for moulders and optimizers -- 3'0" x 16'-0" working deck for material length 2'0" - 16'0"; width 2" to 9.5" and thickness 1/2" to 4". -- Feed system: Hydraulic variable speed 50-300 FPM with a 20 HP power unit. In-feed (4) roller accelerator; (2) top steel rollers ...more
26ft Drag chain conveyor, box chain conveyor, 26ft long box chain conveyor, width 14inch inside X 16 inches tall, bottom of trough is lined with nylon/plastic, 5HP Teco gear box 45 RPM output shaft, prior use was sawdust/wood waste and was inside of building, conveyor is removed and shipped in one piece, call for a ...more
